Neomounts FPMA-HAC100 Medical monitor arm ceiling 10-24" - h 0-170 cm - gas spring
- Brand
- NEOMOUNTS
- Product code
- FPMA-HAC100
- SKU
- VIAY504I7G2V8
- EAN/GTIN
- 8717371441081
- Maximum weight capacity: 6 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 61 cm (24")
- Number of displays supported: 1
- Mounting type: Ceiling
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Aluminium White
Product Info

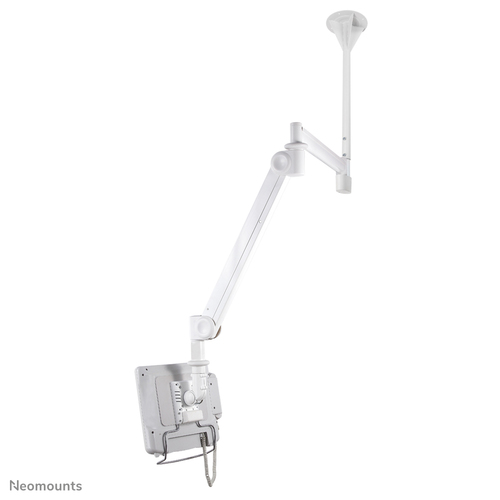

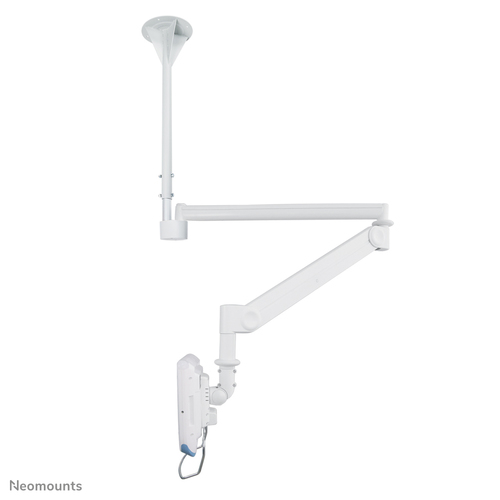

The Neomounts ceiling mount, model FPMA-HAC100 is a tilt- and swivel ceiling mount for medical flat screens up to 24". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAC100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
|---|---|
| Maximum weight capacity | 6 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 61 cm (24") |
| Mounting type | Ceiling |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Distance to the wall (max) | 170 cm |
| Maximum distance to ceiling | 170 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 - 1700 mm |
| Depth adjustment range | 0 - 1890 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 55° |
| Swivelling | Yes |
| Swivel angle | 370° |
| Rotating | Yes |
| Number of pivot points | 3 |
| Design | |
| Housing material | Aluminium |
| Product colour | White |
| Weight & dimensions | |
| Depth | 1890 mm |
| Height | 1700 mm |
| Weight | 13.6 kg |
| Packaging data | |
| Package width | 1250 mm |
| Package depth | 390 mm |
| Package height | 390 mm |
| Package net weight | 13.9 kg |
| Package weight | 13.9 kg |
| Logistics data | |
| Master (outer) case width | 1250 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 18.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 13.9 kg |
| Harmonized System (HS) code | HS83025000 |
| Products per pallet (EU) | 4 pc(s) |
