Neomounts WL30-750BL18 Heavy duty wall mount 43-98" - fixed - lockable - fast installation - TÜV
- Brand
- NEOMOUNTS
- Product code
- WL30-750BL18
- SKU
- 1TU1NVI4FM1NS
- Maximum weight capacity: 125 kg
- Minimum screen size: 109.2 cm (43") Maximum screen size: 2.49 m (98") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 800 x 600 mm
- Number of displays supported: 1
- Height adjustment
- Cable management
- Steel Black
Product Info

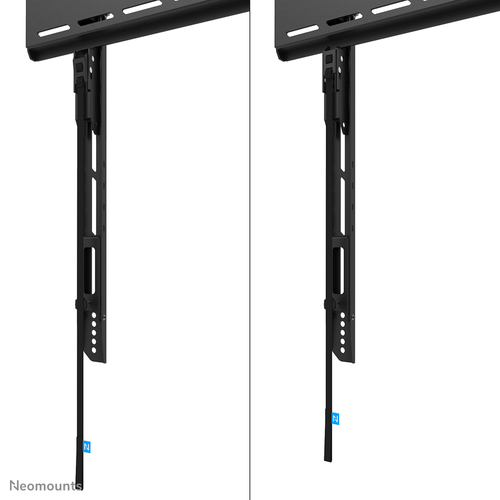

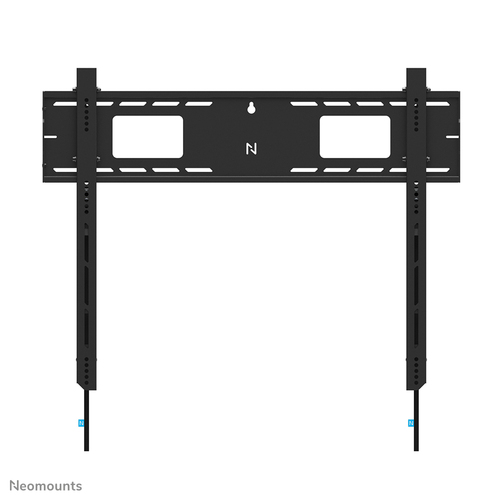

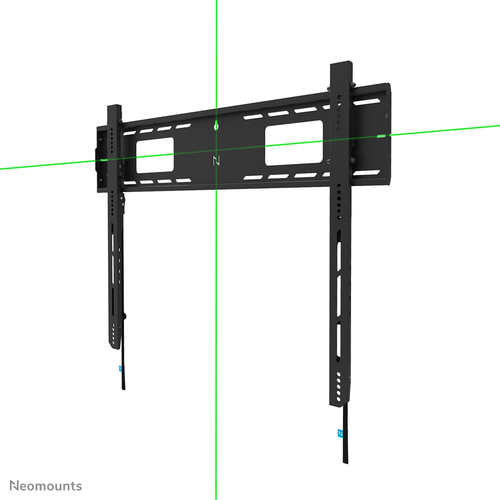

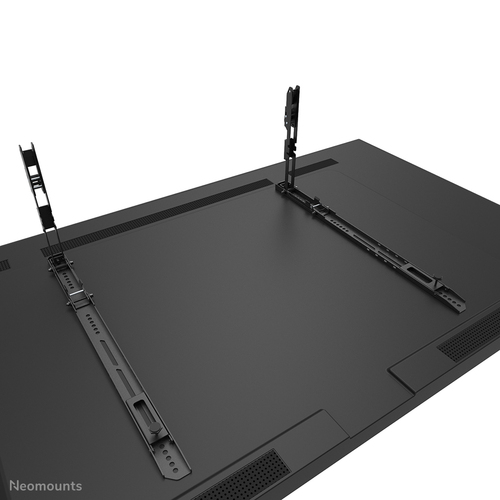

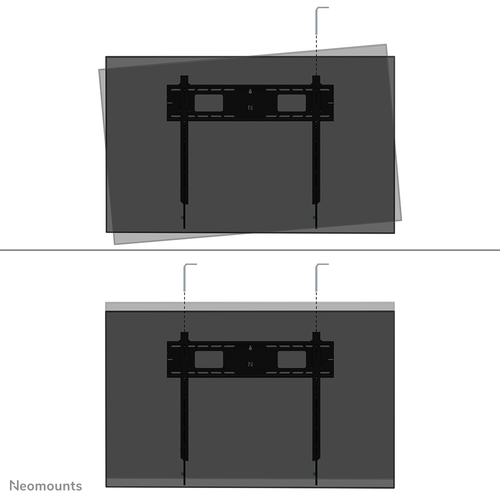

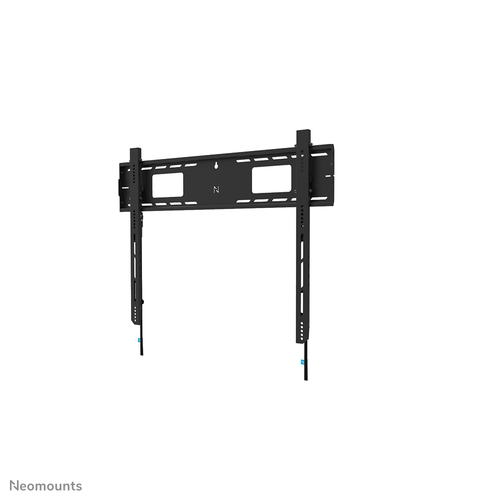

The Neomounts WL30-750BL18 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

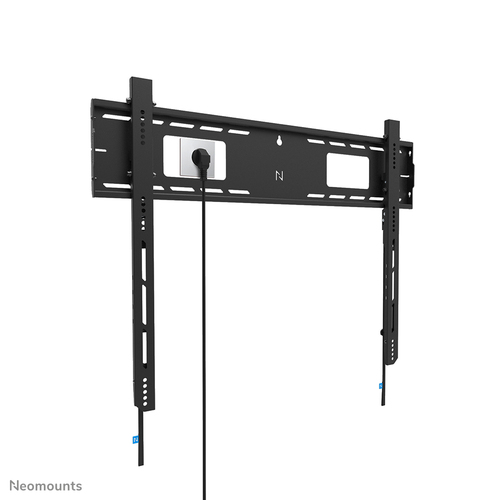

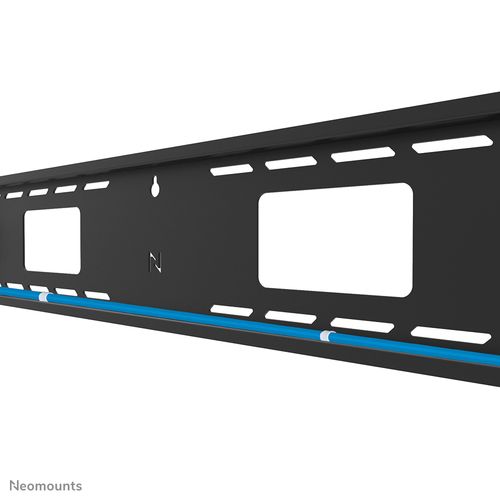

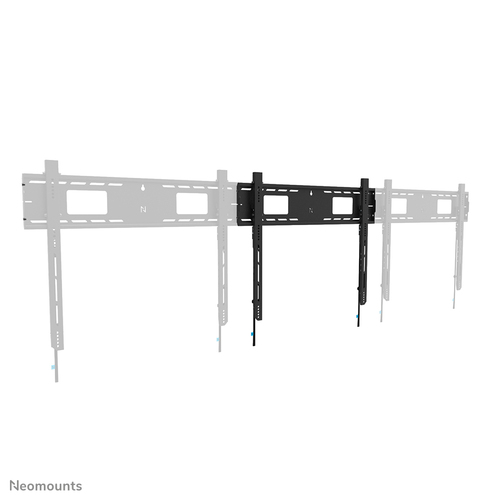

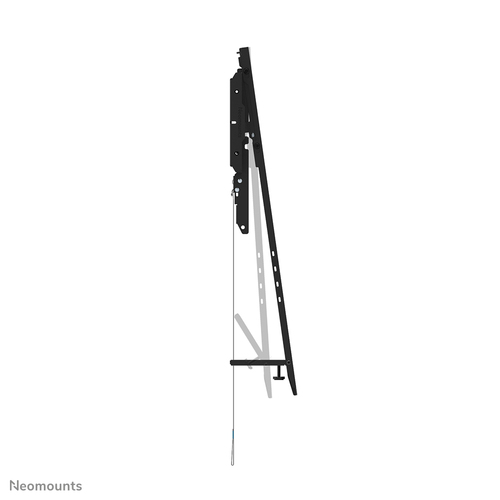

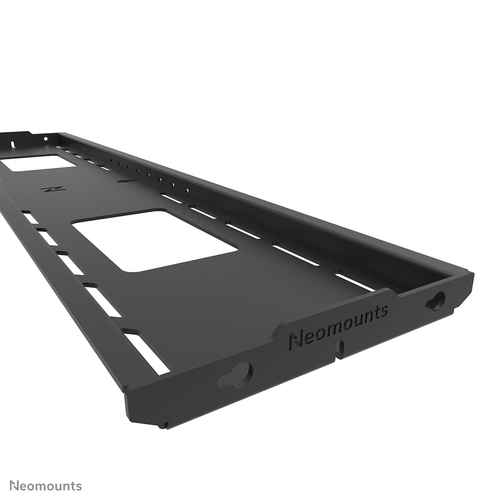

The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

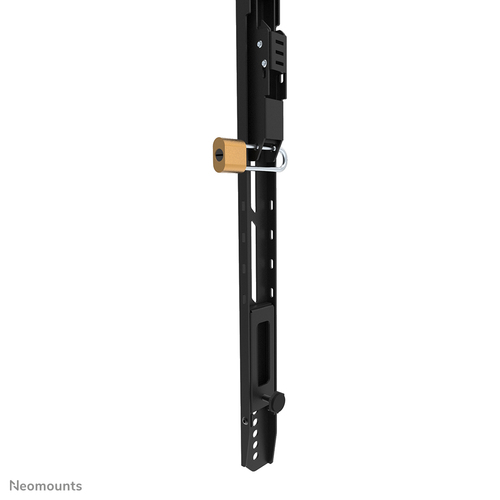

The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.

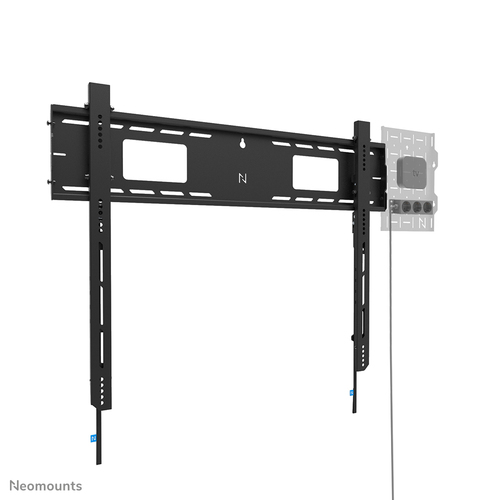

For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.
| Mounting | |
|---|---|
| Maximum weight capacity | 125 kg |
| Minimum screen size | 109.2 cm (43") |
| Number of displays supported | 1 |
| Maximum screen size | 2.49 m (98") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 600 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 500,600 x 500,600 x 600,800 x 500,800 x 600,200 x 100,300 x 100,100 x 150,120 x 120,350 x 350,400 x 200,700 x 400,500 x 500,150 x 200,800 x 450,200 x 150 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Cable management | Yes |
| Type | Fixed |
| Distance to the wall (max) | 4.2 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Lockable | Padlock not included |
| Weight & dimensions | |

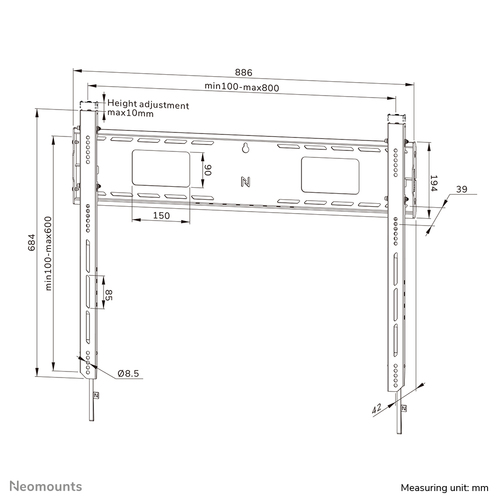

| Width | 886 mm |
| Depth | 42 mm |
| Height | 684 mm |
| Weight | 6.3 kg |
| Packaging data | |
| Package width | 928 mm |
| Package depth | 61 mm |
| Package height | 209 mm |
| Package weight | 7.7 kg |
| Logistics data | |
| Master (outer) case width | 946 mm |
| Master (outer) case length | 227 mm |
| Master (outer) case height | 201 mm |
| Master (outer) case gross weight | 23.7 kg |
| Master (outer) case net weight | 18.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | HS7326909890 |
| Products per pallet (EU) | 90 pc(s) |
