Neomounts AWL05-750BL AV hardware rack - universal
- Brand
- NEOMOUNTS
- Product code
- AWL05-750BL
- SKU
- CYWEZ53F9L2S2
Product Info

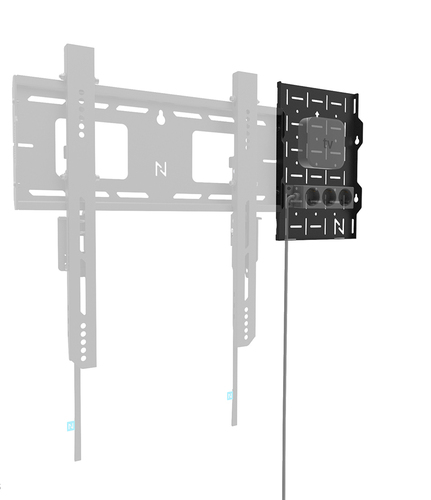

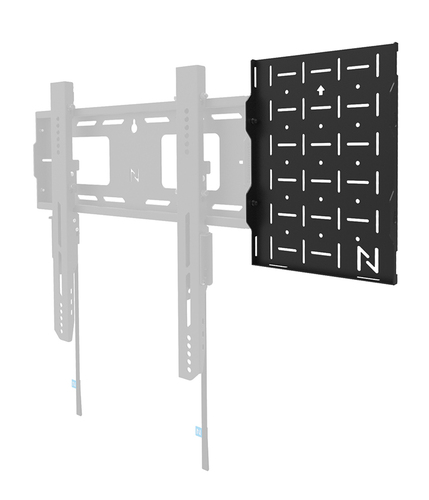

The Neomounts AWL05-750BL AV hardware rack is a practical solution to install a mini-pc, Apple TV, NUC or other AV-hardware up to 10 kg to your LEVEL-750-series wall mount. The storage rack can be placed to the left or right side of the wall mount. To prevent the wall from damaging, the rack is equipped with soft pads on the backside. Connecting the AWL05-750BL to the wall plate of a LEVEL-750-series wall mount can be quickly done using the provided keyholes.

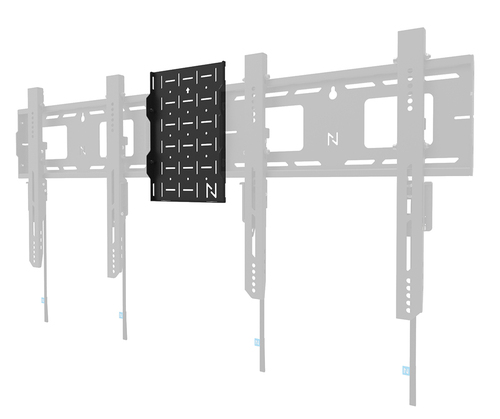

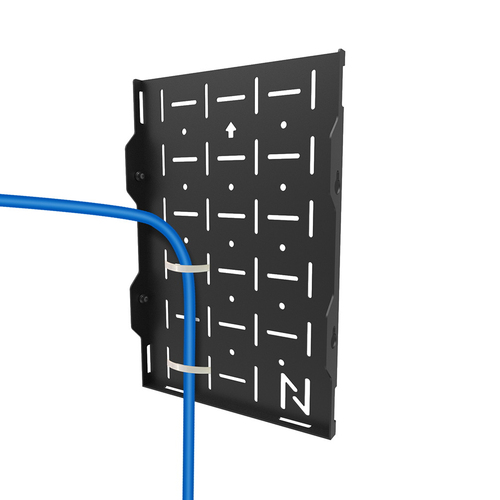

The rack?s perforated design ensures sufficient ventilation and offers a flexible fixing pattern, where the holes can be used to attach tie-wraps or other types of cable management. For a dual display setup you can use the AWL05-750BL as a connector between 2 backplates. Simply place you hardware on the AV-rack and put the rack into place. Optionally, you can use the WL30-750 kickstand or WL35-750 tilt position to access and connect cables.
| Features | |
|---|---|
| Product type | AV rack |
| Mounting type | Wall |
| Maximum weight capacity | 10 kg |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Warranty period | 5 year(s) |
| Country of origin | China |

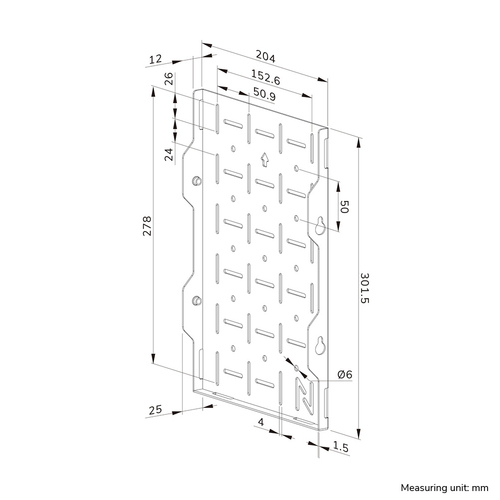

| Weight & dimensions | |
| Width | 204 mm |
| Depth | 25 mm |
| Height | 302 mm |
| Weight | 740 g |
| Packaging data | |
| Package width | 325 mm |
| Package depth | 43 mm |
| Package height | 215 mm |
| Package weight | 1 kg |
| Logistics data | |
| Master (outer) case net weight | 3.7 kg |
| Products per pallet (EU) | 225 pc(s) |
| Master (outer) case width | 343 mm |
| Master (outer) case length | 233 mm |
| Master (outer) case height | 235 mm |
| Master (outer) case gross weight | 5.4 kg |
| Products per master (outer) case | 5 pc(s) |
| Harmonized System (HS) code | HS7326909890 |
