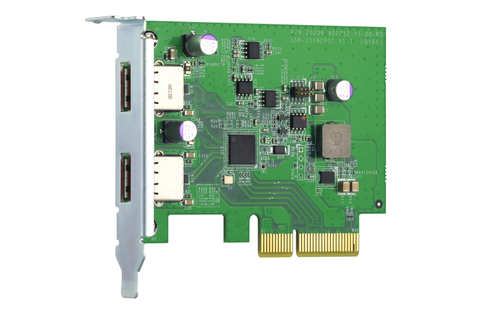

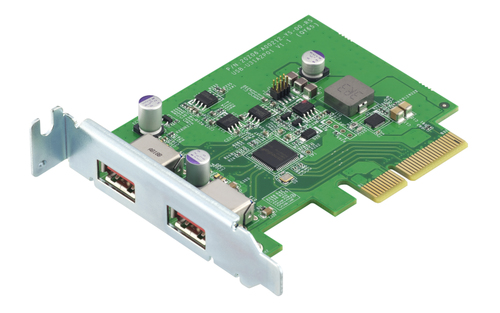

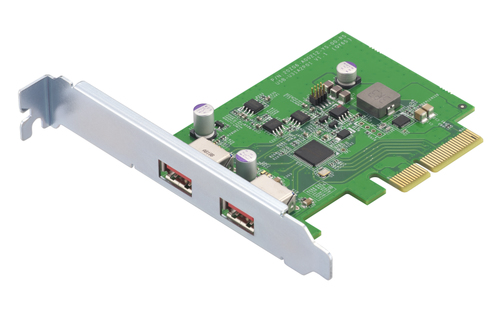

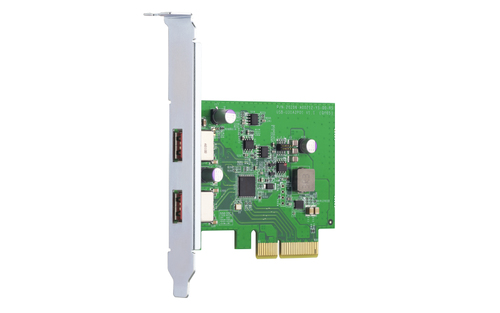

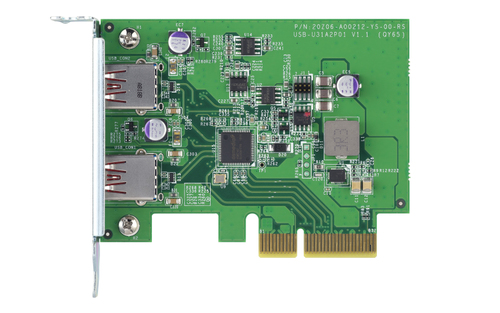

QNAP QXP-10G2U3A interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
- Brand
- QNAP HW
- Product code
- QXP-10G2U3A
- SKU
- HT8AIDKLXNL6M
- Dual-port USB 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds and are backwards compatible with previous-generation USB devices
- Supports USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer
- Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption
- Supports overcurrent detection and short circuit protection
- Supports Windows 8.x / 10 (32/64-bit) and Ubuntu desktop 20.04 LTS. No driver is required
Product Info
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps – double that of USB 3.2 Gen 1 – to greatly boost data transfer speeds. With two ports, the QNAP USB 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB 3.2 Gen 2 devices to accelerate file transfers and backup. The QNAP USB 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or Windows/Ubuntu PC.
Experience USB 3.2 Gen 2 SuperSpeed+ up to 10Gbps
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps – double that of USB 3.2 Gen 1, and 20 times that of USB 2.0.
Expand your Storage by Connecting to a QNAP USB JBOD
By using a QNAP USB 3.2 Gen 2 Expansion Card in your QNAP NAS or PC, you can connect a QNAP USB JBOD to back up and expand your storage. The USB 3.2 Gen 2 Expansion Card supports both QNAP NAS and Windows/Ubuntu PCs without requiring drivers. You can configure RAID and monitor disk health using the QTS/QuTS hero Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP JBOD Manager utility on your computer.
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 2.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Design | |
| Internal | Yes |
| Purpose | NAS / Storage server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 68.9 mm |
| Depth | 89.7 mm |
| Height | 14 mm |
| Packaging data | |
| Quantity | 1 |

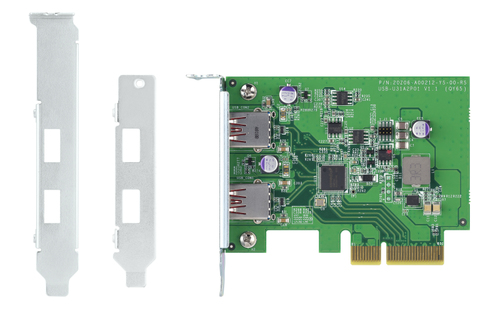

| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
