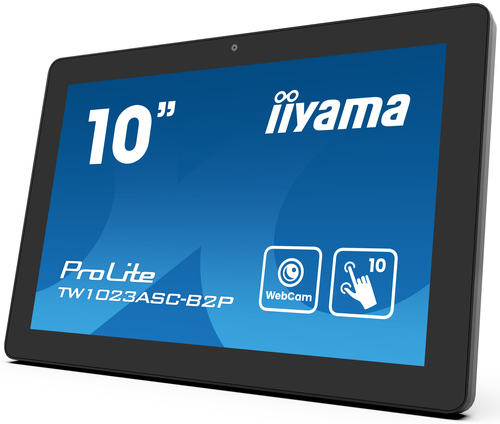

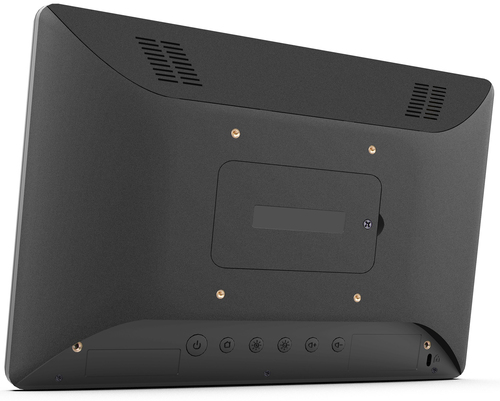

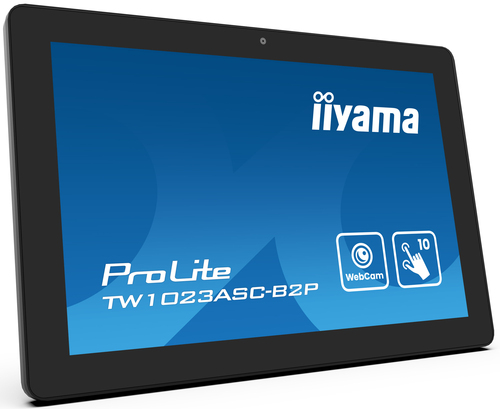

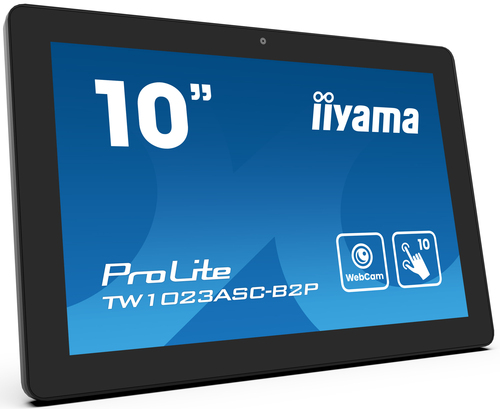

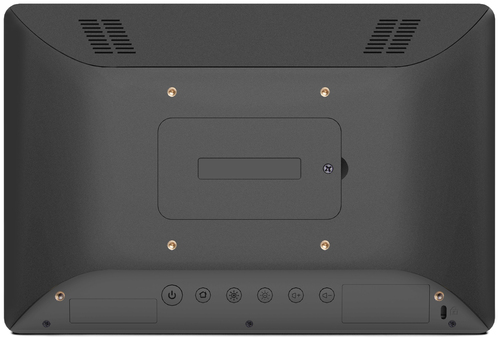

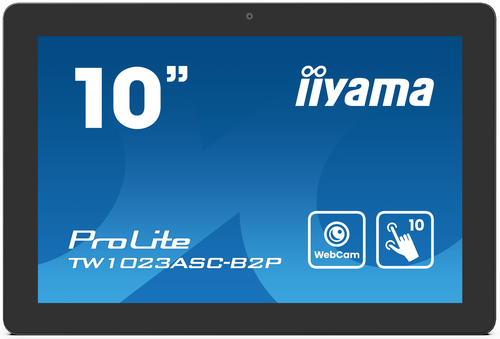

iiyama TW1023ASC-B2P touch control panel
iiyama 10.1” PCAP 10pt Touchscreen with Android and Power over Ethernet Technology
- Brand
- Iiyama
- Product code
- TW1023ASC-B2P
- SKU
- QUSGH7R8W2K5I
- EAN/GTIN
- 4948570124541
€254.79
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
10.1” PCAP 10pt Touchscreen with Android and Power over Ethernet Technology
The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it.
The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Panel type | IPS |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 387 cd/m² |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:10 |
| Colour depth | 16.7 bit |
| Contrast ratio | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Performance | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Internal memory | 4000 MB |
| RAM capacity | 32000 MB |
| Product colour | Black |
| VESA mounting | Yes |
| Operating system installed | Android |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Speaker power | 3 W |
| Built-in microphone | Yes |
| Number of microphone arrays | 1 |
| Ports & interfaces | |
| USB Type-C ports quantity | 4 |
| USB 2.0 Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Power | |
| Power source type | AC |
| Power supply location | External |
| Power consumption (typical) | 18 W |
| Weight & dimensions | |
| Width | 255 mm |
| Depth | 30.5 mm |
| Height | 172 mm |
| Weight | 800 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 1.36 kg |
| Package depth | 398 mm |
| Package width | 68 mm |
| Package height | 223 mm |
| Package type | Box |
| Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
