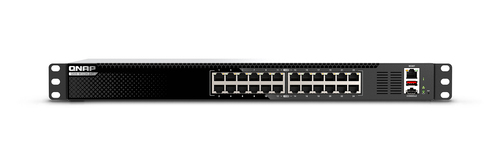

QNAP QSW-M3224-24T network switch Managed L3 10G Ethernet (100/1000/10000) 1U Black, Silver
- Brand
- QNAP HW
- Product code
- QSW-M3224-24T
- SKU
- YSVBVLJO4GIJ0
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: USB
- 10G support
- MAC address table: 32000 entries Switching capacity: 480 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC
Product Info
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
24-port 10GbE network
Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.
L3 Lite
Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.
Continuous Enterprise networks
Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.
Secure network management
Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.
Easier AV-over-IP configuration
Supports IGMP Snooping management and IGMP Snooping traffic forwarding control for low-latency network connections with multiple AV devices.
User-friendly management interface
QSS Pro (QNAP Switch System Pro) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Number of management ports | 1 pc(s) |
| Console port | USB |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 480 Gbit/s |
| Throughput | 240 Gbit/s |
| MAC address table | 32000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black, Silver |
| Reset button | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 116.9 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 438.5 mm |
| Depth | 190 mm |
| Height | 44.2 mm |
| Weight | 2.93 kg |
| Packaging data | |
| Package weight | 4.5 kg |
| Certificates | |
| Certification | CE, FCC, VCCI, BSMI |
