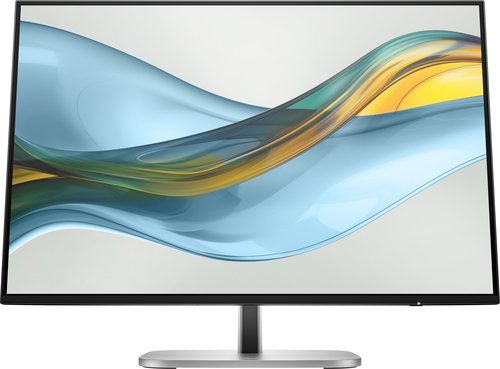

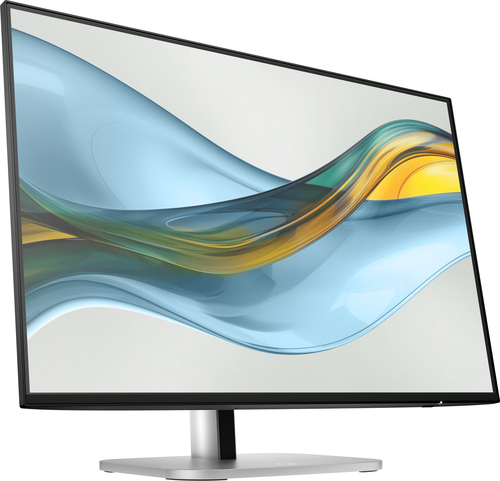

HP Series 5 Pro 24 inch WUXGA Monitor - 524pn
- Brand
- HP
- Product Family
- Series 5
- Product code
- 9D9A7AA#ABU
- SKU
- 5LU6LK2AY00UF
- EAN/GTIN
- 197961405026
- Get more done on this 24" WUXGA resolution monitor with 100 Hz refresh rate.[1] Experience vibrant, consistent colors with 100% sRGB[1] and HP Progressive White Balance.[2]
- Do more with a minimal, sleek 3-sided borderless design. Pair with another HP Series 5 Pro 24" WUXGA monitor[4] for the perfect dual display setup[13].
- Find all-day comfort with 4-way adjustability and Ergonomic Setup Guide[5] for the optimal monitor position. HP Eye Ease reduces blue light without impacting color.
- Thoughtfully designed with at least 90% recycled plastic content and 90% recycled aluminum in the stand[6].
Product Info
Reimagine what work looks like
Get more out of your workday with the HP Series 5 Pro 24” WUXGA Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.
Description
16:10 WUXGA Resolution
Get 11% more screen with WUXGA 1920x1200 resolution and 16:10 aspect ratio. [1,12]
Always-on, True Color, Low-Blue Light Filter
HP Eye Ease is an always-on, low-blue light filter that helps keep your eyes comfortable throughout the day by reducing blue light without impacting color accuracy or adding a yellow color shift.
Ergonomic Setup Guide
With world-class ergonomic practices at your fingertips, you have the knowledge to fine-tune your display's 4-way adjustability to achieve optimal comfort, all day, thanks to the step-by-step Ergonomic Setup Guide in HP Display Center. [5,9]
100 Hz Refresh Rate
With a 100 Hz refresh rate this monitor is capable of clear details, smoothly moving from frame to frame, allowing for fast split-second reaction time. [1]
Designed to inspire
Change the way you see your desk. See more of your display with the 3-sided borderless with micro-edge bezel design. To get even more done, pair this display with another HP Series 5 Pro 24" WUXGA monitor[4] and a dock[3] for the perfect dual display setup[13].
More Contrast
See the nuanced differences of color, shadow, and highlights thanks to the enhanced 1500:1 contrast ratio. [1]
Elevate your productivity
See more of your work and get more done on this 24" WUXGA resolution monitor. A lightning-fast 100 Hz refresh rate[1] brings out every detail. Elevate your view even more by experiencing bright, vibrant, consistent colors with 100% sRGB[1] and HP Progressive White Balance.[2]

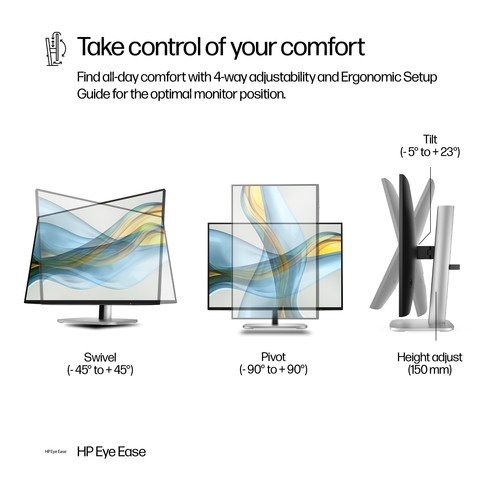

Take control of your comfort
Find a way to feel your best all day with 4-way adjustability optimized by the step-by-step Ergonomic Setup Guide[5] in HP Display Center[9]. Keep your eyes comfortable with HP Eye Ease by reducing blue light without impacting color.
IPS Technology
No matter where you are or sit, IPS technology ensures image accuracy and consistency across wide 178-degrees horizontal and vertical viewing angles. [1]
High Brightness
350 nits of brightness lets you see clearly. Enhance your visual performance for work or simply enjoying entertainment. [1]
100% sRGB Color Gamut
Enjoy highly accurate colors on screen with 100% sRGB. This HP monitor provides ideal color reproduction with minimal effort. [1]
Progressive White Balance
Work better with content that looks the same on both screens. Progressive White Balance is an HP technology that provides consistent white-point matching from screen-to-screen. [2]

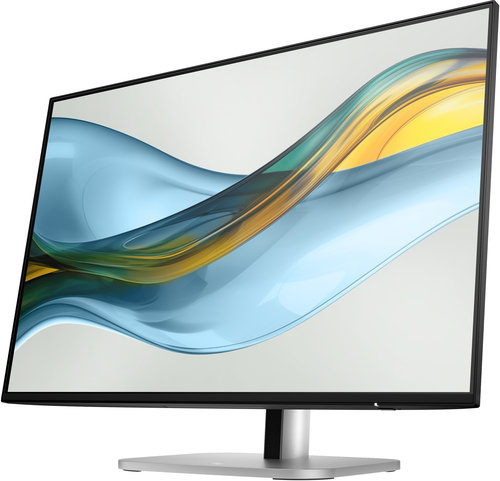

Sleek Design, Clean Space
See and do more on your screen with a 3-sided borderless with micro-edge bezel design that maximizes your viewing area for a sleek design and virtually seamless dual-monitor setups.

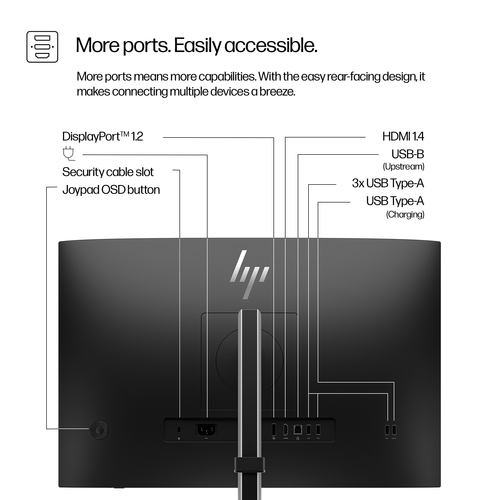

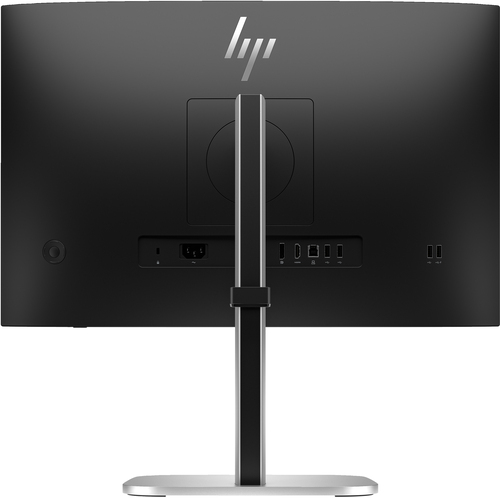

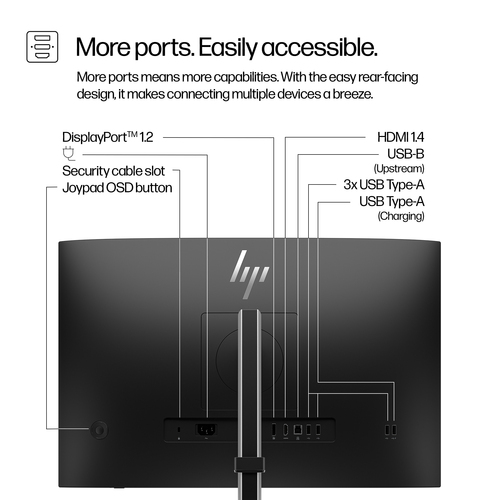

More Ports. Easily Accessible.
More ports means more capabilities. With HDMI 1.4, DisplayPort™ 1.2, USB-B (upstream), and 4 USB-A 3.2 ports, you can connect multiple devices. Easy rear-facing design makes connecting a breeze. [8]

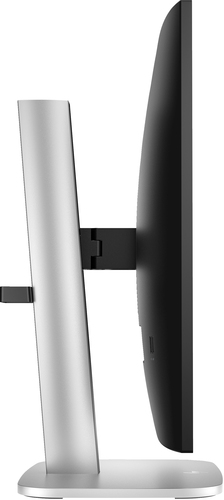

Endless Adjustability

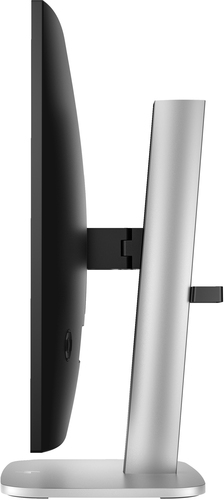

With 4-way adjustability you can customize pivot, tilt, height adjust, and swivel settings to fit you, your desk, and your needs.
HP Display Center
Customize your monitor with the intuitive HP Display Center that lets you tailor your settings, partition screens, and more—all through the host PC. Plus, learn how to find your perfect posture with help from the included HP Ergonomic Setup Guide. [5,9]
Works with Chromebook Certified
The Works With Chromebook badge on a device means it’s optimized to work with your Chromebook and other Chrome OS devices. Enjoy a seamless experience across Works With Chromebook certified accessories. [10]
Increased Energy Efficiency
HP is committed to helping protect our shared future by minimizing the energy our monitors consume to help reduce energy demand. This monitor is held to the highest energy saving standard with an ENERGY STAR® rating and EPEAT® Gold Registration. [11]
| Display | |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1200 pixels |
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen | No |
| Display brightness (typical) | 350 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1500:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 100 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Pixel density | 94 ppi |
| Horizontal scan range | 30 - 130 kHz |
| Vertical scan range | 50 - 100 Hz |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
| Display diagonal (metric) | 61 cm |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| Colour gamut | 100% |
| sRGB coverage (typical) | 100% |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| HP segment | Business |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Feet colour | Silver, Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 4 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | C |
| Power consumption (typical) | 22 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 58 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 20 - 80% |

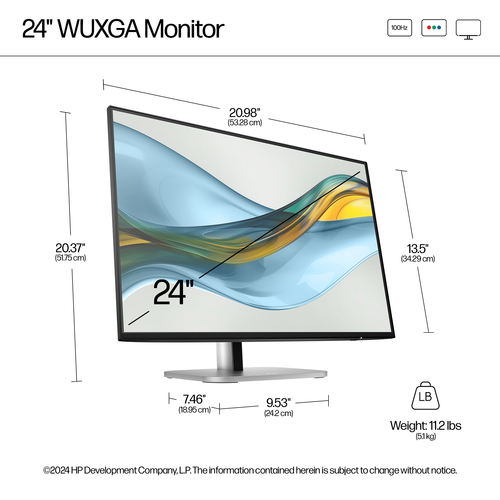

| Weight & dimensions | |
| Width (with stand) | 532.8 mm |
| Depth (with stand) | 189.5 mm |
| Height (with stand) | 517.5 mm |
| Weight (with stand) | 5.1 kg |
| Packaging data | |
| Package width | 621 mm |
| Package depth | 140 mm |
| Package height | 411 mm |
| Package weight | 7.4 kg |
| Package type | Box |
| Packaging content | |
| Cables included | AC, DisplayPort, HDMI, USB Type-A to USB Type-B |
| Quick start guide | Yes |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Country of origin | China, Vietnam |
| UNSPSC-code | 43211902 |
| Weight | 5.1 kg |
| Compliance certificates | BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), GS mark, ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus |
| Manufacturer warranty | HP three-year limited warranty |
| Certification | BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF |
| Brand-specific features | |
| HP GTIN (EAN/UPC) with options | (ABB) 197961404999; (ABU) 197961405026 |
| HP GTIN (EAN/UPC) | 197961404999, 197961405026 |
| Technical details | |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
