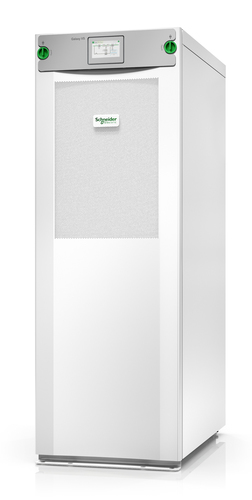

APC Galaxy VS uninterruptible power supply (UPS)

GVSUPS80KHS - 731304342823

APC Galaxy VS uninterruptible power supply (UPS) Double-conversion (Online) 80 kVA 80000 W

Brand: APC HW
Product code: GVSUPS80KHS
SKU: 7PH79TXKT9TX9
EAN/GTIN: 731304342823

Highly efficient, easy-to-deploy 80kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data
Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry

€19118.71 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Galaxy VS UPS 80kW 400V for External Batteries, Start-up 5x8

APC Galaxy VS. UPS topology: Double-conversion (Online), Output power capacity: 80 kVA, Output power: 80000 W. Form factor: Tower, Product colour: White. Compliance certificates: RoHS, Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC.... Width: 521 mm, Depth: 847 mm, Height: 1485 mm. Package width: 640 mm, Package depth: 990 mm, Package height: 1680 mm

Highly efficient, easy-to-deploy 80kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 80 kVA

Output power 80000 W

Waveform Sine

Input operation voltage (min) 340 V

Input operation voltage (max) 460 V

Input frequency 40/70 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 148 A

Number of input phases 3

Number of output phases 3

Efficiency 97%

Input power factor 0.99

Crest factor 2.5:1

Output voltage Total Harmonic Distortion (THD) 3%

Noise level 65 dB

Design

Form factor Tower

Product colour White

LED indicators Yes

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -25 - 55 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 10 - 80%

Operating altitude 0 - 984.3 m

Non-operating altitude 0 - 15000 m

Certificates

Compliance certificates RoHS

Certification CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Weight & dimensions

Width 521 mm

Depth 847 mm

Height 1485 mm

Weight 250 kg

Packaging data

Package width 640 mm

Package depth 990 mm

Package height 1680 mm

Package weight 275 kg

Logistics data

Harmonized System (HS) code 85078000

Other features

Input connection type 3-wire (3PH + G), 5-wire (3PH + N + G)

Nominal output voltage 400 V

Nominal input voltage 400 V
