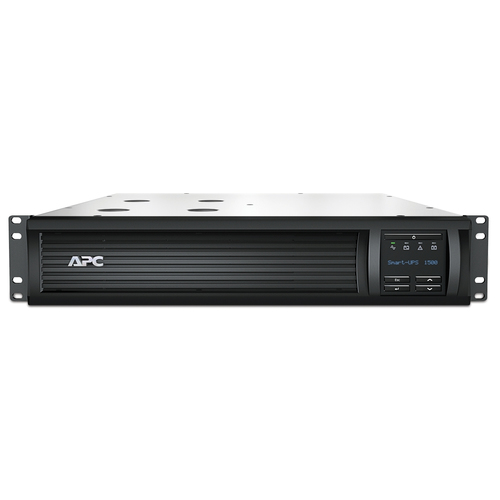

APC SMT1500RMX93 uninterruptible power supply (UPS)

Features

UPS topology Line-Interactive

Output power capacity 1.44 kVA

Output power 1000 W

Waveform Sine

Input operation voltage (min) 82 V

Input operation voltage (max) 144 V

Input frequency 50/60 Hz

Output operation voltage (max) 120 V

Output frequency 50/60 Hz

Surge energy rating 693 J

Response time 6 ms

Noise level 45 dB

Audible alarm(s) Yes

Ports & interfaces

AC outlet types NEMA 5-15R

Power plug NEMA 5-15P

AC outlets quantity 6 AC outlet(s)

USB port Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 432 Ah

Typical backup time at full load 7 min

Typical backup time at half load 26 min

Battery life (max) 5 year(s)

Battery recharge time 3 h

Design

Form factor Rackmount

Rack capacity 0U

Product colour Black

Control type Buttons

Display type LED

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -20 - 55 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Certificates

Compliance certificates REACH, RoHS, WEEE

Certification REACH, RoHS, WEEE, CSA C22.2 No 107.1

Packaging content

Manual Yes

Sustainability

Doesn't contain Mercury

Weight & dimensions

Width 432 mm

Depth 477 mm

Height 86 mm

Weight 26.5 kg

Packaging data

Package width 610 mm

Package depth 590 mm

Package height 235 mm

Package weight 26.5 kg

Logistics data

Warranty period 3 year(s)
