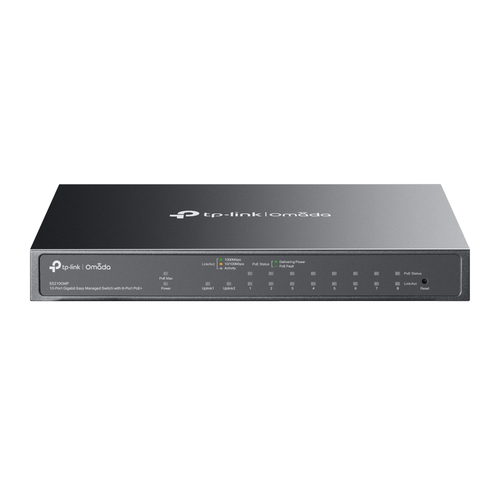

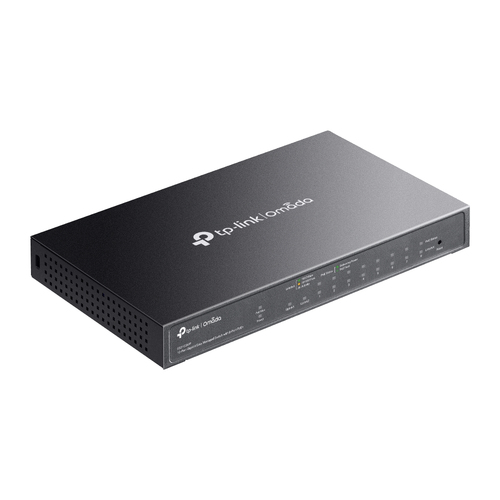

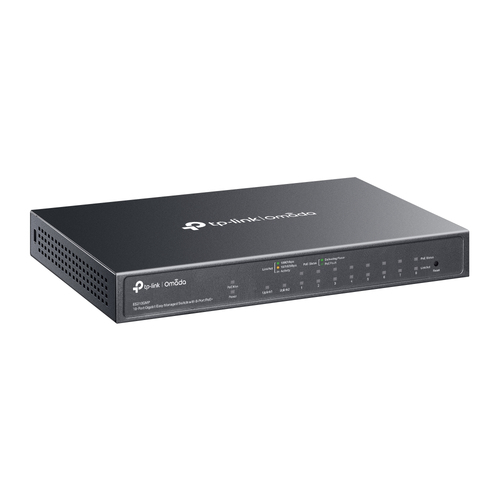

TP-Link Omada ES210GMP network switch
ES210GMP - 8885020620962
TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- ES210GMP
- SKU
- XNYALCYK8UOA3
- EAN/GTIN
- 8885020620962
- 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

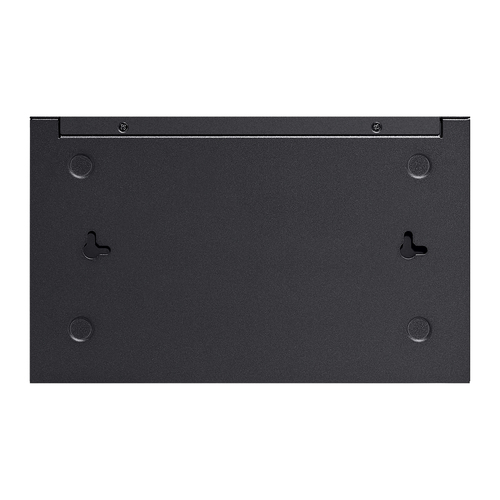

- Durable metal casing and desktop/wall mounting design
€129.16
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
8× 10/100/1000 Mbps PoE+ RJ45, 1× 10/100/1000 Mbps RJ45, 1× Gigabit SFP/RJ45 Combo, 20 Gbps, 8K MAC, 15 KB Jumbo, 209×126×26 mm
TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Specifications
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
1
Network
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)
0.25 km
Data transmission
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15
Packet buffer memory
4 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Design
Product colour
Black
Reset button
Yes
Wall mountable
Yes
Performance
Fanless
Yes
Power
Power source
DC
Power supply included
Yes
DC input voltage
53.5 V
Input current
2.43 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
123 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
Cables included
AC
User guide
Yes
Packaging data
Package type
Box
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
