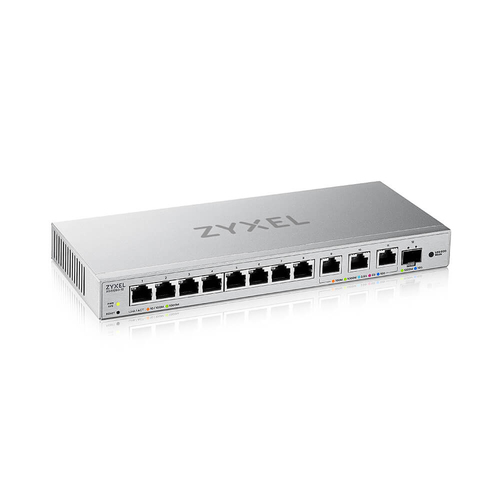

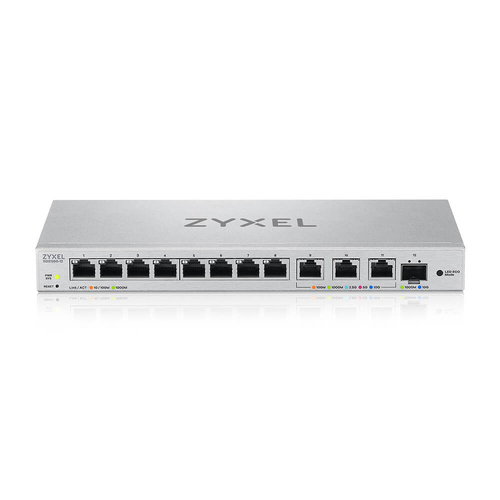

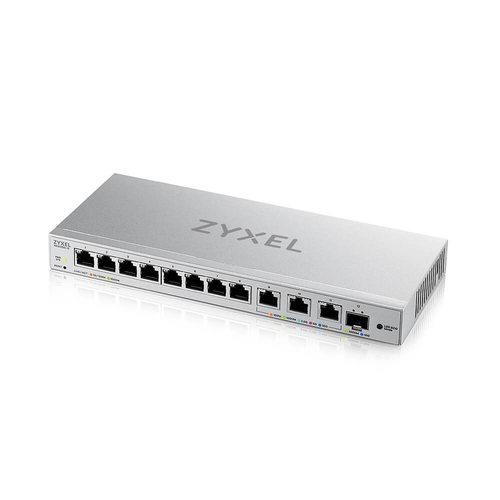

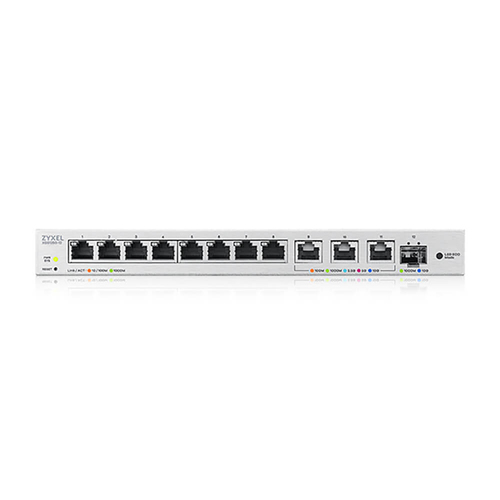

Zyxel XGS1250-12 Managed L2 10G Ethernet (100/1000/10000) Grey
- Brand
- Zyxel
- Product code
- XGS1250-12-ZZ0102F
- SKU
- RRGLIQHN3WHMA
- EAN/GTIN
- 4718937634453
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 11
- 10G support
- MAC address table: 16000 entries Switching capacity: 96 Gbit/s
- AC Power supply included
Product Info
Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.
Agile Network Applications
Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.
Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.
Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.
Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 11 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 96 Gbit/s |
| Forwarding rate | 71.42 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| Housing material | Aluminium, Iron |
| Reset button | Yes |
| LED indicators | Yes |
| Redundant fans support | Yes |
| Wall mountable | Yes |
| DIN rail mounting | No |
| Number of fans | 1 fan(s) |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 20.06 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 104 mm |
| Height | 27 mm |
| Weight | 783 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
