Zyxel XGS1210-12-ZZ0102F network switch Managed Gigabit Ethernet (10/100/1000) Grey
- Brand
- Zyxel
- Product code
- XGS1210-12-ZZ0102F
- SKU
- HSF4L6BSDGB0E
- EAN/GTIN
- 4718937633715
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 16000 entries Switching capacity: 66 Gbit/s
- AC/DC Power supply included
Product Info

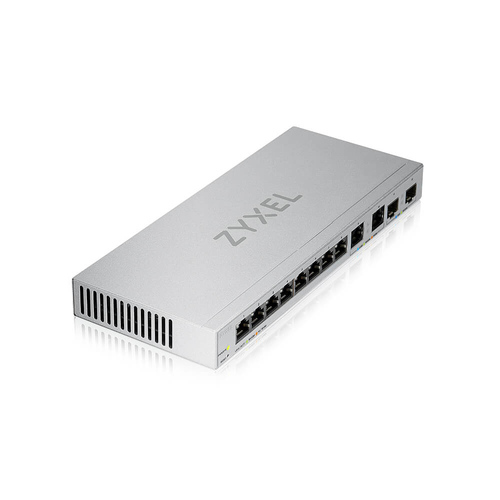

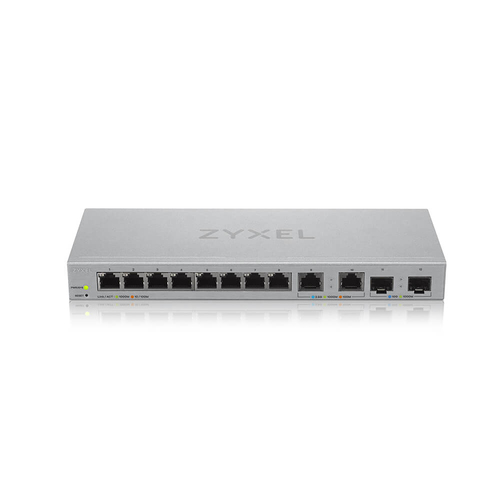

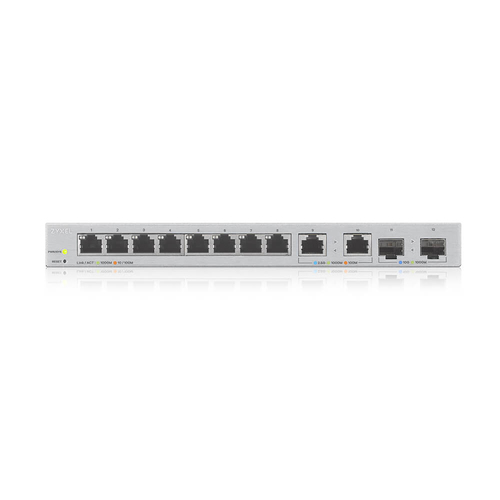

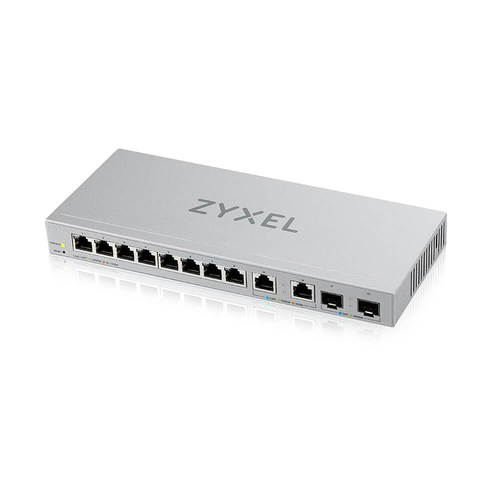

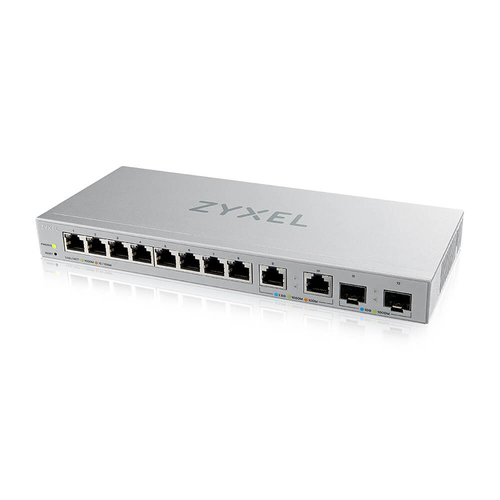

The Zyxel XGS1210-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with an easy-to-use Web GUI allowing users to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simplified management over a variety of home to office environments.
Maximums the flexibility for your network.

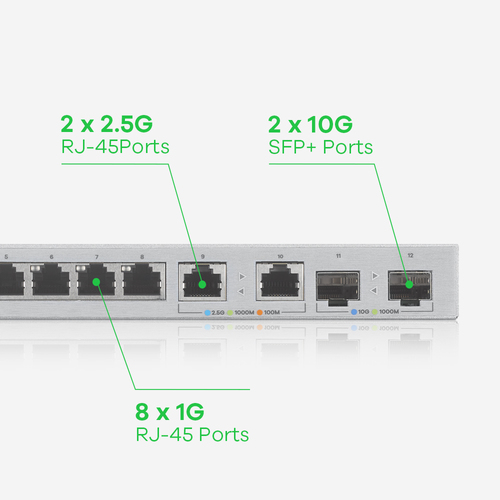

The XGS1210-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.
Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file
10G SFP+ ultra-speed uplink
Provide two SFP+ ports compatible with 10GbE and which offers higher transmission speeds and get customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
Easy management with intuitive GUI
XGS1210-12 comes with a user-friendly web-based setup wizard that quickly and easily walks you through setup, configuration and management, including configuration backups and firmware upgrades. With a few simple clicks, your network will be up and running, so you can get back to business.
Comprehensive smart features
XGS1210-12 caters to most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring. Does not require any additional software. Simplified for home and small office users’ network.
Saving energy and space.

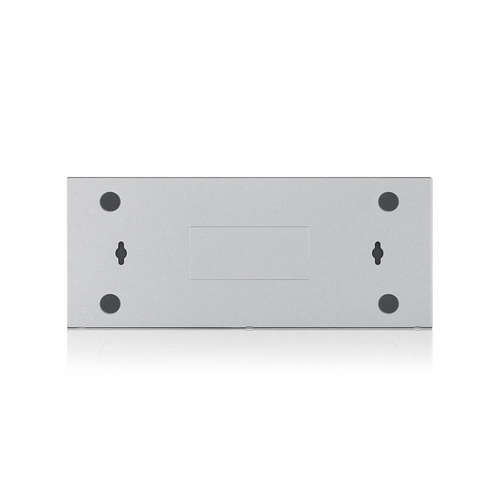

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Data transmission | |
| Switching capacity | 66 Gbit/s |
| Forwarding rate | 49 Mpps |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Power | |
| Power source | AC/DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (max) | 15.61 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 104 mm |
| Height | 24 mm |
| Weight | 768 g |
| Packaging data | |
| Package width | 306 mm |
| Package depth | 225 mm |
| Package height | 64 mm |
| Package weight | 1.22 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
