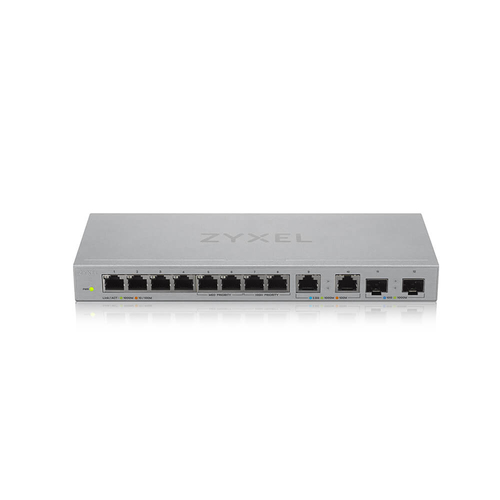

Zyxel XGS1010-12-ZZ0102F network switch

Zyxel XGS1010-12-ZZ0102F network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey


Brand
Zyxel
Product code
XGS1010-12-ZZ0102F
SKU
2BO9WBPR71N0B
EAN/GTIN
4718937633708
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 16000 entries Switching capacity: 66 Gbit/s
  • Access Control List (ACL)
  • AC/DC Power supply included
€144.6 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

12-Port 10G SFP+ Unmanaged Multi-Gigabit Switch provides high performance and simplified controls
The Zyxel XGS1010-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with plug-and play design. It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.

Maximums the flexibility for your network.

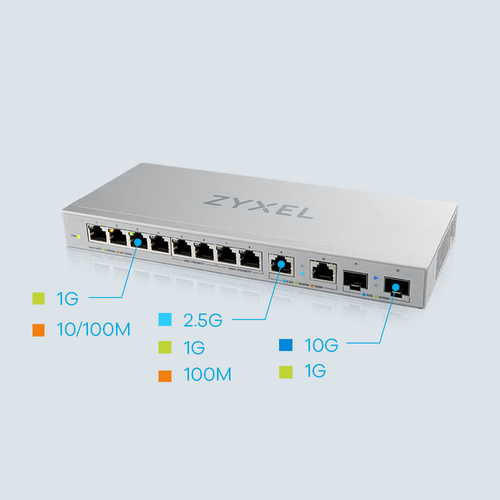

The XGS1010-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.

Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file transfers, lag-free gaming, and high-res video streaming.

10G SFP+ Ultra Speed Uplink.
Provide two SFP+ ports compatible with 10GbE, which offers higher transmission speeds, instantly upgrade to a hybrid high-speed network environment at a cost-effective price.

QoS for Better Traffic Control.
The Zyxel XGS1010-12 comes with two high-priority and two medium p-priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.

Easy to Use, No Setup Required.
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.

Saving energy and space.

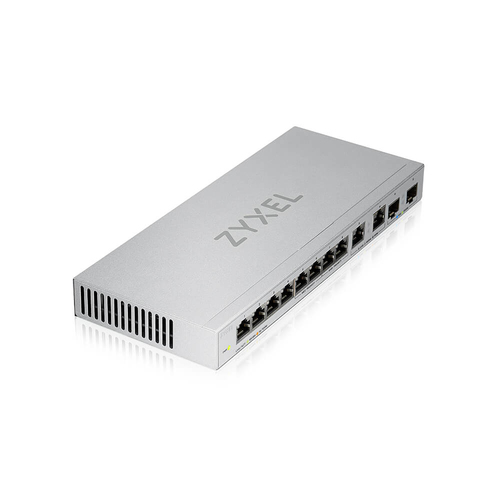

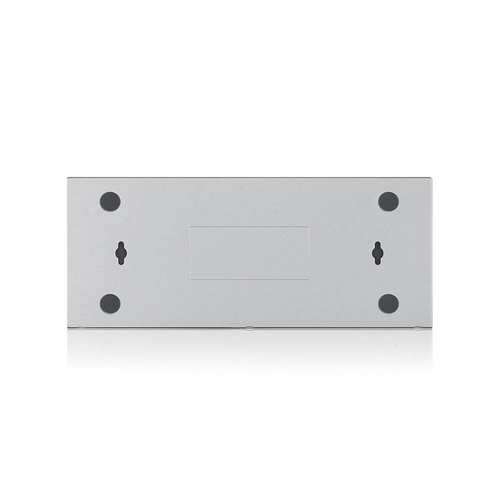

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity 2
SFP+ module slots quantity 2
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Data transmission
Switching capacity 66 Gbit/s
Forwarding rate 49 Mpps
MAC address table 16000 entries
Jumbo frames support Yes
Jumbo frames 12000
Packet buffer memory 1.5 MB
Security
Access Control List (ACL) Yes
Design
Rack mounting No
Product colour Grey
Reset button Yes
LED indicators Yes
Power
Power source AC/DC
Power supply included Yes
AC input voltage 100 - 240 V
DC input voltage 12 V
Input current 1.5 A
Power consumption (max) 15.61 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 250 mm
Depth 104 mm
Height 24 mm
Weight 768 g
Packaging data
Package width 306 mm
Package depth 225 mm
Package height 64 mm
Package weight 1.22 kg
Logistics data
Harmonized System (HS) code 85176990
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
