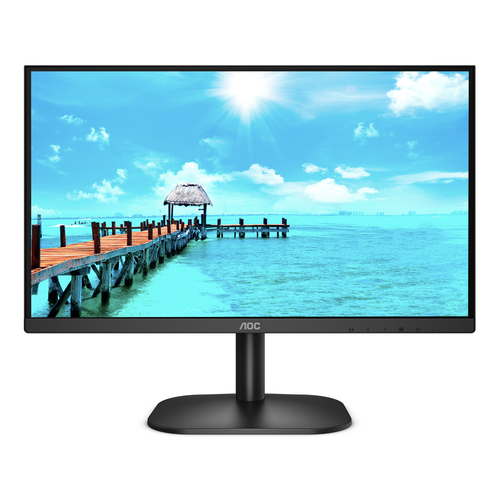

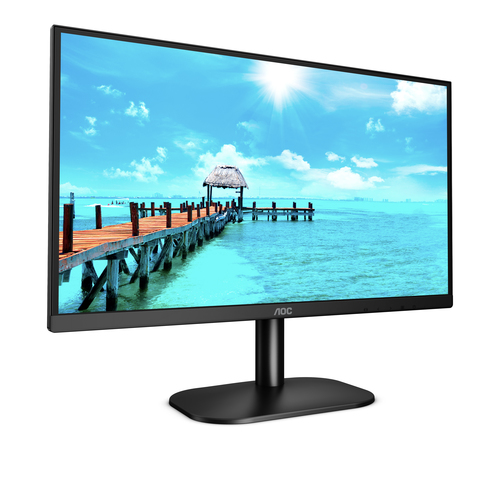

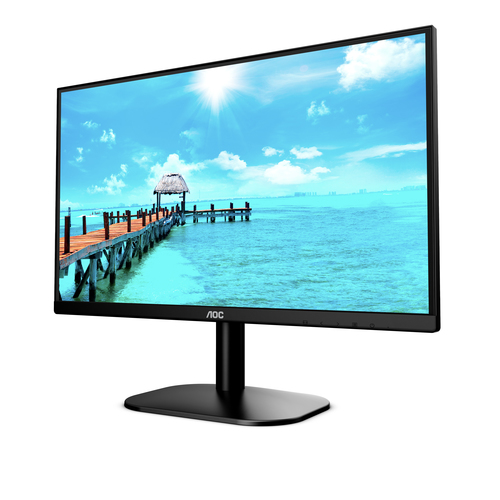

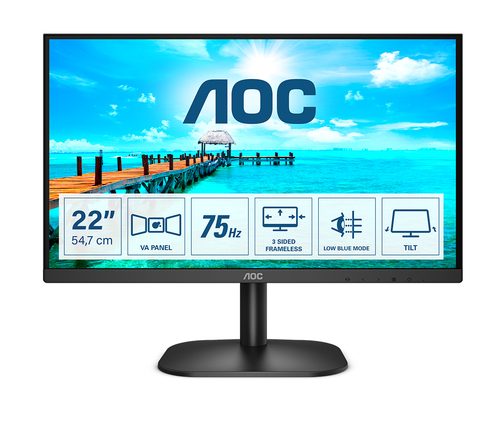

AOC B2 22B2H/EU LED display 54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
- Brand
- AOC
- Product Family
- B2
- Product code
- 22B2H/EU
- SKU
- QMHQY3J0IFNH1
- EAN/GTIN
- 4038986127165
- 54.6 cm (21.5") LED VA
- Full HD 1920 x 1080 pixels 16:9
- 75 Hz 4 ms 250 cd/m² 3000:1
- Flicker-free technology
- 18 W
Product Info
Modern and sleek 21.5" 3-sides borderless monitor with Full HD and eye-caring LowBlue and FlickerFree technology
Modernized design and crisp Full HD images. The 22B2H/EU combines a sleek 3-sides frameless panel and VGA and HDMI connectivity. Enjoy working or streaming with wide viewing angles and eye-soothing LowBlue and FlickerFree technologies.
Description
VA Panel
VA Panels (Vertical Alignment) display deeper blacks and a high contrast for extra vivid and bright images.
HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).
Low Blue Light
AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowblue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.
Frameless design
Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.
FHD Resolution
Want to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system’s resources.
Flicker Free
AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 250 cd/m² |
| Response time | 4 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 768p, 1080p |
| Aspect ratio | 4:3, 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2482 x 0.2482 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 47.7 cm |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.61 cm |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| sRGB coverage (typical) | 98% |
| NTSC coverage (typical) | 73% |
| Adobe RGB coverage | 77% |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Fast charging | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Market positioning | Home |
| Product colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Detachable stand | No |
| Feet colour | Black |

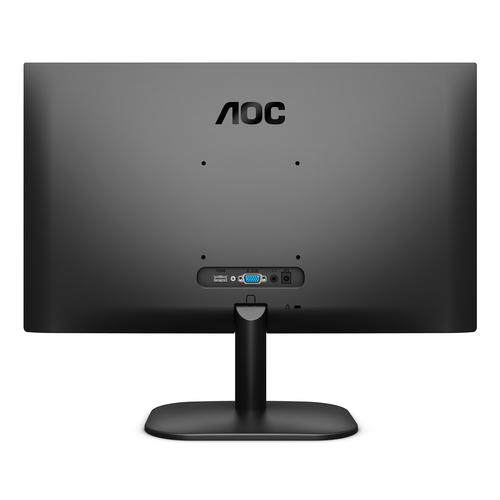

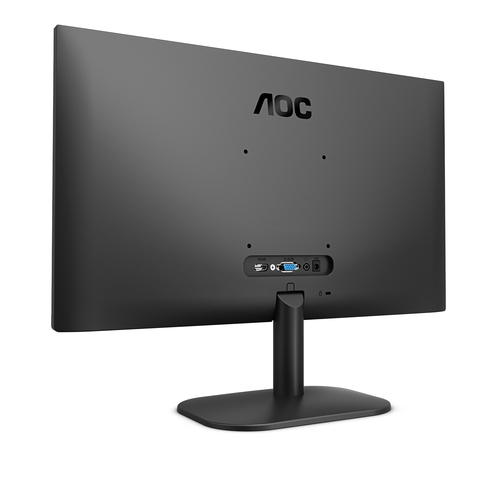

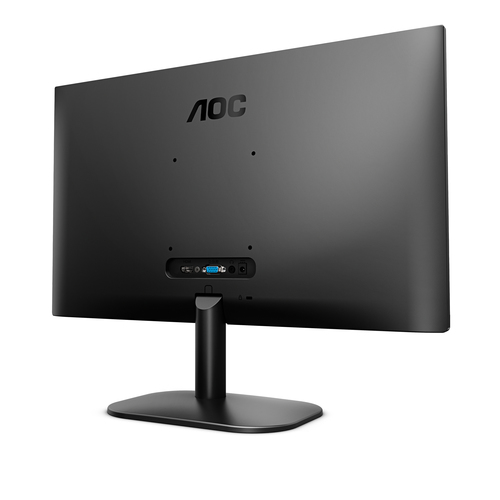

| Ports & interfaces | |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | No |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Pivot | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 21.5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 16 |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A+++ to D |
| Annual energy consumption | 30 kWh |
| External power adapter | Yes |
| Weight & dimensions | |
| Width (with stand) | 492.8 mm |
| Depth (with stand) | 162.9 mm |
| Height (with stand) | 388.1 mm |
| Weight (with stand) | 2.1 kg |
| Width (without stand) | 492.8 mm |
| Depth (without stand) | 36.2 mm |
| Height (without stand) | 292.7 mm |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 120 mm |
| Package height | 370 mm |
| Package weight | 3.5 kg |
| Package type | Box |
| Packaging content | |
| Stand included | Yes |
| Cables included | HDMI |
| Power adapter included | Yes |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| Heavy metals free | Hg (mercury) |
| Energy efficiency class (old) | B |
| Light effects | No |
| Certification | True |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
