Samsung QB24C Digital signage flat panel 61 cm (24") LED Wi-Fi 250 cd/m² Full HD Black Built-in processor Tizen 16/7
- Brand
- Samsung
- Product Family
- QBC
- Product code
- LH24QBCEBGCXEN
- SKU
- BU8VKJNB8KCBM
- EAN/GTIN
- 8806095204994
- Digital signage flat panel Black
- 61 cm (24") 1920 x 1080 pixels LED 250 cd/m²
- 14 ms
- Ethernet LAN Wi-Fi
Product Info

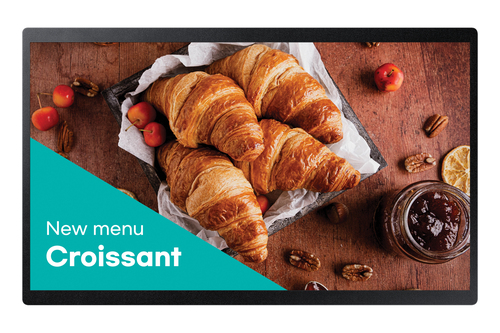

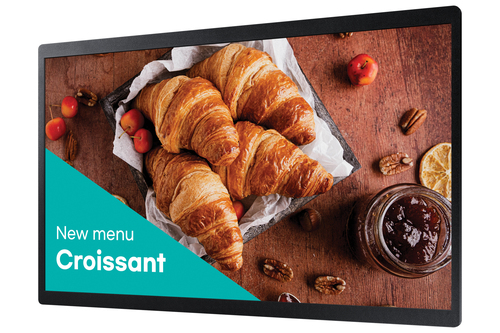

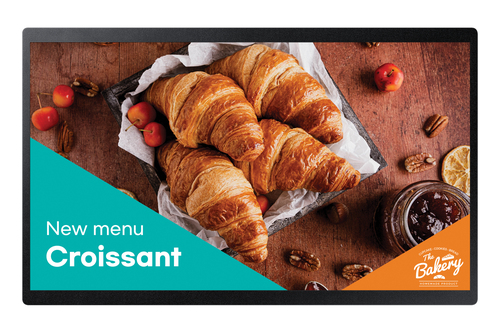

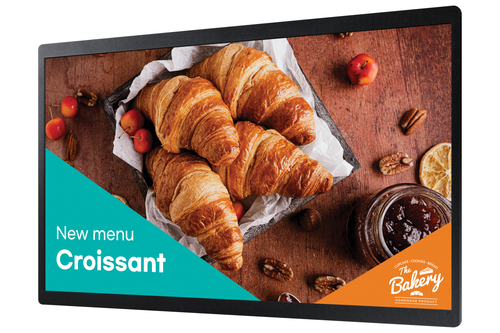

Expand commercial space with compact display
Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Hold sizable opportunities in small spaces

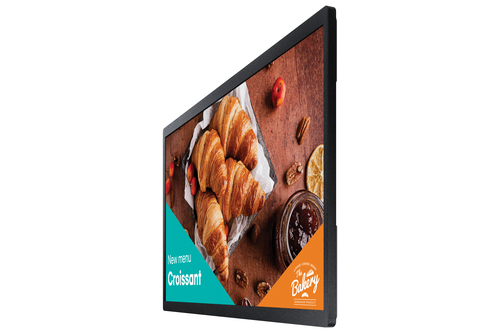

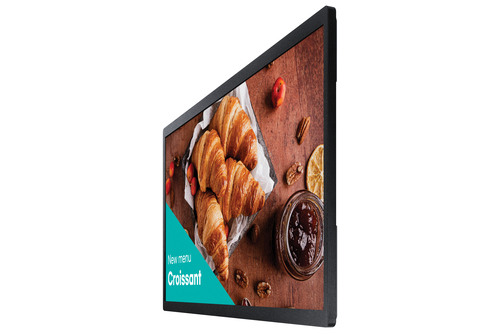

Compact Design

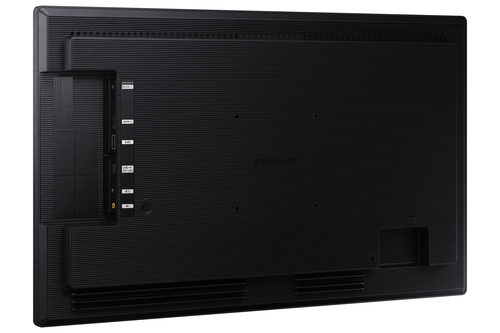

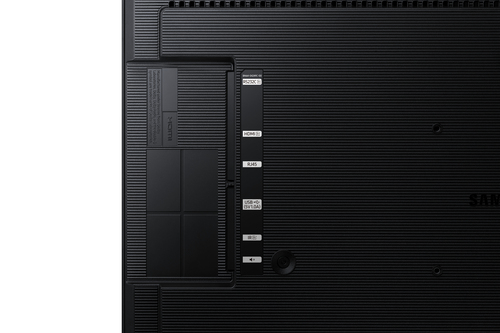

The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.
Connect with convenience
Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
| Display | |
|---|---|
| Panel type | ADS |
| Display diagonal | 61 cm (24") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 56 - 84.5 kHz |
| Vertical scan range | 48 - 75 Hz |
| Haze rate | 25% |
| RGB colour space | NTSC |
| Colour gamut | 72% |

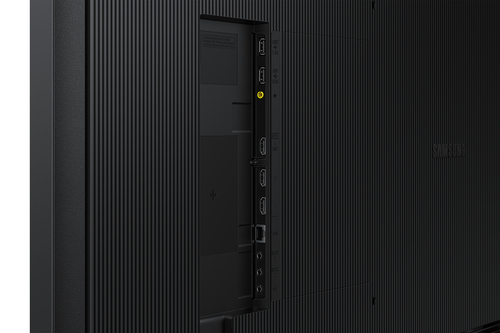

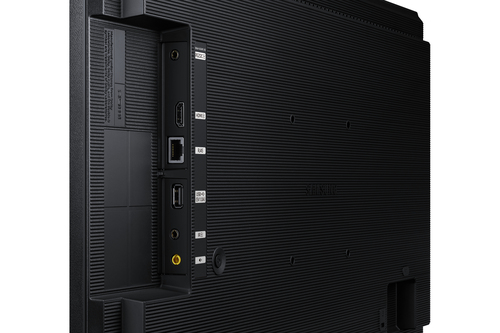

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI input ports quantity | 1 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232 interface | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Design | |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Screen shape | Flat |

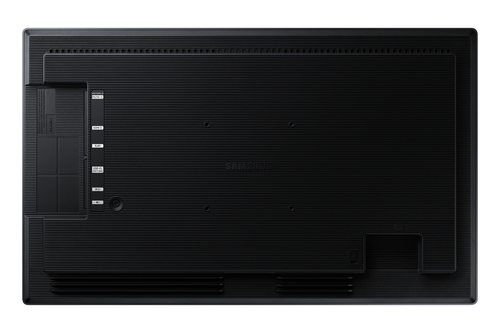

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 1.79 cm |
| Bezel width (side) | 9.4 mm |
| Bezel width (top) | 1.79 cm |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 38.5 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen |
| Operating system version | 7.0 |
| Weight & dimensions | |
| Display width | 547.9 mm |
| Display depth | 31.8 mm |
| Display height | 334.4 mm |
| Display weight | 3 kg |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 122 mm |
| Package height | 419 mm |
| Package volume | 4100 cm³ |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | Class B |
| Technical details | |
| Audio out (mini jack) | 1 |
| Other features | |
| Bluetooth | Yes |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RJ-45 input ports | 1 |
