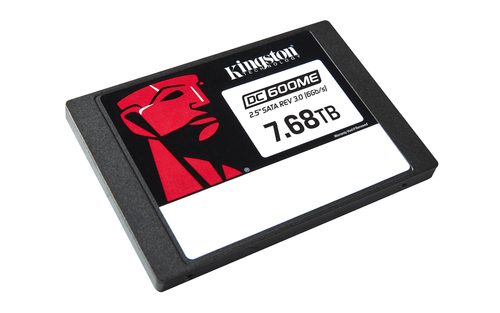

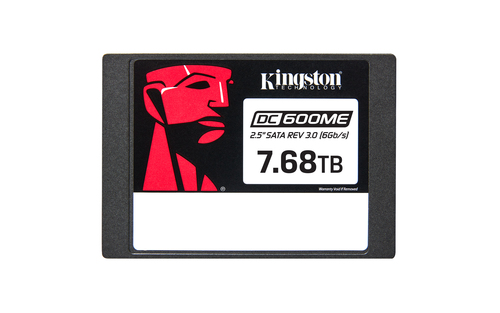

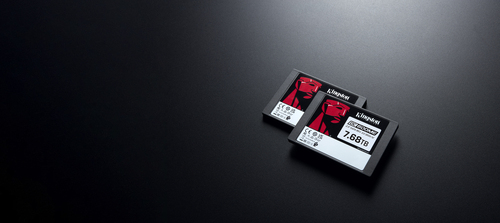

Kingston Technology 7680G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD
- Brand
- Kingston
- Product code
- SEDC600ME/7680G
- SKU
- 6LPU9RQQM65V5
- EAN/GTIN
- 740617347302
- Designed for data center environments
- Hardware-based power loss protection
- Latency and IOPS consistency
- AES 256-bit encryption with DC600ME
- Capacities of up to 7.68TB*
Product Info
Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.
DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.
Capacities available from 480GB–7.68TB* to meet your data storage requirements.

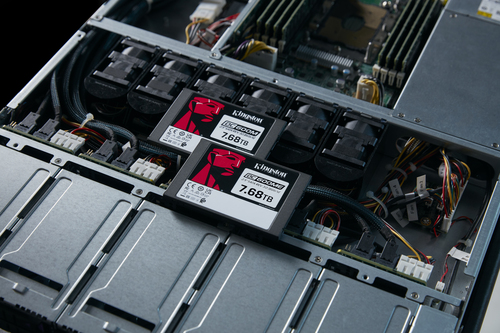

Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.
Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).
AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.
Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*
| Features | |
|---|---|
| Security algorithms | 256-bit AES |
| SSD capacity | 7.68 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Target workload | Mixed Use (MU) |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 530 MB/s |
| Random read (4KB) | 94000 IOPS |
| Random write (4KB) | 34000 IOPS |
| Read latency | 130 µs |
| Write latency | 70 µs |
| S.M.A.R.T. support | Yes |
| Hot-Plug support | Yes |
| H/W PLP function | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 14016 |
| Use conditions | Server/Enterprise |
| Power | |
| Power consumption (read) | 1.6 W |
| Power consumption (write) | 3.6 W |
| Power consumption (average) | 1.45 W |
| Power consumption (idle) | 1.3 W |
| Weight & dimensions | |
| Width | 69.8 mm |
| Depth | 100.1 mm |
| Height | 7 mm |
| Weight | 71 g |
| Packaging data | |
| Package width | 129.5 mm |
| Package depth | 9.14 mm |
| Package height | 184.2 mm |
| Package weight | 93.2 g |

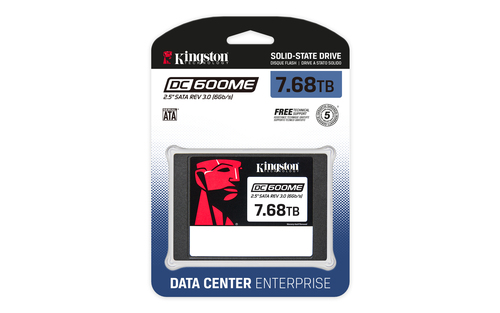

| Package type | Hanging box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
| Logistics data | |
| Country of origin | China, Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 1.01 kg |
| Products per master (outer) case | 10 pc(s) |
