Samsung OH24B Digital signage flat panel 61 cm (24") LCD Wi-Fi 1500 cd/m² Full HD Black Built-in processor Tizen 6.5 24/7
- Brand
- Samsung
- Product Family
- OHB
- Product code
- LH24OHBEBGBXEN
- SKU
- 9EVZ8PW3PYOAG
- EAN/GTIN
- 8806094640731
- High visibility
- Water and dust resistant
- Magic Protection Glass
Product Info
Deliver bright and brilliant messages, built for the outdoors
When it comes to providing concise communication for customers, Samsung’s OH46B features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH46B is packed with robust hardware, ensuring longevity and flexibility.
Clear and vivid anytime, anywhere
The OH46B is UL verified for outdoor visibility, with brightness levels over 3,500nits, delivering crisp content 24/7 and using a built-in auto brightness sensor adapts to external lighting. The screen uses a polarization technology to ensure viewing capability while wearing polarised lenses.
Bright and vivid colours for accurate communication and delivery
The OH46B delivers advanced color accuracy and brightness, creating vivid content through enhanced colour reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OH46B’s uncompromised picture quality will be sure to capture customer attention.
Enhanced visibility with anti-reflection technology
Samsung OH46B is enhanced by Magic Protection Glass, which utilises advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer.
Optimised protection in a variety of outdoor conditions
With certified IP56-rated protection, OH46B delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance.

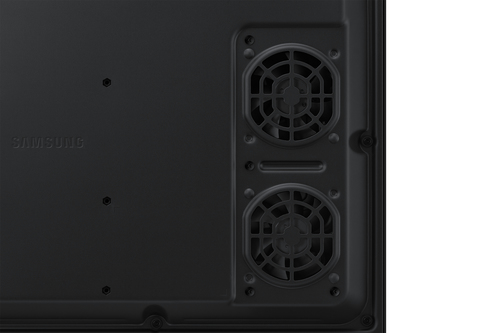

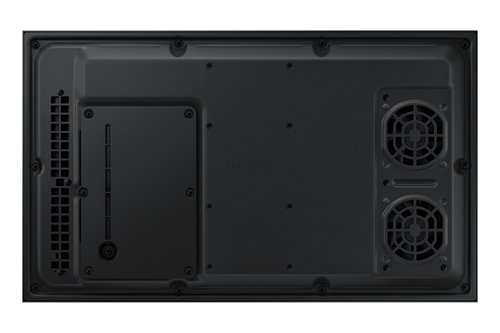

Prevent humidity for optimal performance with newly added fans
With four newly added, hidden fans in the downside of the display, the OH46B reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans enable seamless operation.
Robust durability for screen safety
Fitted with tempered Magic Protection Glass, the Samsung OH46B provides durability that is IK10-rated, ensuring advanced safety and protection against external impact. This ensures the product is safe against unexpected damage, giving store manager better peace of mind.
Powerful performance with slim design
A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.
Smooth and seamless content playback
The embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers.
Powerful, protective security
The OH46B uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimisation of security attacks.
| Display | |
|---|---|
| Panel type | IPS |
| Display diagonal | 61 cm (24") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 1500 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 75 Hz |
| Haze rate | 25% |
| Pixel frequency (max) | 594 MHz |
| Glass thickness | 3 mm |
| Glass film | AG/AR Film |
| RGB colour space | NTSC |
| Colour gamut | 72% |

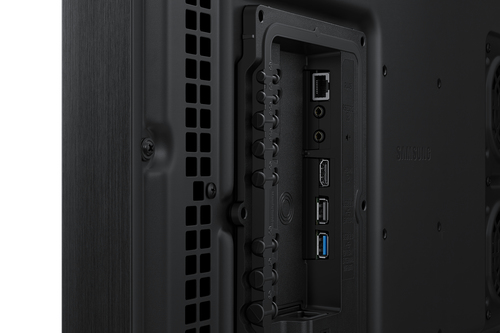

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| HDMI input ports quantity | 1 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Outdoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 2.19 cm |
| Bezel width (side) | 2.19 cm |
| Bezel width (top) | 2.19 cm |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 90 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen 6.5 |
| Weight & dimensions | |
| Display width | 573 mm |
| Display depth | 59.8 mm |
| Display height | 342.4 mm |
| Display weight | 8.4 kg |
| Packaging data | |
| Package width | 730 mm |
| Package depth | 140 mm |
| Package height | 438 mm |
| Package weight | 10 kg |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | Class A 60950-1, 62368-1 |
| Other features | |
| Bluetooth | Yes |
| Flash memory | 8000 MB |
| Glass protection | Yes |
