Samsung QB24R-B

Display

Panel type ADS

Display diagonal 61 cm (24")

Display technology LCD

Display resolution 1920 x 1080 pixels

Display brightness 250 cd/m²

HD type Full HD

Touchscreen No

Native aspect ratio 16:9

Response time 14 ms

Contrast ratio (typical) 1000:1

Dynamic contrast ratio marketing name Mega Contrast

Viewing angle, horizontal 178°

Viewing angle, vertical 178°

Pixel pitch 0.2745 x 0.2745 mm

Horizontal scan range 48 - 75 kHz

Vertical scan range 56 - 84.5 Hz

Haze rate 25%

Pixel frequency (max) 594 MHz

Colour gamut 72%

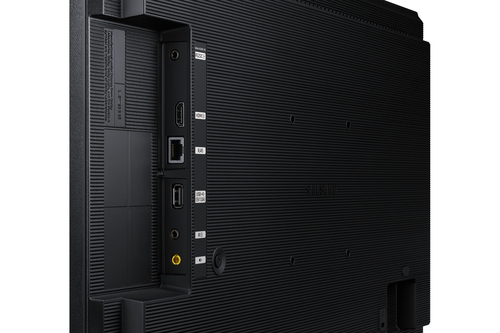

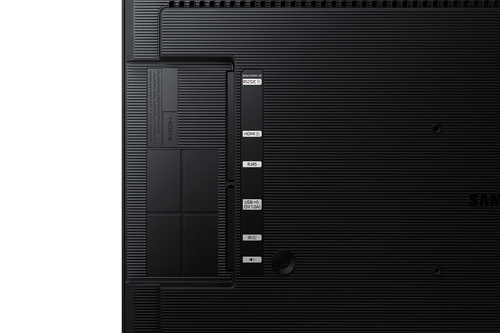

Ports & interfaces

HDMI ports quantity 1

HDMI version 1.4

HDMI input ports quantity 1

DVI port No

USB port Yes

USB ports quantity 1

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Wi-Fi Yes

RS-232 interface Yes

Infrared data port Yes

Remote (IR) input 1

Design

Product design Digital signage flat panel

Product colour Black

Screen shape Flat

VESA mounting Yes

Panel mounting interface 100 x 100 mm

Bezel width (bottom) 1.79 cm

Bezel width (side) 9.4 mm

Bezel width (top) 1.79 cm

Bezel colour Black

Performance

Purpose Universal

Operating hours (hours/days) 16/7

HDCP Yes

HDCP version 2.2

Power

Power consumption (typical) 38.5 W

Power consumption (sleep) 0.5 W

AC input voltage 100 - 240 V

AC input frequency 50 - 60 Hz

Computer system

Computer system Yes

Computer system type System on Chip (SoC)

Built-in processor Yes

Operating system installed Tizen 4.0

Weight & dimensions

Display width 547.9 mm

Display depth 31.8 mm

Display height 334.4 mm

Display weight 3 kg

Packaging data

Package width 620 mm

Package depth 122 mm

Package height 419 mm

Package weight 4.1 kg

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 10 - 80%

Certificates

Certification Class B 60950-1, 62368-1

Logistics data

Harmonized System (HS) code 85285210

Technical details

Audio out (mini jack) 1

Other features

Flash memory 8000 MB

RS-232 input ports 1

RJ-45 input ports 1
