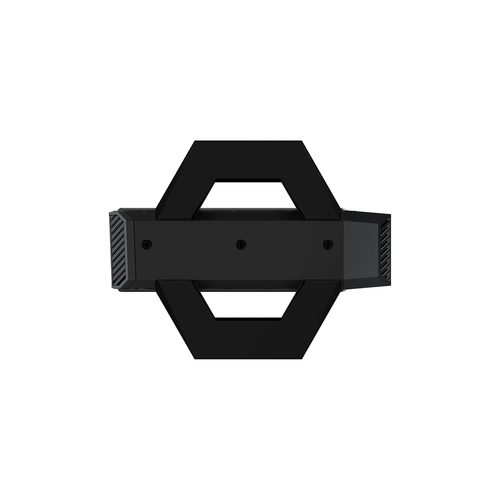

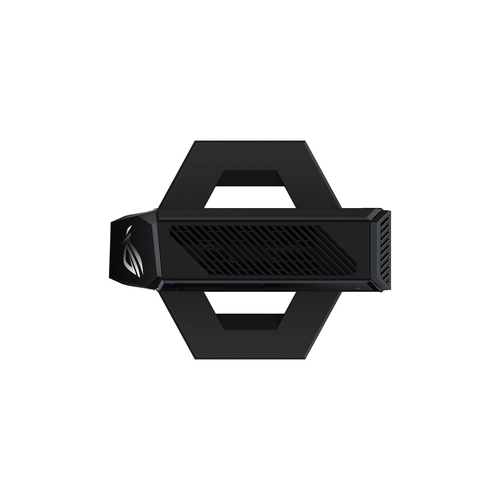

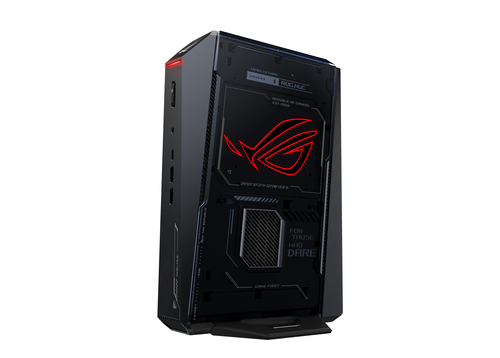

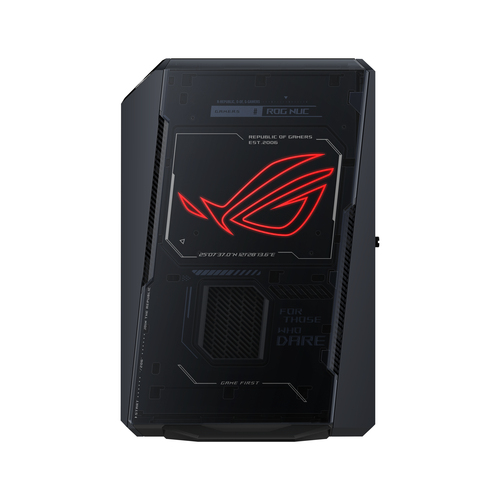

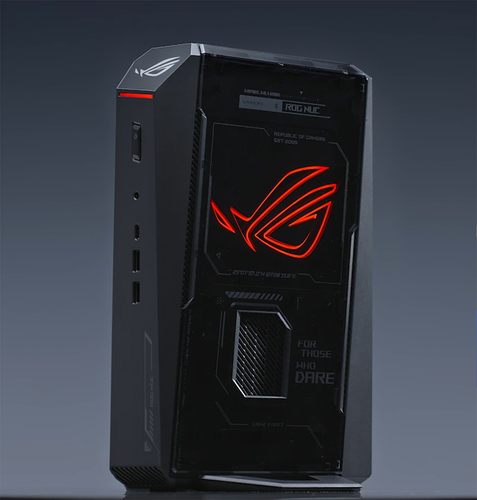

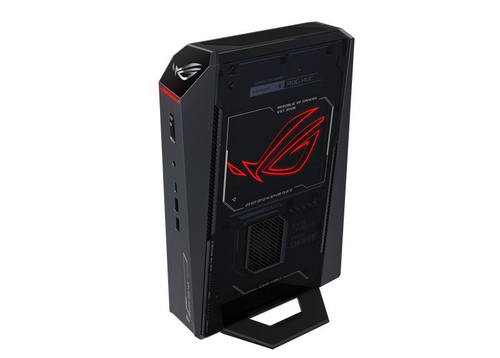

ASUS ROG NUC RNUC15JNK9X28AA2

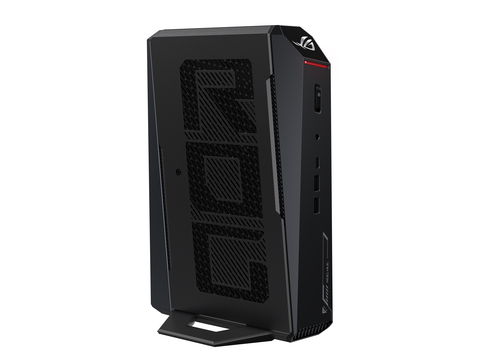

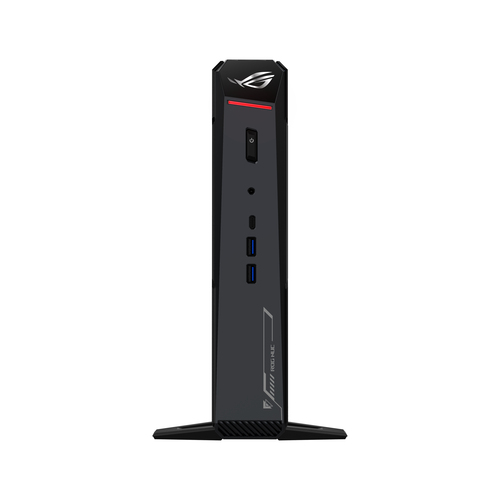

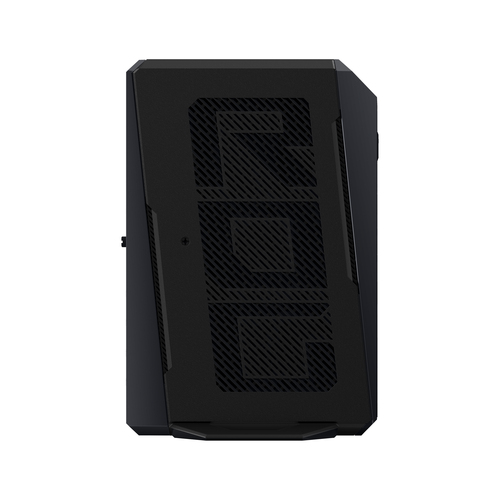

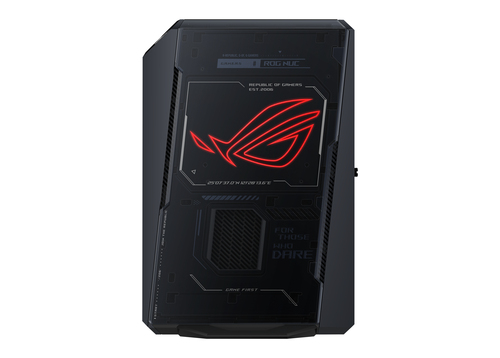

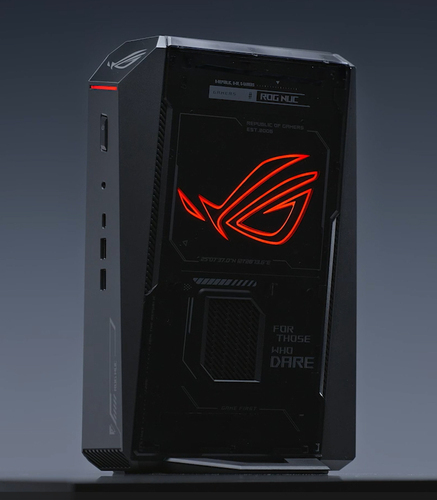

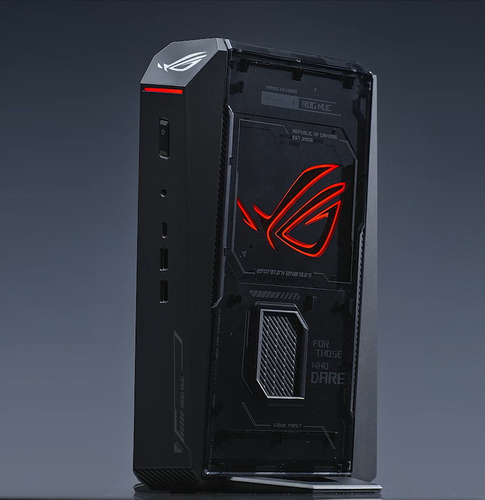

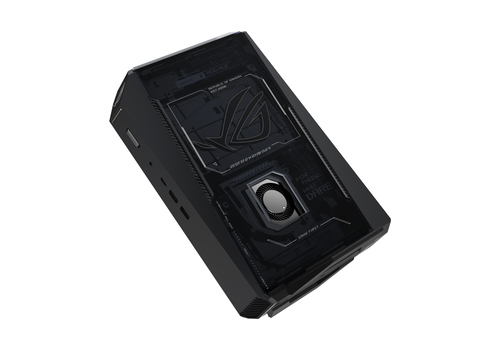

ASUS ROG NUC RNUC15JNK9X28AA2 Intel Core Ultra 9 275HX 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Windows 11 Home USFF Mini PC Black
- Brand
- Asus
- Product Family
- ROG
- Product series
- NUC
- Product code
- 90AS00I1-M00090
- SKU
- 6BVBWX1Q6JBTI
- Windows 11 Home 64-bit
- Intel Core Ultra 9 275HX (36MB Cache)
- NVIDIA GeForce RTX 5080 (16GB GDDR7)
- 32GB (6400MHz) DDR5-SDRAM (2 x 16) & 2000GB SSD
€4506.67
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

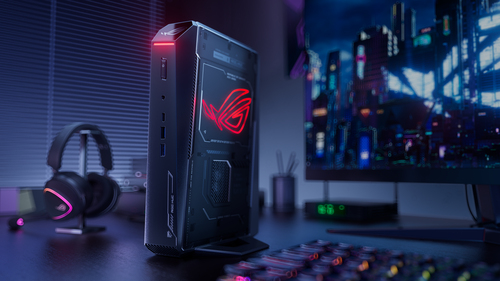

Gaming Redefined
Power Meets Precision

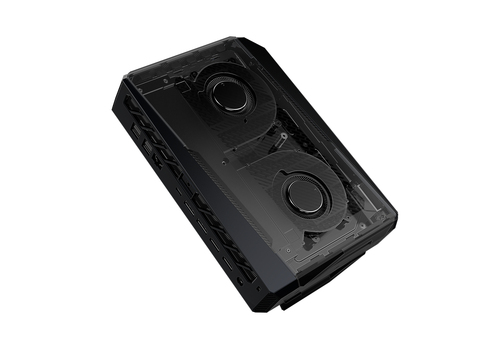

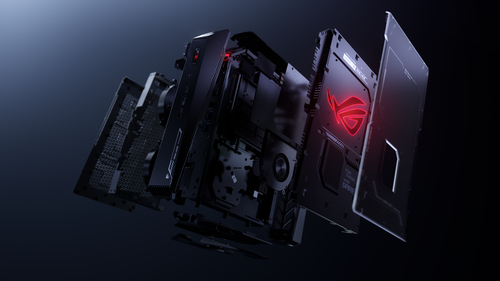

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core base frequency | 2.1 GHz |
| Processor cache | 36 MB |
| Processor base power | 55 W |
| Maximum turbo power | 160 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory clock speed | 6400 MHz |
| Storage | |
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

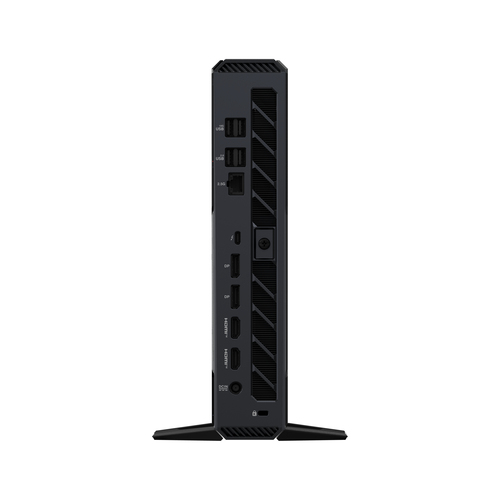

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Design | |
| Chassis type | USFF |
| Volume | 2.5 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Market positioning | Gaming |
| Audio chip | Realtek ALC3251 |
| Product type | Mini PC |
| Software | |
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Weight & dimensions | |
| Width | 282.4 mm |
| Depth | 187.7 mm |
| Height | 56.5 mm |
| Weight | 3.12 kg |
| Display | |
| Display included | No |
