Neomounts DS60-600BL3 Monitor arm 10-27" - Quick-fix - 180°-stop
- Brand
- NEOMOUNTS
- Product code
- DS60-600BL3
- SKU
- LOP2JXETNF8ZW
- EAN/GTIN
- 8717371446895
- Minimum screen size: 25.4 cm (10") Maximum screen size: 68.6 cm (27")
- Number of displays supported: 3
- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Height adjustment Tilt adjustment
- Cable management
- Steel Black
Product Info

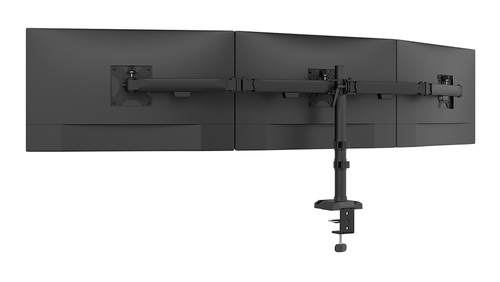

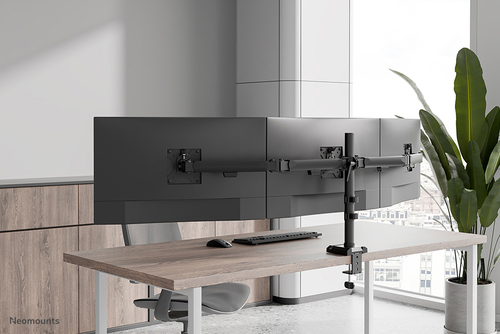

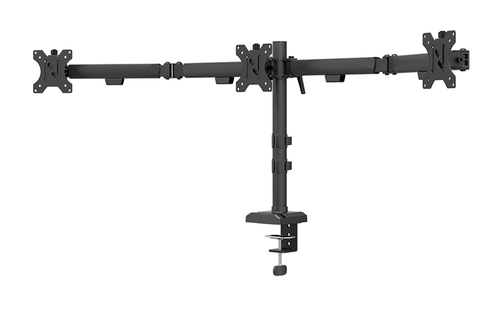

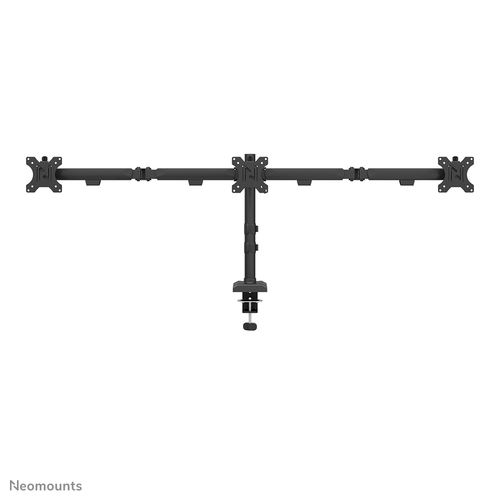

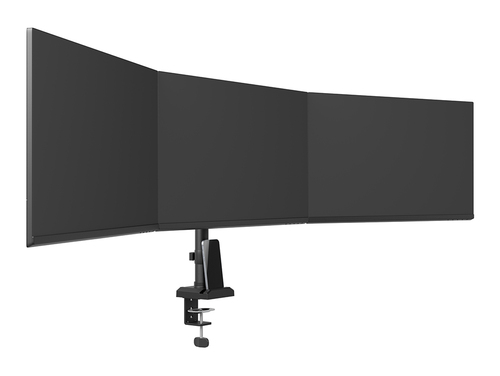

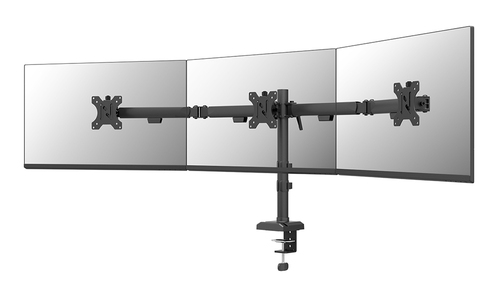

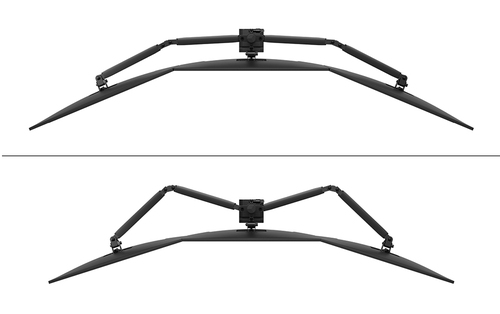

The Neomounts DS60-600BL3 NERO monitor arm is the perfect choice for those looking for a sturdy and versatile solution for three monitors up to 27" with a weight capacity of 6 kg per screen. This full motion monitor arm offers maximum flexibility thanks to its versatile tilt (90°), rotate (360°) and swivel (180°) technology, enabling you to always find the optimal viewing angle for an ergonomic working posture.

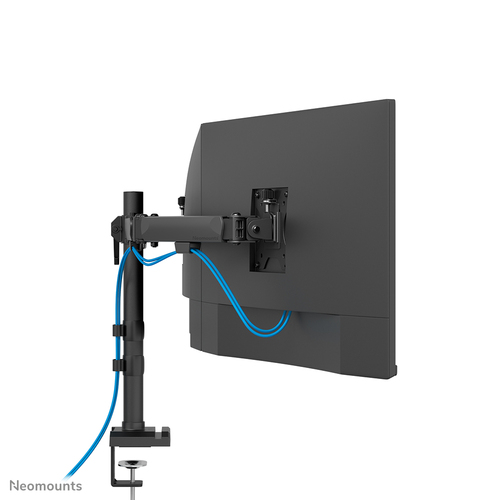

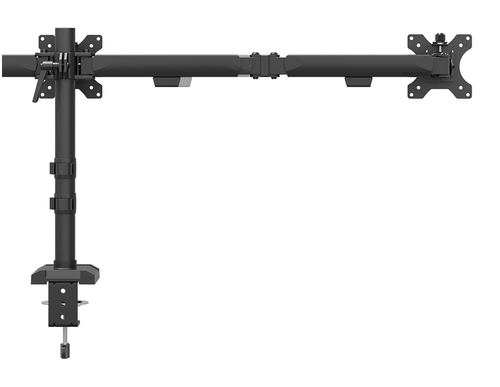

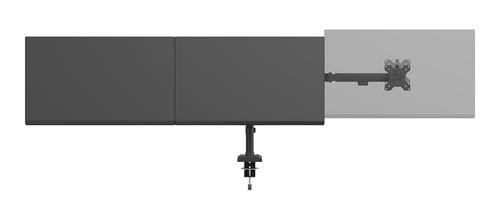

The NERO desk mount features manual height and depth adjustment, allowing you to adjust your workspace completely to your liking. In addition, the clever 180° stop mechanism prevents the mount from making contact with the wall or separation panel when installed near it. The welded base guarantees optimal stability and sturdiness. The practical cable management system ensures neat routing of cables. In addition, the base of the DS60-600BL3 provides a convenient space to place a phone, for a tidy desk.
The DS60-600BL3 is suitable for screens that meet pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. For a seamless connection of the screens, the micro-adjustment function can be used.

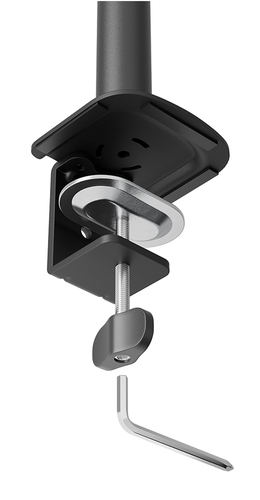

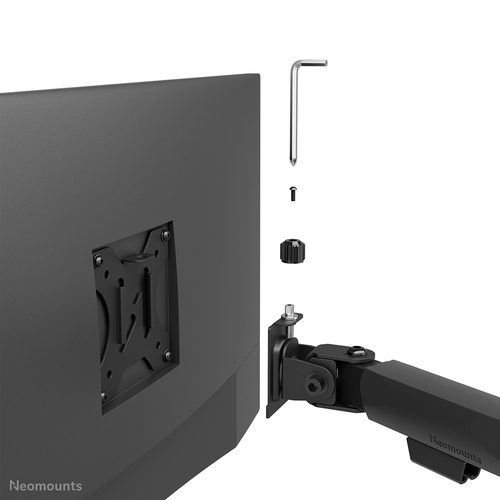

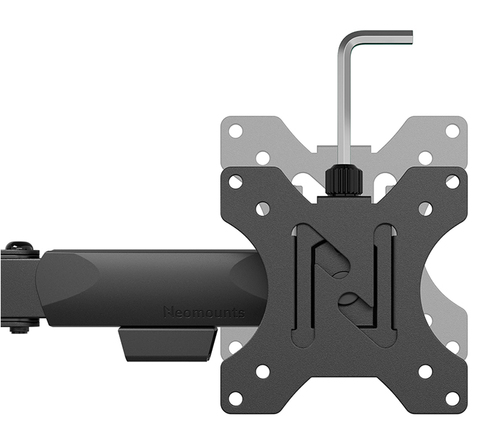

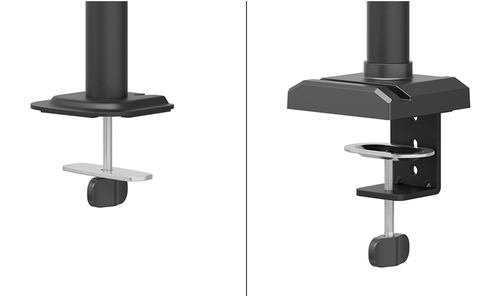

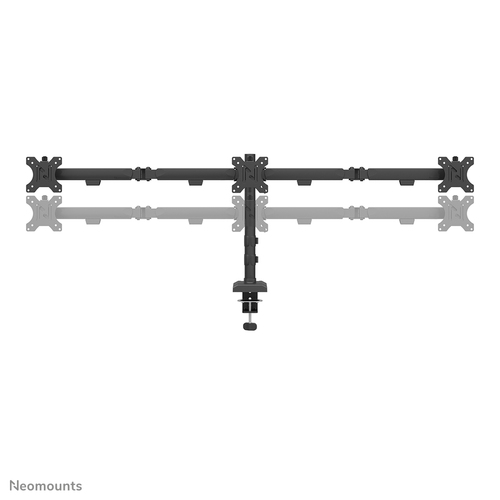

Installation of the NERO is quick and easy. The Easy-release system makes it easy to attach or detach the screen. Additionally, fixing the clamp to the desk only takes a few actions and, in addition to manual installation, can also be installed using an Allen key or drill for even faster installation. The NERO monitor arm's quick-span lever also allows for easy adjustment of the arm's height without additional tools.
With sustainability in mind, the packaging of the NERO monitor arms is 100% plastic-free and made entirely of recyclable cardboard and paper.

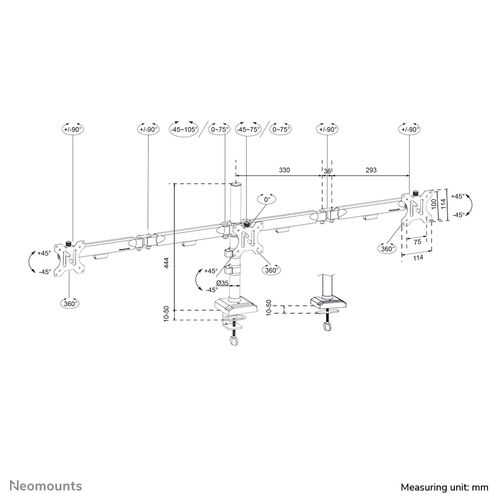

| Mounting | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 3 |
| Maximum weight capacity (per display) | 6 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5 cm |
| Distance to the wall (min) | 13.7 cm |
| Distance to the wall (max) | 60.1 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 140 - 400 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 137 - 601 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 1424 mm |
| Depth | 137 mm |
| Height | 450 mm |
| Weight | 4.81 kg |
| Packaging data | |
| Package width | 322 mm |
| Package depth | 124 mm |
| Package height | 505 mm |
| Package weight | 5.3 kg |
| Other features | |
| Warranty period | 5 year(s) |
| Logistics data | |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 11.2 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 10.6 kg |
| Harmonized System (HS) code | HS7326909890 |
| Products per pallet (EU) | 48 pc(s) |
