Neomounts CL35-440BL16L Monitor/TV mount ceiling 37-70" - h 106-156 cm
- Brand
- NEOMOUNTS
- Product code
- CL35-440BL16L
- SKU
- B7WUMQZ5QEMQN
- EAN/GTIN
- 8717371447878
- Maximum weight capacity: 50 kg
- Minimum screen size: 94 cm (37") Maximum screen size: 177.8 cm (70") Ceiling
- Minimum VESA mount: 150 x 200 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 1
- Height adjustment Manual Tilt adjustment Rotating
- Cable management
- Steel Black
Product Info

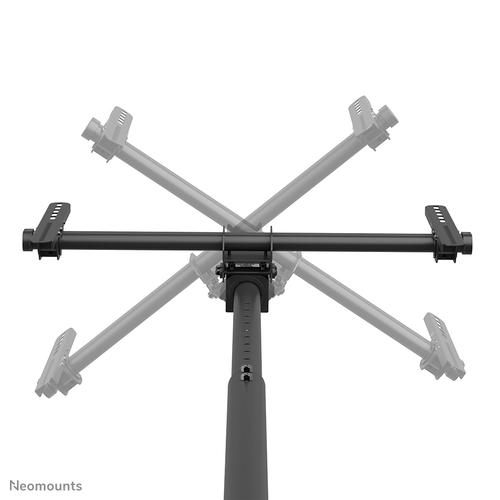

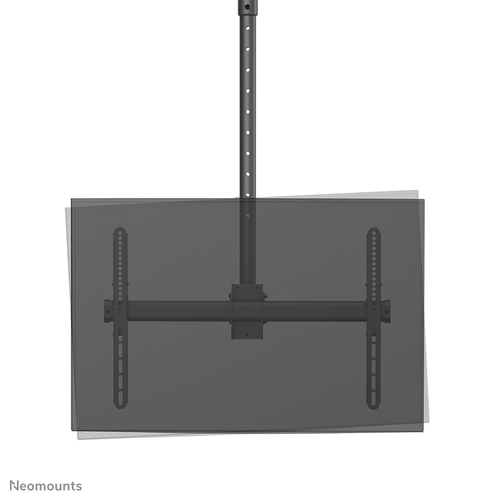

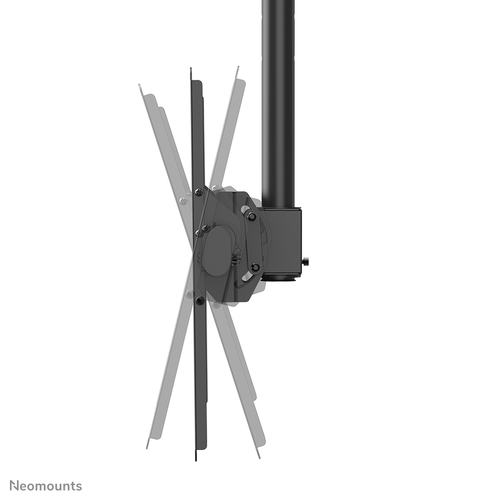

The Neomounts CL35-440BL16L is a full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

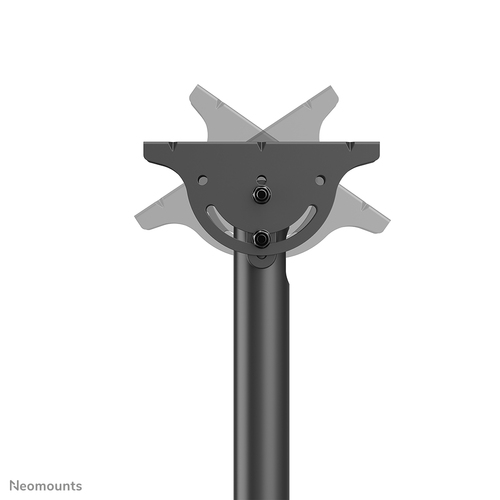

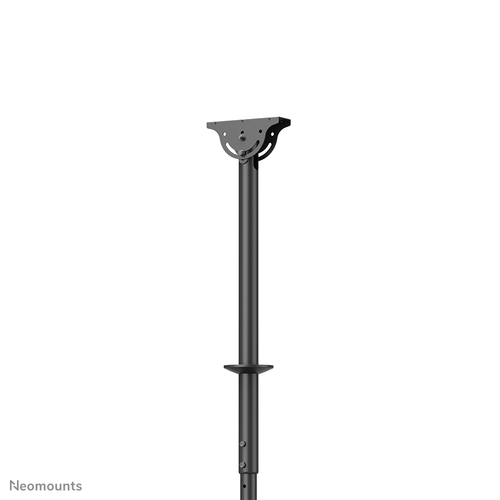

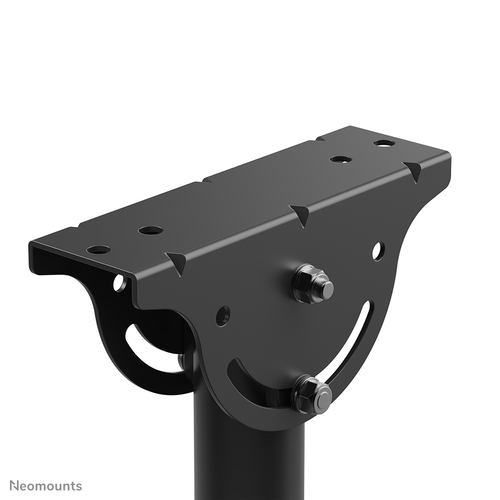

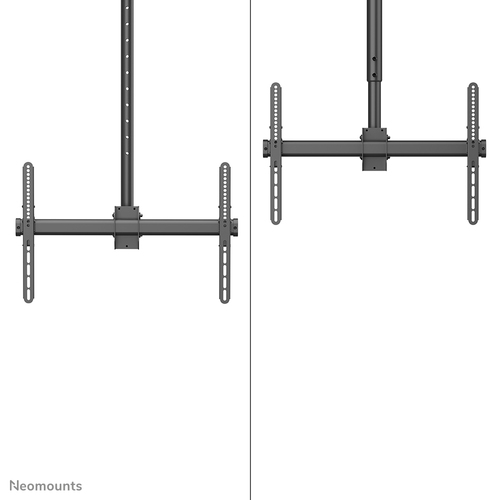

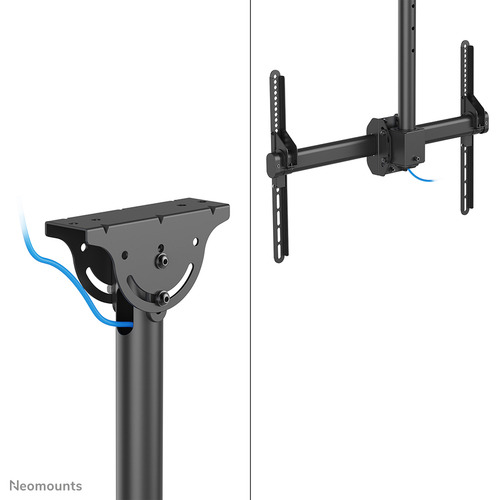

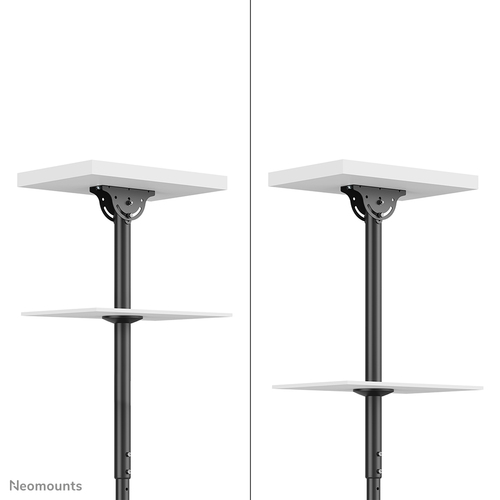

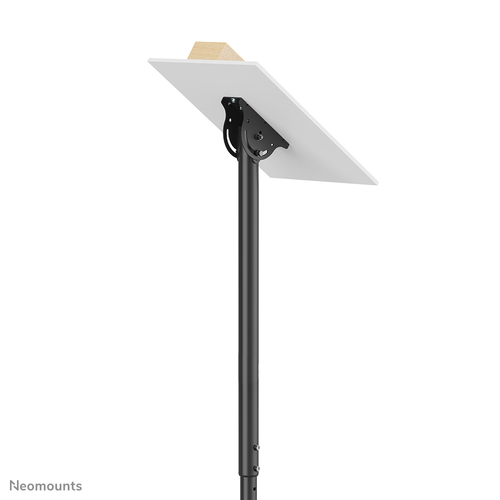

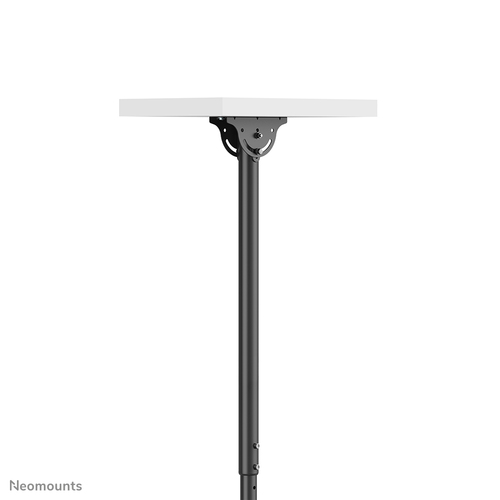

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-440BL16L is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
| Mounting | |
|---|---|
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 150 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,350 x 350,400 x 200,150 x 200,200 x 150 |
| Mounting type | Ceiling |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |

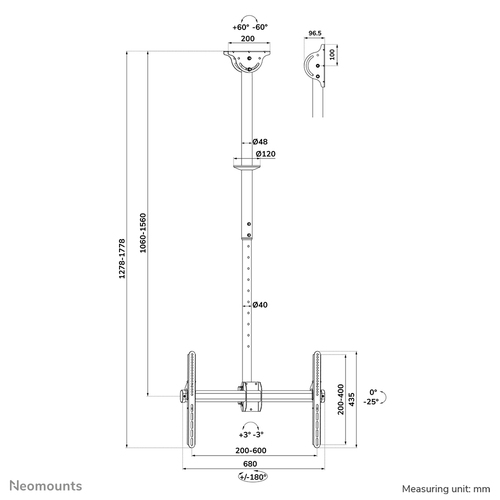

| Height adjustment range | 1060 - 1560 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -25 - 0° |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Rotating | Yes |
| Angle of rotation | 3° |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 680 mm |
| Depth | 138 mm |
| Depth (max) | 13.8 cm |
| Height | 1780 mm |
| Weight | 6.36 kg |
| Packaging data | |
| Package width | 310 mm |
| Package depth | 145 mm |
| Package height | 935 mm |
| Package weight | 7.8 kg |
| Logistics data | |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 955 mm |
| Master (outer) case gross weight | 166 g |
| Master (outer) case net weight | 156 g |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | HS7326909890 |
| Products per pallet (EU) | 20 pc(s) |
