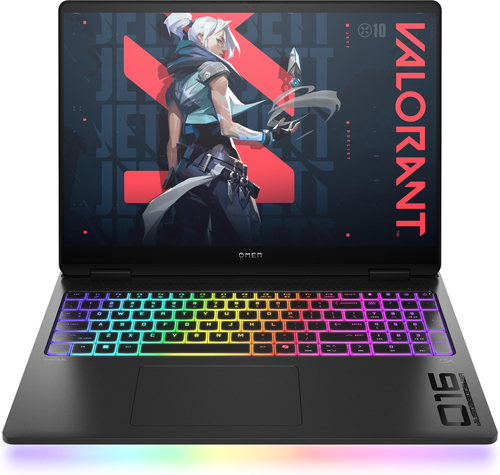

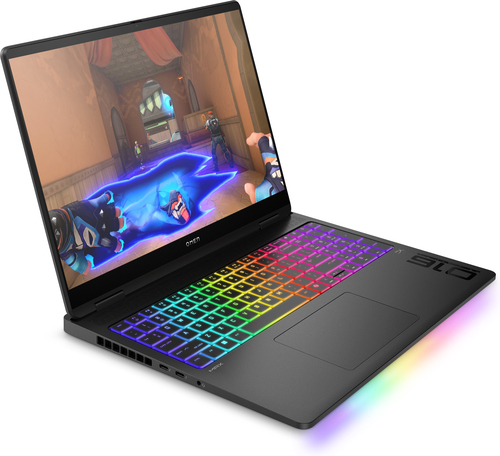

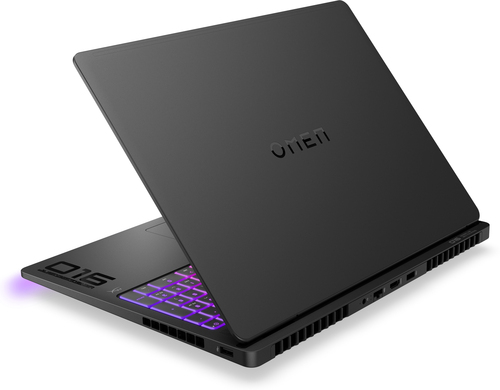

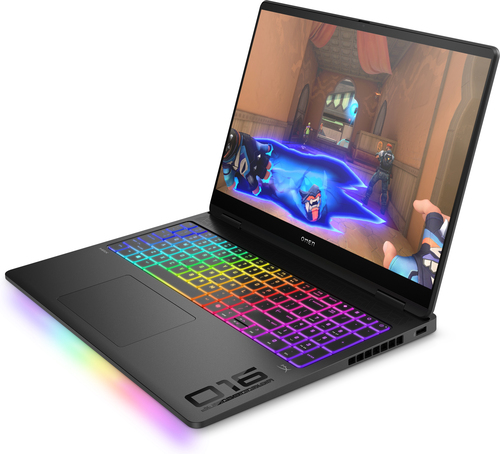

HP OMEN MAX 16-ah0007na Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5080 Wi-Fi 7 (802.11be) Windows 11 Home AI PC Black
- Brand
- HP
- Product Family
- OMEN MAX
- Product code
- B8BL1EA#ABU
- SKU
- Y7HM4H3YEB410
- EAN/GTIN
- 198990491172
- Intel® Core™ Ultra 9 275HX (up to 5.4 GHz with Intel® Turbo Boost Technology, 36 MB L3 cache, 24 cores, 24 threads)
- Windows 11 Home
- 40.6 cm (16") diagonal WQXGA display
- NVIDIA® GeForce RTX™ 5080 Laptop GPU (16 GB GDDR7 dedicated)
- 32 GB memory;1 TB SSD storage
Product Info
Built to break limits
The OMEN 16 MAX gaming laptop provides unparalleled performance both at-home or on-the-go. With next-gen NVIDIA® GPUs and Intel® Core™ Ultra CPUs[1], a new Unleashed Mode for manual overclocking, and a thermal architecture built to cut down on both throttling and long term wear, dedicated gamers can achieve their best for years to come.
Description
Eyesafe® Certified Display
Eyesafe® certified displays meet TÜV low blue light requirements and Eyesafe® standards for protecting your eyes from harmful blue light without distorting colors to reduce eyestrain when working for long periods of time.
16:10 aspect ratio
A 16:10 aspect ratio lets you see more of your content with less scrolling.
100% sRGB
Showcase your creations in all their colors on the 100% sRGB display for maximum color broadness and accuracy.
Instant pair with HyperX
Instantly connect up to three HyperX devices to your laptop at once, like a mouse, headset, and controller.
Put your throttling on ice
Self-cleaning fans, a vapor chamber, and liquid metal ensure your laptop stays cool and reduces maintenance.
Performance you control
Throttle less and carry more with the latest Intel® Core™ Ultra CPUs[1] and next-gen NVIDIA® RTX™ graphics.
Light the way you play
Customize your lattice-less RGB keyboard and other lighting options in OGH to represent your unique style.
Desktop-level performance anywhere
Level up your PC with advanced performance, enhanced AI, and a CPU designed to defy expectations [3]
Get a fresh perspective
From a rejuvenated Start menu, to new ways to connect to your favorite people, news, games, and content—Windows 11 is the place to think, express, and create in a natural way. [2]
NVIDIA® G-SYNC™
By synchronizing the refresh rates of your GPU and display, NVIDIA® G-SYNC™ technology delivers gameplay that’s sharp, fluid, and stutter-free with minimal input lag.
Thoughtful design
HP incorporates increasing amounts of recycled, renewable, and non-virgin raw materials. Built with the environment in mind, this product includes a percentage of ocean-bound plastic in the design. [8]
Keyboard contains post-consumer recycled plastic
We're bringing a more thoughtful design to our keyboards by using post-consumer recycled plastic in the design. [9]
HP Fast Charge
When your laptop is low on power, no one has time to wait hours to recharge. Power down your device and go from 0 to 50% charge in approximately 30 minutes. [10]
Enjoy a smooth wireless experience with a Wi-Fi 7 (2x2) and Bluetooth® 5.4 combo.
Enjoy a smooth wireless experience with a Wi-Fi 7 (2x2) and Bluetooth® 5.4 combo. [11]
HP True Vision FHD IR camera
Log in safely through Windows Hello with the infrared sensor. With an 88-degree, wide-angle field of view, you can video chat with your entire family or group of friends in stunning detail. [12]
Thunderbolt™ 4 with USB™ Type-C®
The latest Thunderboltâ„¢ solution lets you power your device or connect up to two 4K displays with a single cable and blazing 40Gbps signaling rate.
McAfee® LiveSafe™
Free 12-month subscription of McAfee® LiveSafe™ service included. McAfee® LiveSafe™ service enriches your digital life by protecting your data, identity and all your devices so you can connect with confidence. [13]
HP Audio Boost
Take your audio experience to the next level with smart amplification technology giving you loud, clear and dynamic sound.
Wide Quad Extended Graphics Array Display
Get lost in the captivating definition with 2560 × 1600 pixels. [4]
3ms response time
How fast your display’s pixels respond is crucial for a smooth picture. With a 3-millisecond response time, your action-filled content will look crisp and fluid without motion blur. [5]
Flicker-free
Using DC Dimming technology that controls brightness by adjusting direct current rather than cycling the backlight, we can eliminate screen flickering for more comfortable viewing. [6]
Try PC Game Pass for free with your new HP device
Play hundreds of high-quality PC games with your new HP gaming device and 3 free months of PC Game Pass – including EA play. With new games added all the time, there’s always something new to play. [7]
| Design | |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Introduction year | 2025 |
| Original brand name | HP |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display bezel technology | Micro-Edge |
| Display brightness | 500 cd/m² |
| Display diagonal (metric) | 40.6 cm |
| RGB colour space | NTSC |
| Colour gamut | 100% |
| Display response rise/fall | 3 ms |
| Maximum refresh rate | 240 Hz |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 275HX |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core base frequency | 2.1 GHz |
| Processor cache | 36 MB |
| Processor base power | 55 W |
| Maximum turbo power | 160 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots (available) | 2 |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 5.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

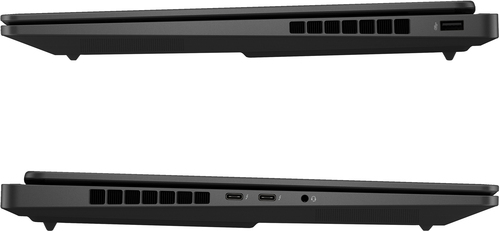

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 3 |
| Performance | |
| Motherboard chipset | Intel HM870 |
| Keyboard | |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard backlit colour | RGB |
| Full-size keyboard | Yes |
| Keyboard colour name | Shadow black |
| Software | |
| Pre-installed software | Otter.ai, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; Xbox Game Pass 1-month free trial; PC Game Pass 3-month trial |
| Operating system installed | Windows 11 Home |
| Brand-specific features | |
| HP Audio Boost | Yes |
| HP speaker type | HP Dual Speakers |
| HP Imagepad | Yes |
| HP front camera | HP TrueVision FHD IR |
| HP Security tools | Camera privacy shutter; Trusted Platform Module (Firmware TPM) support |
| HP Software provided | HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub |
| HP segment | Home |
| HP GTIN (EAN/UPC) | 198990491172 |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
| Battery capacity | 83 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Power | |
| AC adapter power | 330 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainable technologies and materials | Ocean-bound plastic in bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, base and hinge cap(s) |
| Weight & dimensions | |
| Width | 356.5 mm |
| Depth | 269 mm |
| Height (front) | 2.29 cm |
| Height (rear) | 2.48 cm |
| Weight | 2.68 kg |
| Packaging data | |
| Package width | 94 mm |
| Package depth | 428 mm |
| Package height | 332 mm |
| Package weight | 4.74 kg |
| Packaging content | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 8471300000 |
| Technical details | |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com |
| Other features | |
| Manufacturer warranty | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. |
