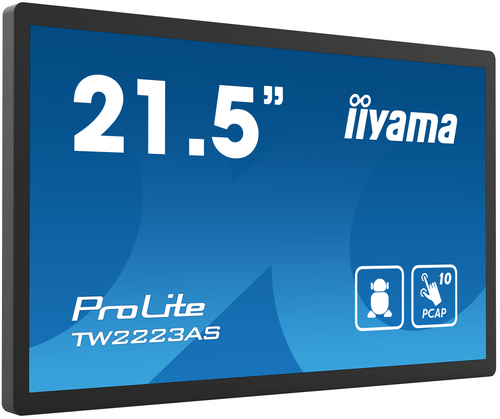

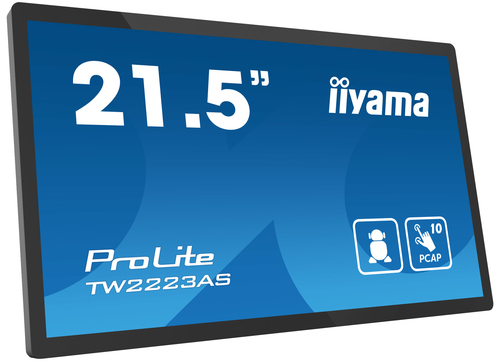

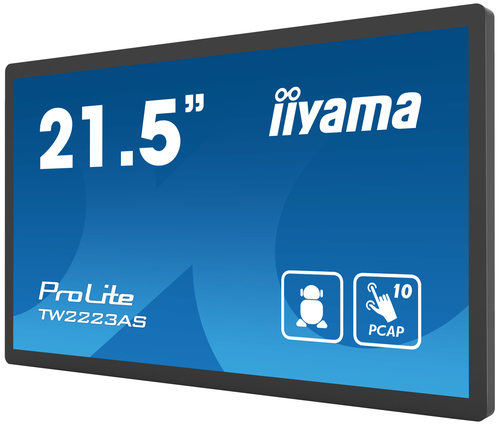

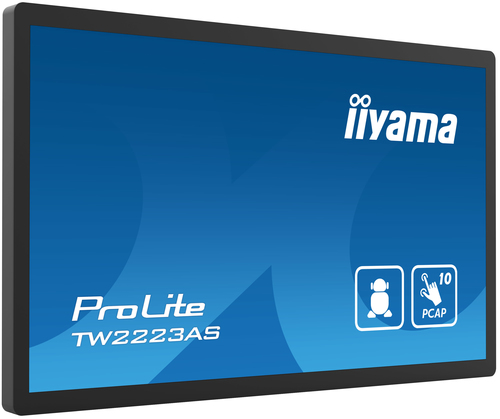

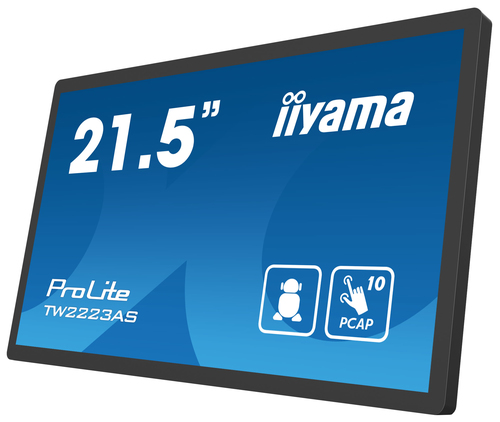

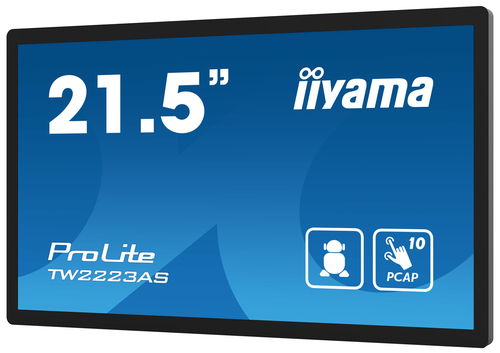

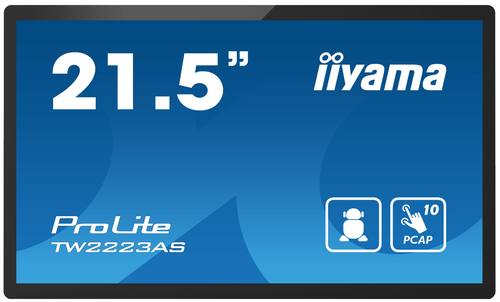

iiyama 21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design
- Brand
- Iiyama
- Product code
- TW2223AS-B2
- SKU
- G3B7LHMV3Y1ZM
- EAN/GTIN
- 4948570124787
- Indoor Interactive flat panel Black
- 54.6 cm (21.5") 1920 x 1080 pixels 400 cd/m²
- Touchscreen 18 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 4 W
Product Info
The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
| Display | |
|---|---|
| Panel type | VA |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 18 ms |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Active display area (W x H) | 478 x 269.5 mm |
| Display diagonal (metric) | 54.6 cm |
| Horizontal scan range | 30 - 84 kHz |
| Surface hardness | 6H |
| Glass thickness | 2.9 mm |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| USB port | Yes |
| USB ports quantity | 5 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |

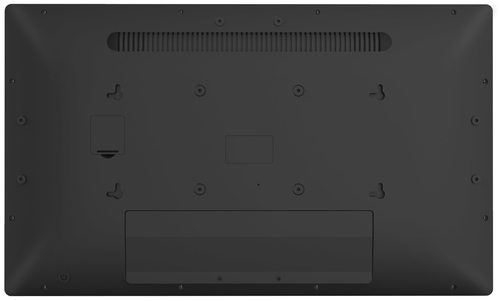

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 23 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Computer system | |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor family | ARM Rockchip |
| Processor frequency | 1.8 GHz |
| Processor cores | 2 |
| Internal memory | 4 GB |
| On-board graphics card model | A72 + A53 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 12 |
| Weight & dimensions | |
| Display width | 504.5 mm |
| Display depth | 32 mm |
| Display height | 302 mm |
| Display weight | 3.61 kg |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 121 mm |
| Package height | 410 mm |
| Package weight | 5.98 kg |
| Packaging content | |
| Cables included | AC |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Technical details | |
| Audio out (mini jack) | 1 |
| Other features | |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
