iiyama ProLite Open Frame PCAP 30-point touch monitor with equipped with a foam seal finish for seamless integration
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- TF3215MC-B2
- SKU
- N06U46OCNOOGR
- EAN/GTIN
- 4948570123667
- Touchscreen 81.3 cm (32") LED VA
- Full HD 1920 x 1080 pixels 16:9
- 8 ms 460 cd/m² 16:9
- F 31 kWh 32 W
Product Info

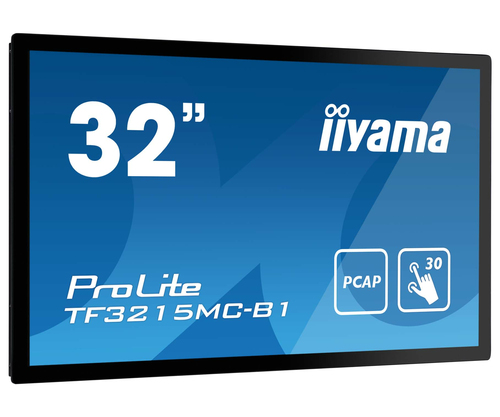

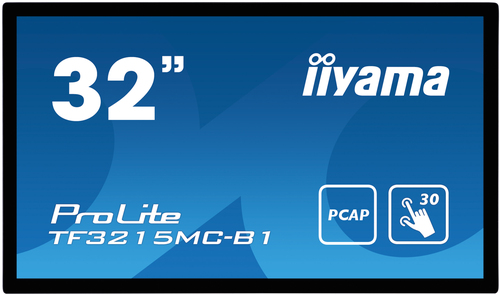

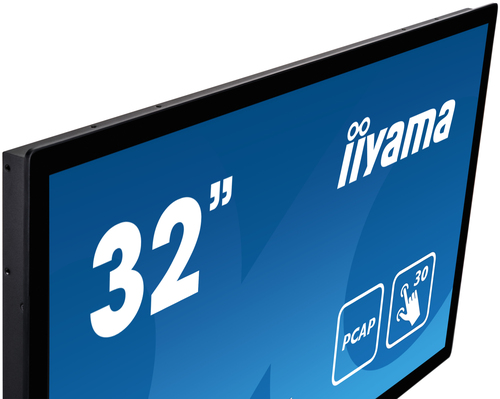

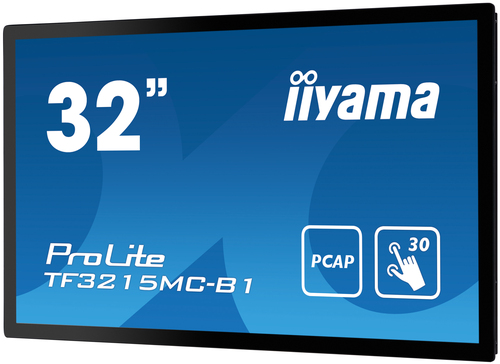

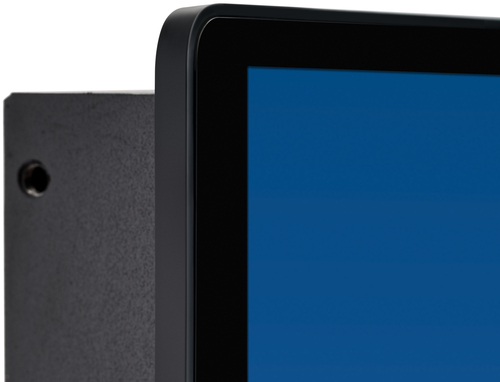

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks.

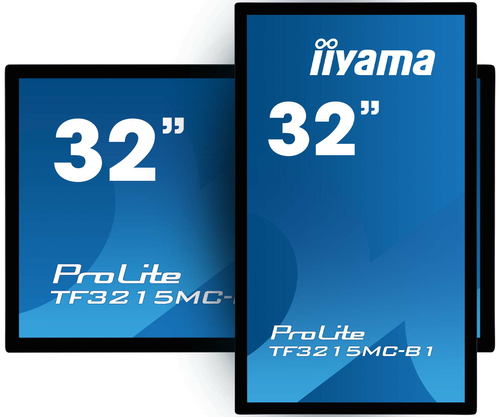

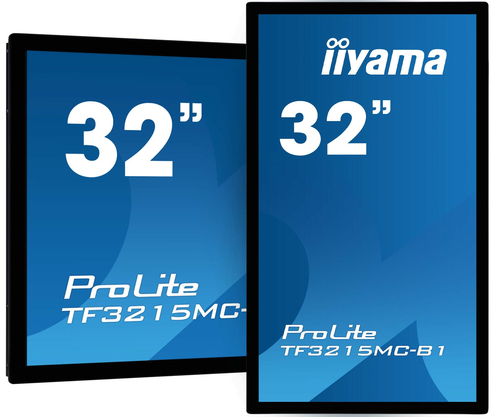

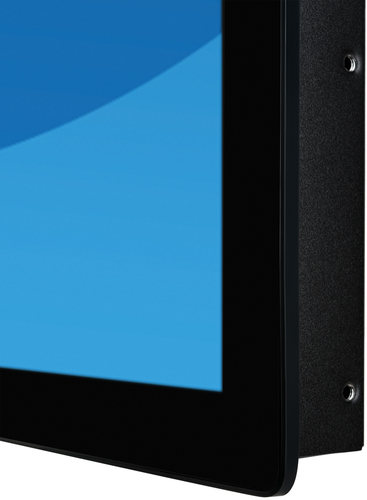

Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
| Display | |
|---|---|
| Display diagonal | 81.3 cm (32") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen | Yes |
| Touchscreen type | Kiosk |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 30 |
| Display brightness (peak) | 500 cd/m² |
| Display brightness (typical) | 460 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 16:9 |
| Contrast ratio (dynamic) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Horizontal scan range | 30 - 68 kHz |
| Vertical scan range | 47 - 63 Hz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Display diagonal (metric) | 80 cm |
| Surface hardness | 7H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Housing material | Metal |
| Glass thickness | 3 mm |

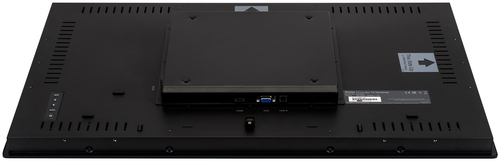

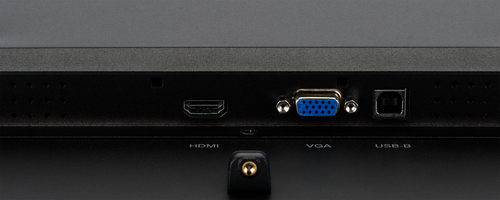

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |

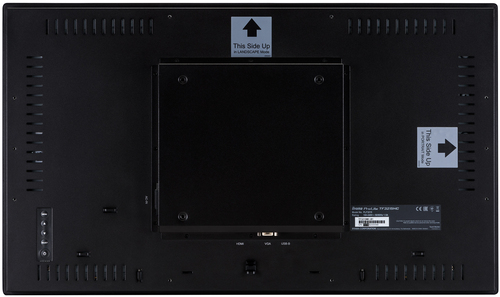

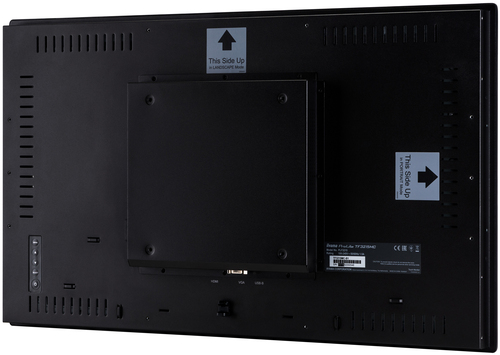

| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Wall mountable | Yes |
| Cable management | Yes |
| Cable lock slot | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 31 kWh |
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 466703 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (without stand) | 742.5 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 437 mm |
| Weight (without stand) | 10 kg |
| Packaging data | |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 13.3 kg |
| Packaging content | |

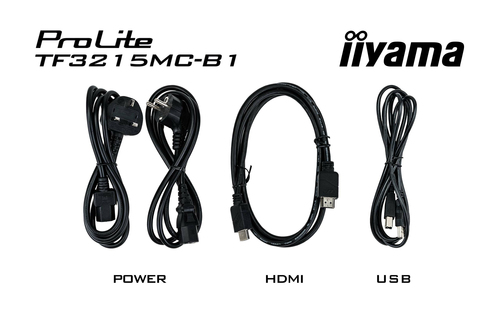

| Cables included | AC, HDMI, USB |
| Quick start guide | Yes |
| Other features | |
| International Protection (IP) code | IP65 |
| Full HD | Yes |
