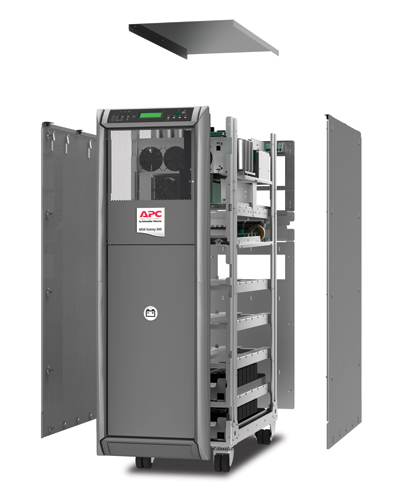

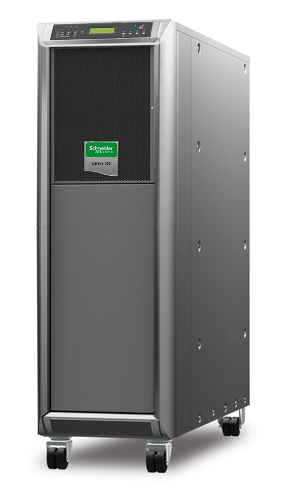

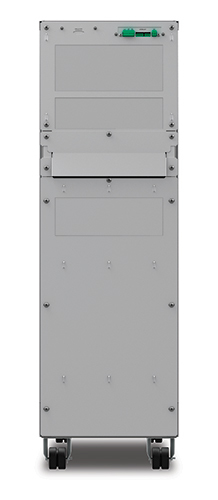

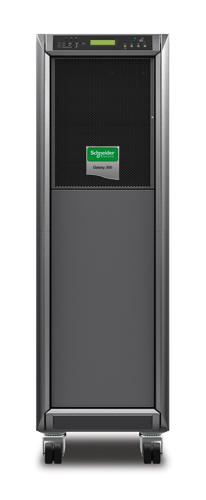

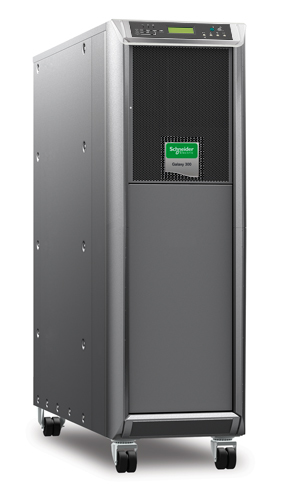

APC G3HT20KHB2S uninterruptible power supply (UPS)

G3HT20KHB2S - 0731304285755

APC G3HT20KHB2S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 16000 W 1 AC outlet(s)

Brand: APC
Product code: G3HT20KHB2S
SKU: UZJEAC3J5PLCY
EAN/GTIN: 0731304285755

Double-conversion (Online)
20 kVA 16000 W
Waveform: Sine
1 AC outlet(s)
Sealed Lead Acid (VRLA) 192 V
Tower Black, Grey

€7891.67 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC G3HT20KHB2S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: Hard Wire 5-wire (3PH + N + G), Power plug: Terminal, AC outlets quantity: 1 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 192 V. Form factor: Tower, Product colour: Black, Grey, Display type: LCD. Compliance certificates: RoHS, Certification: CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TÜV, VFI-SS-111

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 20 kVA

Output power 16000 W

Waveform Sine

Input operation voltage (min) 323 V

Input operation voltage (max) 477 V

Input frequency 45/65 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 43 A

Crest factor 2.5:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 5%

Noise level 54.5 dB

Ports & interfaces

AC outlet types Hard Wire 5-wire (3PH + N + G)

Power plug Terminal

AC outlets quantity 1 AC outlet(s)

Serial interface Yes

Serial interface type RS-232

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 192 V

Design

Form factor Tower

Product colour Black, Grey

Display type LCD

International Protection (IP) code IP20

Operational conditions

Operating temperature (T-T) 0 - 35 °C

Storage temperature (T-T) -10 - 60 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 9000 m

Certificates

Compliance certificates RoHS

Certification CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TÜV, VFI-SS-111

Packaging content

Manual Yes

Quick installation guide Yes

Weight & dimensions

Width 400 mm

Depth 950 mm

Height 1300 mm

Weight 375 kg

Packaging data

Software CD Yes

Package width 800 mm

Package depth 965 mm

Package height 1440 mm

Package weight 400 kg
