ASUS ROG STRIX B860-I GAMING WIFI

90MB1JB0-M0EAY0 - 4711387815991

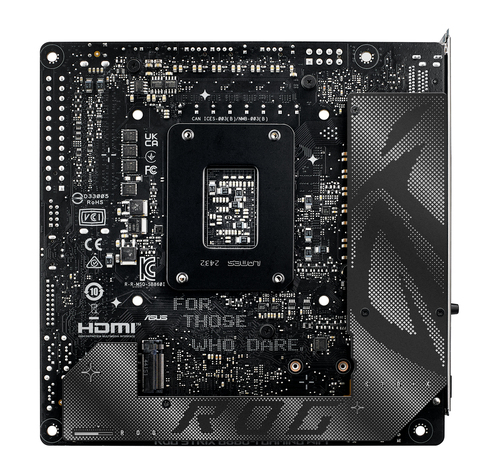

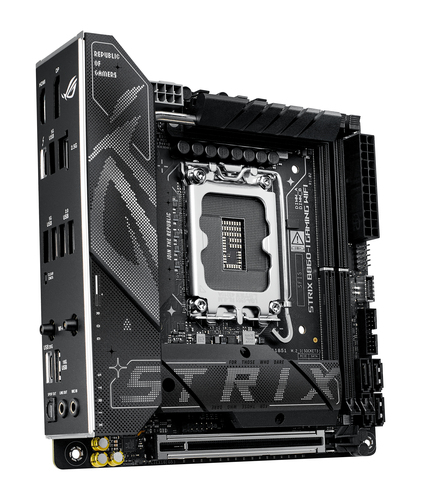

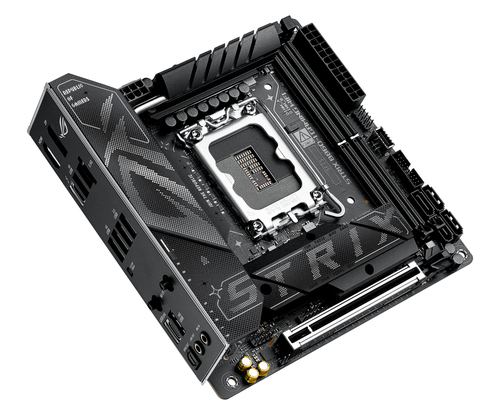

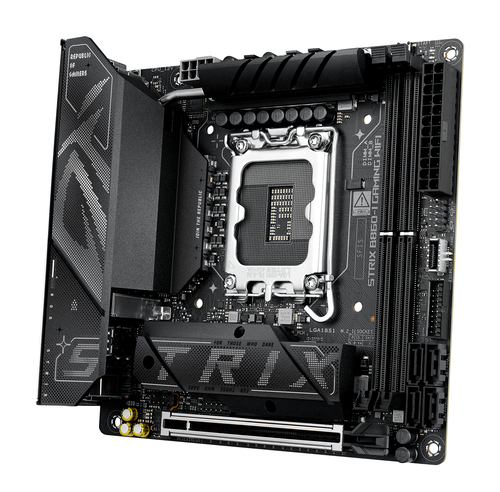

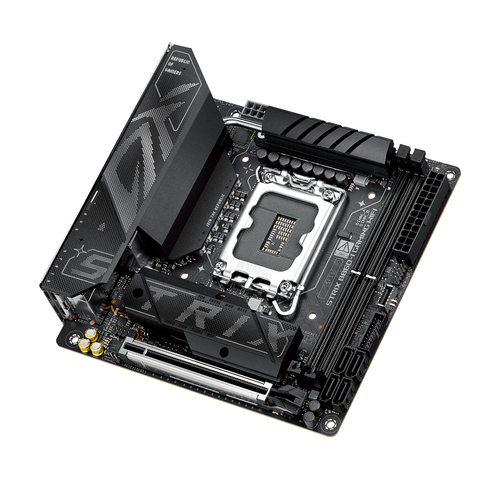

ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX

Brand: Asus
Product code: 90MB1JB0-M0EAY0
SKU: ZFLWNJFG57C5I
EAN/GTIN: 4711387815991

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
PC mini ITX Intel B860 Realtek ALC1220P 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

€246.81 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Intel B860, 2 x DIMM slots, max. 128GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, Wi-Fi 7 (802.11be), 256Mb Flash ROM, UEFI AMI BIOS, Mini-ITX

ASUS ROG STRIX B860-I GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel

ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

Specifications

Processor

Processor manufacturer Intel

Processor socket LGA 1851 (Socket V1)

Compatible processor series Intel Core Ultra (Series 2)

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 2

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility Non-ECC

Supported memory clock speed (max) 9066 MHz

Maximum internal memory 128 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 6

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

On-board graphics card No

Internal I/O

USB 2.0 connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

Number of SATA III connectors 4

Front panel audio connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of CPU fan connectors 1

Number of chassis fan connectors 1

EPS power connector (8-pin) Yes

12V power connector Yes

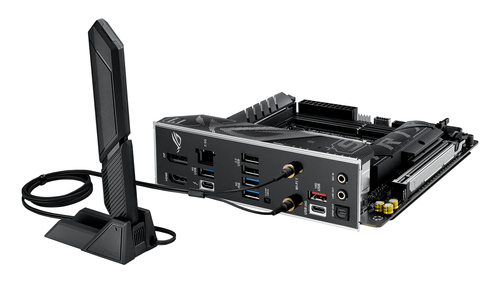

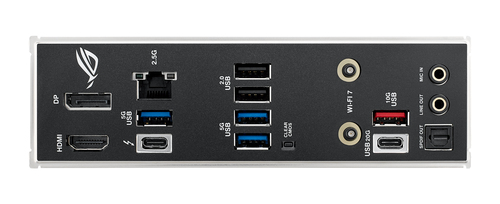

Rear panel I/O ports

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

DisplayPorts quantity 1

Microphone in Yes

S/PDIF out port Yes

Thunderbolt ports quantity 1

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Bluetooth Yes

Bluetooth version 5.4

Features

Motherboard chipset Intel B860

Audio chip Realtek ALC1220P

Audio output channels 7.1 channels

Product colour Multicolour

Component for PC

Motherboard form factor mini ITX

Motherboard chipset family Intel

Windows operating systems supported Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots 1

Number of M.2 (M) slots 2

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Clear CMOS button Yes

Packaging data

Package width 228 mm

Package depth 187 mm

Package height 96 mm

Package weight 1.47 kg

Weight & dimensions

Width 170 mm

Depth 170 mm

Other features

Weight 812.6 g
