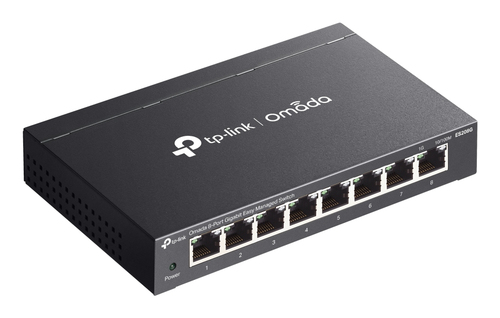

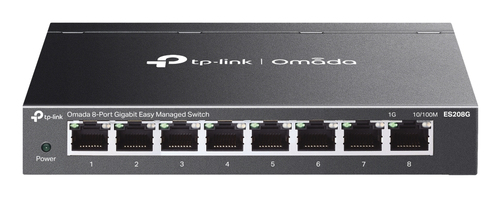

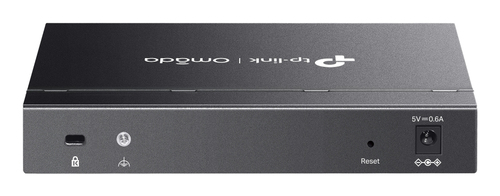

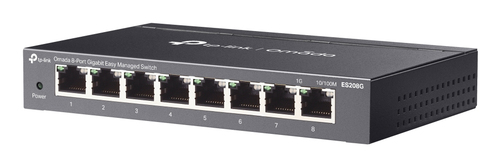

TP-Link Omada ES208G network switch

ES208G - 1210002600675

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Brand: TP-Link
Product Family: Omada
Product code: ES208G
SKU: 5YIXBM4OSMVJJ
EAN/GTIN: 1210002600675

8× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

€50.03 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Omada 8-Port Gigabit Easy Managed Switch

TP-Link Omada ES208G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q. DC input voltage: 5 V. Wall mountable

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features

Switch type Managed

Switch layer L2

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

Unified static configuration Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 8

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity 8

Network

Networking standards IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q

10G support No

Zero Touch Provisioning (ZTP) Yes

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Auto MDI/MDI-X Yes

Auto-negotiation Yes

Fast leave Yes

VLAN support Yes

Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN

Number of VLANs 32

Data transmission

Switching capacity 16 Gbit/s

Forwarding rate 11.9 Mpps

MAC address table 8000 entries

Store-and-forward Yes

Jumbo frames support Yes

Jumbo frames 15000

Packet buffer memory 4 MB

Security

DHCP features DHCP client

IGMP snooping Yes

Loop protection Yes

Queue scheduling algorithms Weighted Round Robin (WRR)

Design

Rack mounting No

Stackable No

Product colour Black

LED indicators Yes

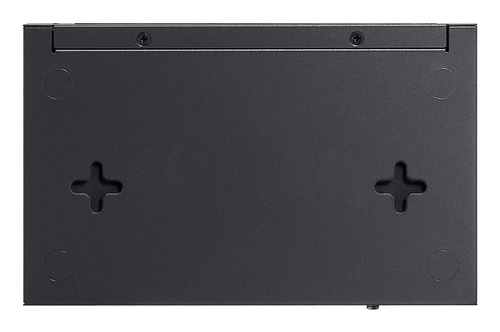

Wall mountable Yes

Performance

Flash memory 64 MB

Firmware upgradeable Yes

Fanless Yes

Mean time between failures (MTBF) 1141726 h

Power

Power source DC

Power supply included Yes

DC input voltage 5 V

Input current 0.6 A

Power consumption (max) 2.7 W

Surge protection Yes

Surge protection voltage 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE) No

Operational conditions

Operating temperature (T-T) -5 - 45 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 9.09 BTU/h

Weight & dimensions

Width 158 mm

Depth 100.7 mm

Height 25.4 mm

Packaging content

User guide Yes

Packaging data

AC adapter included Yes

Package type Box

Certificates

Compliance certificates CE, Federal Communications Commission (FCC), RoHS
