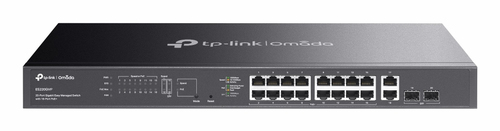

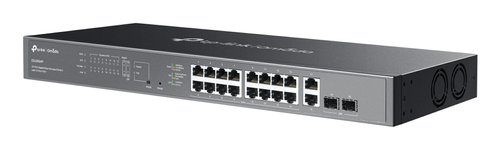

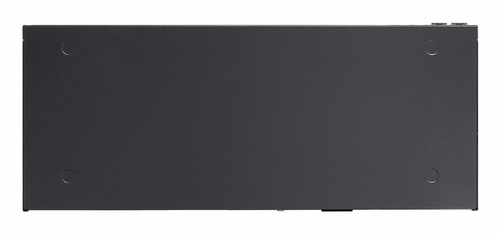

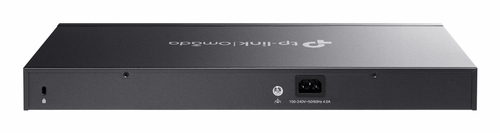

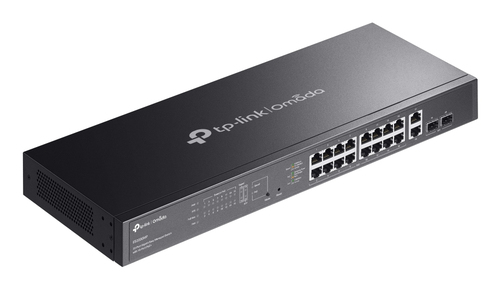

TP-Link Omada ES220GMP network switch
TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- ES220GMP
- SKU
- XKIJBNKYRD9JC
- EAN/GTIN
- 1210002607858
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
€247.7
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Unified static configuration | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 18 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Zero Touch Provisioning (ZTP) | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 29.76 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Flash memory | 64 MB |
| Noise level | 41.5 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 310550.7 h |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 289.7 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 984.88 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
