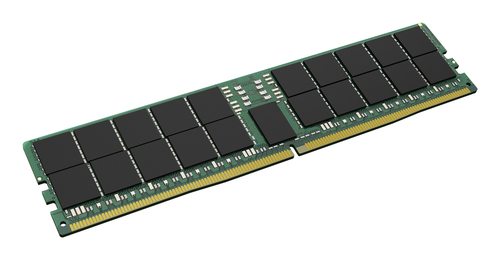

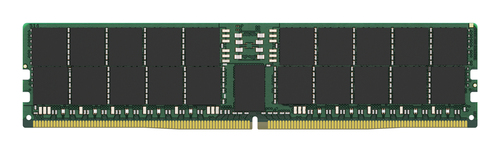

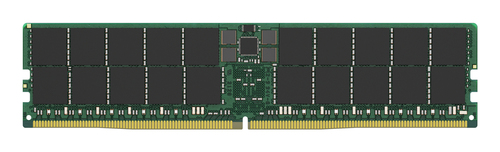

Kingston Technology KSM64R52BD4-64MD memory module
KSM64R52BD4-64MD - 740617347128
Kingston Technology KSM64R52BD4-64MD memory module 64 GB 1 x 64 GB DDR5 6400 MT/s
- Brand
- Kingston
- Product code
- KSM64R52BD4-64MD
- SKU
- TN7C0CAUXZRRV
- EAN/GTIN
- 740617347128
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- RoHS Compliant and Halogen-Free
€2597.44
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
64GB, DDR5 6400MT/s, ECC, Registered, DIMM, CL52, x80, 2RX4, 1.1V, 288-pin, 16Gbit, Micron D
Kingston Technology KSM64R52BD4-64MD. Component for: PC/Server, Internal memory: 64 GB, Memory layout (modules x size): 1 x 64 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52
Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
Features
Buffered memory type
Registered (buffered)
On-Die ECC
Yes
CAS latency
52
Internal memory
64 GB
Memory layout (modules x size)
1 x 64 GB
Internal memory type
DDR5
Memory data transfer rate
6400 MT/s
Component for
PC/Server
Memory form factor
288-pin DIMM
ECC
No
Memory ranking
2
Memory voltage
1.1 V
Module configuration
8192M x 80
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
SPD profile
Yes
Programming power voltage (VPP)
1.8 V
Lead plating
Gold
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Sustainability
Doesn't contain
Halogen
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
