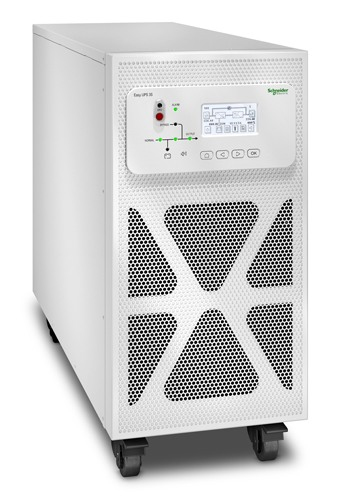

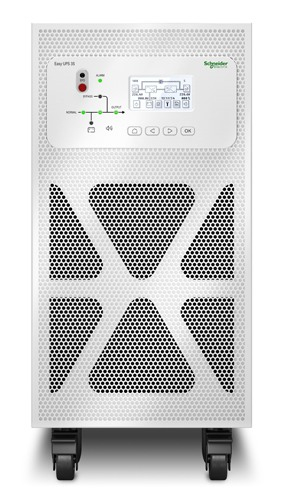

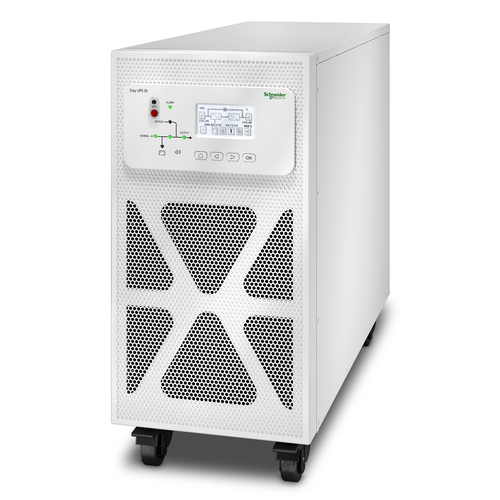

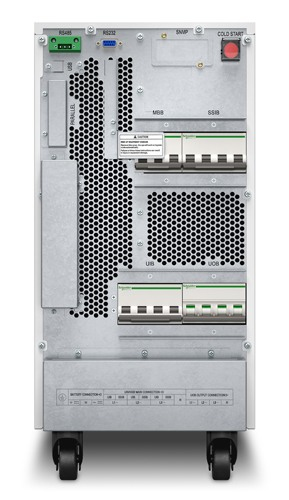

APC Easy 3S uninterruptible power supply (UPS)

E3SUPS10KH - 0731304339328

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

Brand: APC
Product code: E3SUPS10KH
SKU: 6TXFBAV1KPHEG
EAN/GTIN: 0731304339328

Double-conversion (Online)
10 kVA 10000 W
Waveform: Pure sine
Tower White

€4997.91 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. Form factor: Tower, Product colour: White, International Protection (IP) code: IP20. Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE. Width: 250 mm, Depth: 700 mm, Height: 530 mm. Package width: 400 mm, Package depth: 700 mm, Package height: 772 mm

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 10 kVA

Output power 10000 W

Waveform Pure sine

Input operation voltage (min) 304 V

Input operation voltage (max) 477 V

Input frequency 45/65 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 18 A

Number of input phases 3

Number of output phases 3

Input power factor 0.99

Crest factor 3:1

Overload capacity (10 minutes) 125%

Overload capacity (1 minute) 150%

Output voltage Total Harmonic Distortion (THD) 3%

Input current Total Harmonic Distortion (THD) 3%

Noise level 60 dB

Power protection features Overload

Design

Form factor Tower

Product colour White

International Protection (IP) code IP20

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 984.3 m

Non-operating altitude 0 - 14763.6 m

Certificates

Certification CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE

Packaging content

Quick installation guide Yes

Weight & dimensions

Width 250 mm

Depth 700 mm

Height 530 mm

Weight 36 kg

Packaging data

Package width 400 mm

Package depth 700 mm

Package height 772 mm

Package weight 50 kg

Logistics data

Harmonized System (HS) code 85078000

Other features

Output voltage 400 V
