iiyama ProLite TF1515MC-B1 computer monitor 38.1 cm (15") 1024 x 768 pixels LED Touchscreen Black
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- TF1515MC-B2
- SKU
- VSM5XNI23N76I
- EAN/GTIN
- 4948570115907
- Touchscreen 38.1 cm (15") LED
- 1024 x 768 pixels 4:3
- 8 ms 800:1
- 16 W
Product Info
Open Frame PCAP 10 point touch screen equipped with a foam seal finish for seamless integration

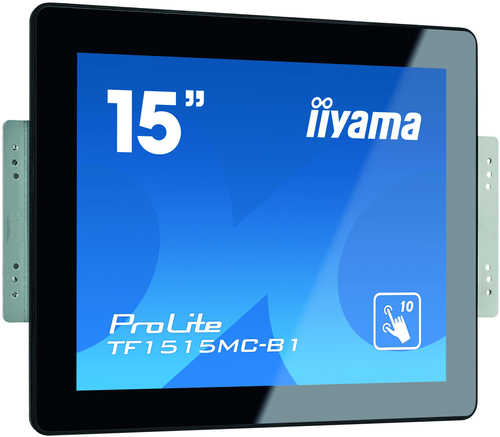

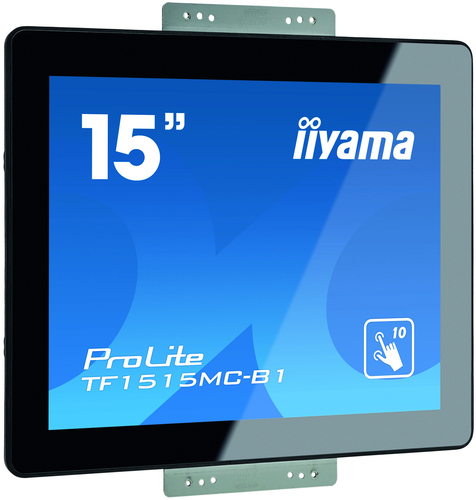

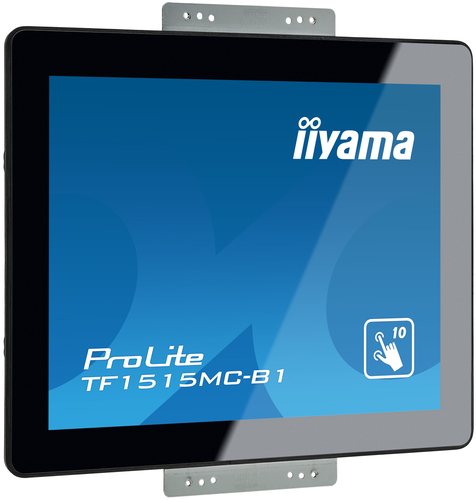

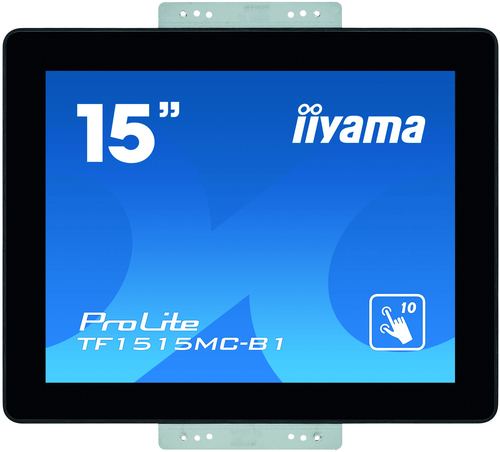

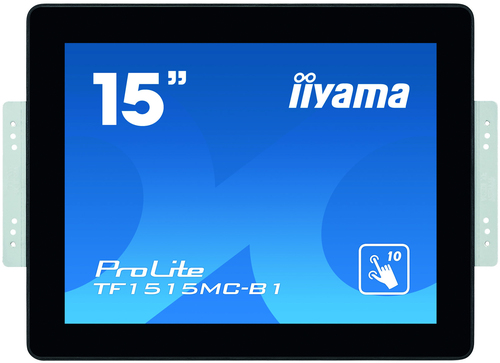

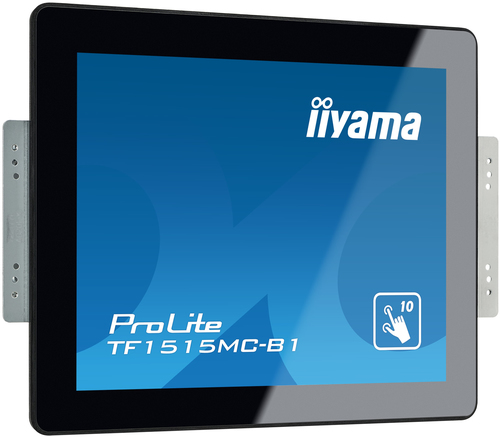

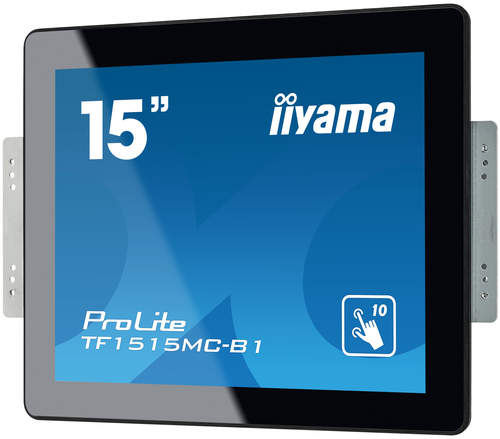

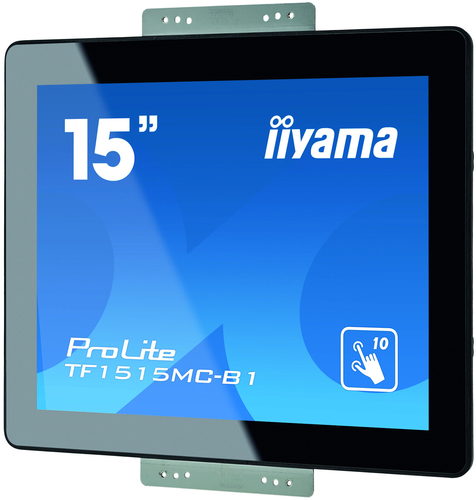

The ProLite TF1515MC-B1 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation.
For ease of integration, the TF1515MC-B1 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

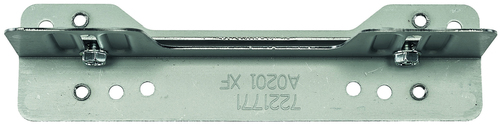

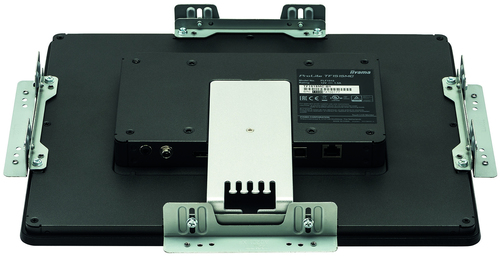

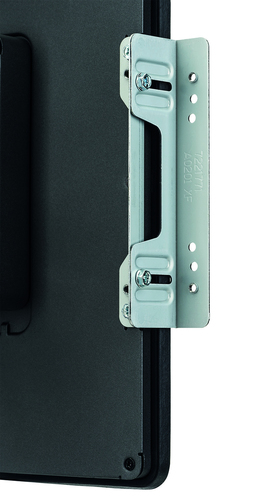

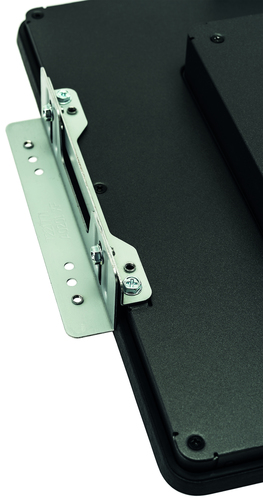

OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

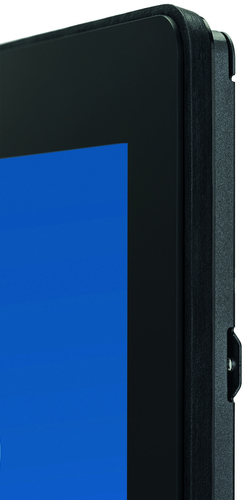

FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
| Display | |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Display brightness | 300 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA) |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Digital horizontal frequency | 30 - 60 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Display diagonal (metric) | 38 cm |
| Separate H/V sync | Yes |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| OmniTapps Multitouch compatibility | No |
| Number of simultaneous touchpoints (Windows 7) | 10 |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |

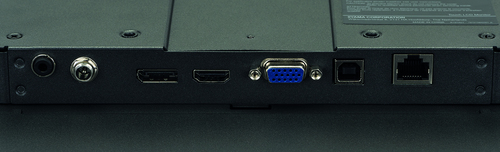

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 16 W |
| Power consumption (PowerSave) | 1.2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (without stand) | 291 mm |
| Depth (without stand) | 41.5 mm |
| Height (without stand) | 364 mm |
| Weight (without stand) | 2.9 kg |
| Packaging content | |

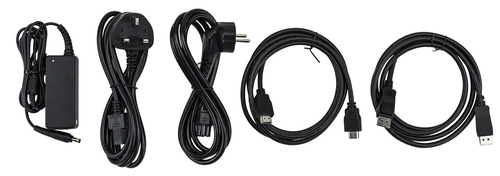

| Cables included | AC, DisplayPort, HDMI, USB |
| Other features | |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Placement supported | Horizontal/Vertical |
| Energy efficiency class (old) | A |
| Glass protection | Yes |
| Power management | Yes |
| Certification | CE, CB, TÜV-Bauart, CU, cULus |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
