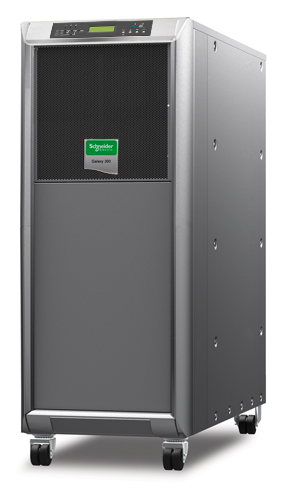

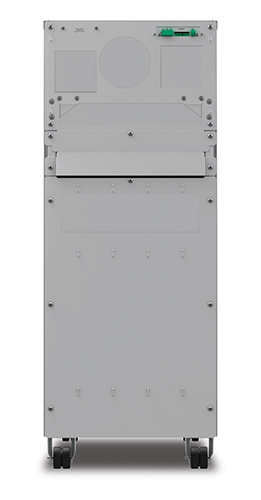

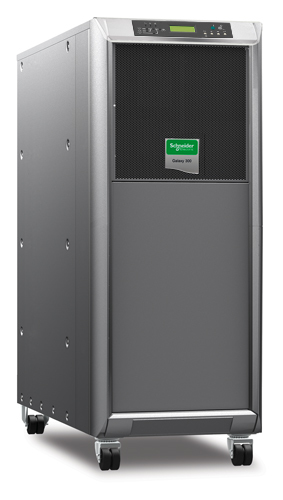

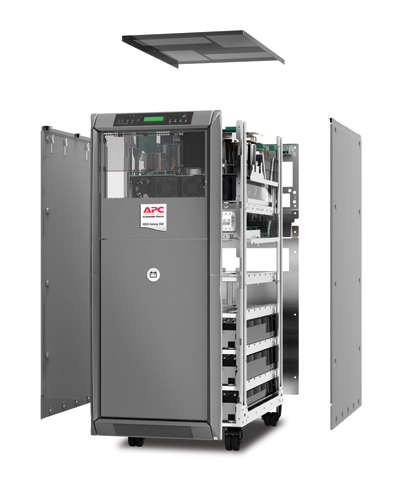

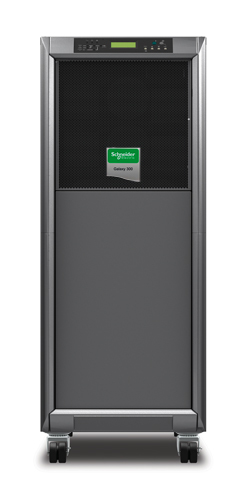

APC G3HT30KHB2S uninterruptible power supply (UPS)

G3HT30KHB2S - 0731304285830

APC G3HT30KHB2S uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 24000 W 1 AC outlet(s)

Brand: APC
Product code: G3HT30KHB2S
SKU: H0A5M8LT8WU8X
EAN/GTIN: 0731304285830

Double-conversion (Online)
30 kVA 24000 W
Waveform: Sine
1 AC outlet(s)
Sealed Lead Acid (VRLA) 192 V
Tower Black, Grey

€9335.33 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC G3HT30KHB2S. UPS topology: Double-conversion (Online), Output power capacity: 30 kVA, Output power: 24000 W. AC outlet types: Hard Wire 5-wire (3PH + N + G), Power plug: Terminal, AC outlets quantity: 1 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 192 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Grey, Display type: LCD. Compliance certificates: RoHS, Certification: CE, CSA C22.2 No. 60960 , EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC...

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 30 kVA

Output power 24000 W

Waveform Sine

Input operation voltage (min) 323 V

Input operation voltage (max) 477 V

Input frequency 45/65 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 65 A

Input power factor 0.99

Crest factor 2.5:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 5%

Input current Total Harmonic Distortion (THD) 5%

Noise level 54.5 dB

Ports & interfaces

AC outlet types Hard Wire 5-wire (3PH + N + G)

Power plug Terminal

AC outlets quantity 1 AC outlet(s)

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 192 V

Battery life (max) 5 year(s)

Design

Form factor Tower

Product colour Black, Grey

Display type LCD

International Protection (IP) code IP20

Operational conditions

Operating temperature (T-T) 0 - 35 °C

Storage temperature (T-T) -10 - 60 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 9000 m

Certificates

Compliance certificates RoHS

Certification CE, CSA C22.2 No. 60960 , EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

Weight & dimensions

Width 500 mm

Depth 950 mm

Height 1300 mm

Weight 609 kg

Packaging data

Package width 800 mm

Package depth 965 mm

Package height 1440 mm

Package weight 635 kg
