APC AP9614 UPS accessory

AP9614 - 0731304733065

Brand: APC
Product code: AP9614
SKU: G5OZXXIZ1JYC7
EAN/GTIN: 0731304733065

Provides 6 configurable output relays and 4 input contacts
Universal I/O ports support optional environmental sensors and Dry Contact I/O Accessory
Monitor connected devices via dynamic Web UI
Configure actions to status changes or UPS events via dynamic Web UI
For UPS devices with a SmartSlot 160kVA or below

€354.89 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Dry contact, Management Options, Dry Contact I/O Card, monitor external UPS environmental sensors, output relays, and input contacts

APC AP9614. Product type: Relay card. Width: 121 mm, Depth: 128 mm, Height: 38 mm. Package width: 165 mm, Package depth: 238 mm, Package height: 51 mm

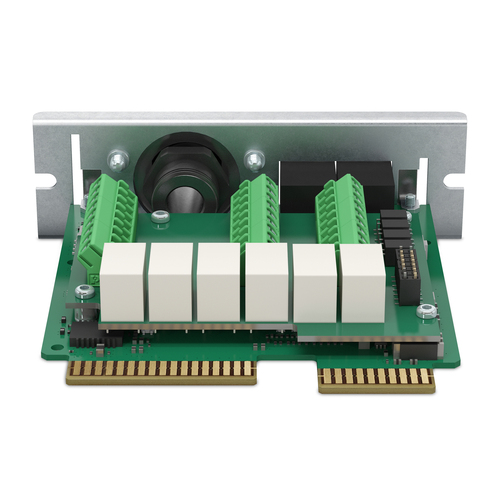

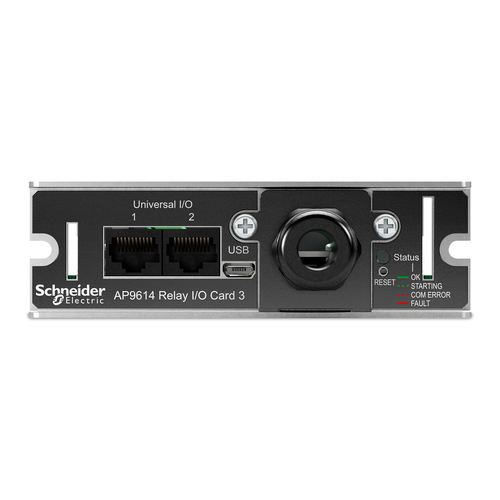

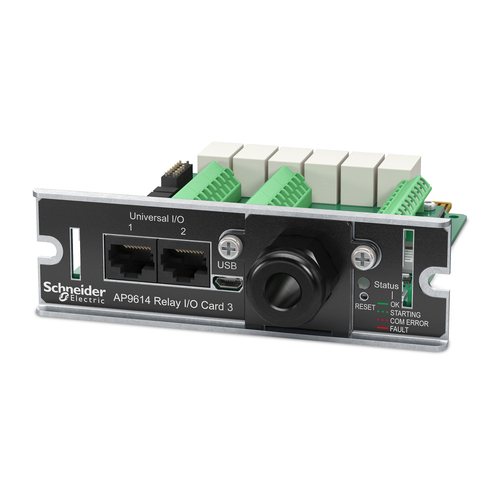

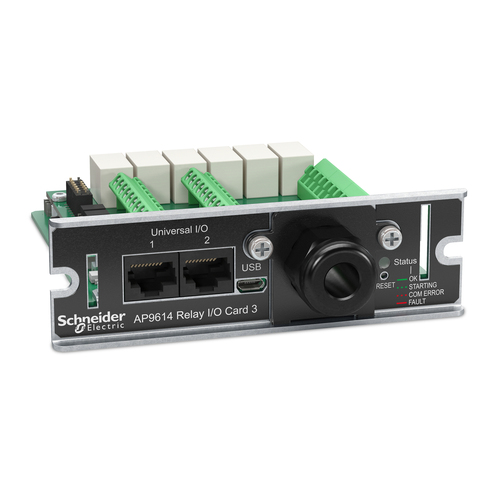

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.

Specifications

Features

Product type Relay card

LED indicators Yes

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 65 °C

Non-operating altitude 0 - 15240 m

Weight & dimensions

Width 121 mm

Depth 128 mm

Height 38 mm

Weight 200 g

Packaging data

Package width 165 mm

Package depth 238 mm

Package height 51 mm

Package weight 440 g
