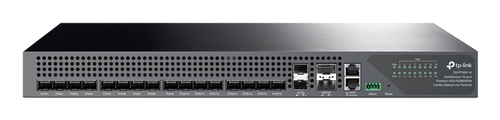

TP-Link DeltaStream DS-P7500-16 optical line terminal (OLT)
TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal
- Brand
- TP-Link
- Product Family
- DeltaStream
- Product code
- DS-P7500-16
- SKU
- CQBVNNPVRJDA8
- EAN/GTIN
- 1210002606905
- 16× PON Ports: 8× XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery
- High Scalability: Supports a 1:128 splitting ratio for GPON services and 1:256 for XGS-PON
- High-Speed Uplink Ports: 2× 100G QSFP28 and 2× 25G SFP2840G QSFP+ ports offer ultra-fast high-bandwidth uplink connectivity
- Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies
- L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs
- Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI
€6970.02
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The DS-P7500-16 is a DeltaStream 16-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 features designed to meet a wide range of business needs. The pizza-box OLT supports a higher number of ONUs and its dual power supply redundancy design further improves the stability of the OLT network.
| Features | |
|---|---|
| Switch layer | L2/L3 |
| Static route | Yes |
| DHCP server | Yes |
| DHCP relay | Yes |
| IGMP snooping | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Quality of Service (QoS) support | Yes |
| Voice VLAN | Yes |
| GPON split ratio (max) | 1:256 |
| Maximum operating distance (GPON) | 60000 m |
| Reset button | Yes |
| Access Control List (ACL) | Yes |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Ports & interfaces | |
| Networking standards | IEEE 802.1p, IEEE 802.1x |
| Upstream ports | 10G Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| GPON ports quantity | 16 |
| SFP/SFP+ slots quantity | 4 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC voltage range | 38.4 - 72 V |
| Power consumption (max) | 165 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 380 mm |
| Height | 44 mm |
| Packaging content | |
| Cables included | Power |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
