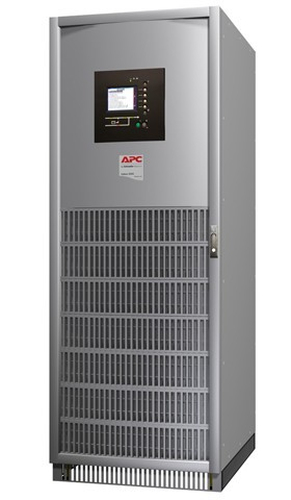

APC G55TUPSU60HS uninterruptible power supply (UPS)
G55TUPSU60HS - 0731304299844
APC G55TUPSU60HS uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 54000 W
- Brand
- APC
- Product code
- G55TUPSU60HS
- SKU
- SU59EMMFXF9HA
- EAN/GTIN
- 0731304299844
- Double-conversion (Online)
- 60 kVA 54000 W
- Waveform: Sine
- 432 V
- Grey
€11152.79
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
60kVA 400V Single UPS, Start-up 5x8, 3-phase
APC G55TUPSU60HS. UPS topology: Double-conversion (Online), Output power capacity: 60 kVA, Output power: 54000 W. Battery voltage: 432 V, Battery recharge time: 10 h. Product colour: Grey, Display type: LCD, International Protection (IP) code: IP20. Certification: CE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE. Width: 712 mm, Depth: 850 mm, Height: 1900 mm
A versatile 3-phase UPS for facility, industrial and data center applications. Configurable system with a comprehensive range of accessories to meet your application demands.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
60 kVA
Output power
54000 W
Waveform
Sine
Input operation voltage (min)
250 V
Input operation voltage (max)
470 V
Input frequency
45/65 Hz
Output operation voltage (min)
380 V
Output operation voltage (max)
415 V
Maximum current
88 A
Number of input phases
3
Efficiency
92.5%
Crest factor
3:1
Noise level
55.5 dB
Power protection features
Overload
Battery
Battery voltage
432 V
Battery recharge time
10 h
Design
Product colour
Grey
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 12000 m
Certificates
Certification
CE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE
Weight & dimensions
Width
712 mm
Depth
850 mm
Height
1900 mm
Weight
400 kg
Packaging data
Package width
980 mm
Package depth
960 mm
Package height
2030 mm
Package weight
420 kg
Other features
Number of phases
3
Input connection type
Hard Wire 4-wire (3PH + G)
Nominal output voltage
400 V
