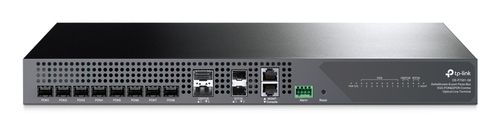

TP-Link DeltaStream DS-P7501-08 optical line terminal (OLT)

DS-P7501-08 - 1210002600200

Brand: TP-Link
Product Family: DeltaStream
Product code: DS-P7501-08
SKU: 8UZ5DZVI37NJV
EAN/GTIN: 1210002600200

8× PON Ports: 8× XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery
High Scalability: Supports a 1:128 splitting ratio for GPON services and 1:256 for XGS-PON
High-Speed Uplink Ports: 2× 100G QSFP28 and 2× 25G SFP28 ports offer high-bandwidth uplink connectivity
Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies
L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs
Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI

€4312.38 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

100G, PON, RJ-45, DHCP, ACL

TP-Link DeltaStream DS-P7501-08. Switching capacity: 100 Gbit/s, GPON split ratio (max): 1:128, Maximum operating distance (GPON): 20000 m. Networking standards: IEEE 802.1x. AC input voltage: 100/240 V, AC input frequency: 50/60 Hz, DC voltage range: 72 V. Width: 440 mm, Depth: 330 mm, Height: 44 mm

Specifications

Features

Switching capacity 100 Gbit/s

DHCP server Yes

DHCP relay Yes

GPON split ratio (max) 1:128

Maximum operating distance (GPON) 20000 m

Ports & interfaces

Networking standards IEEE 802.1x

Ethernet LAN (RJ-45) ports 2

GPON ports quantity 8

SFP/SFP+ slots quantity 2

Power

AC input voltage 100/240 V

AC input frequency 50/60 Hz

DC voltage range 72 V

Power consumption (max) 109.2 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Weight & dimensions

Width 440 mm

Depth 330 mm

Height 44 mm
