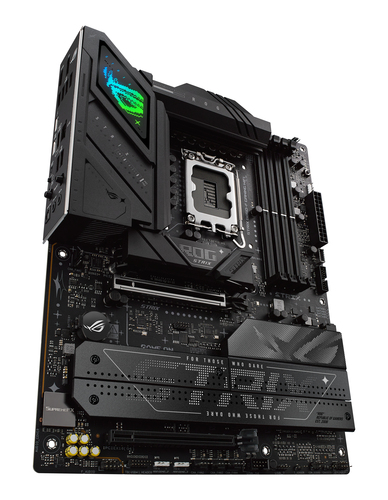

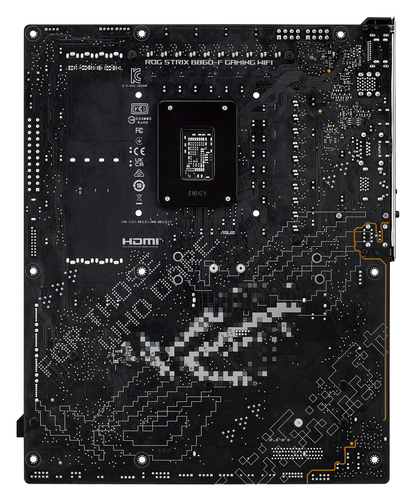

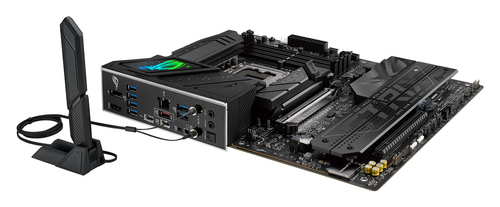

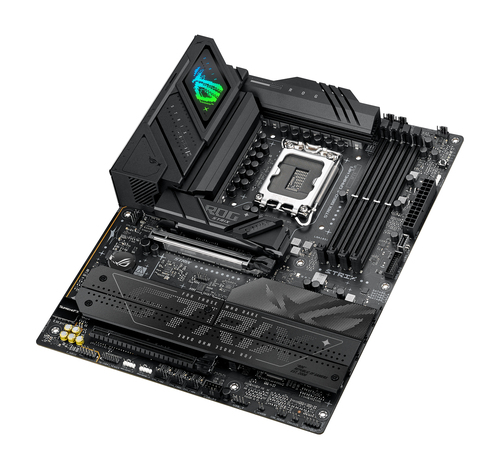

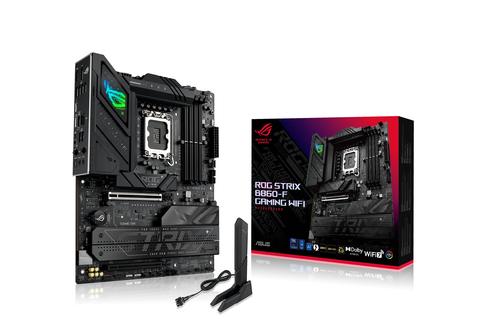

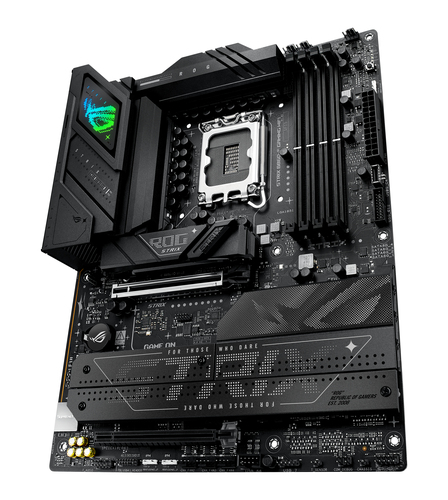

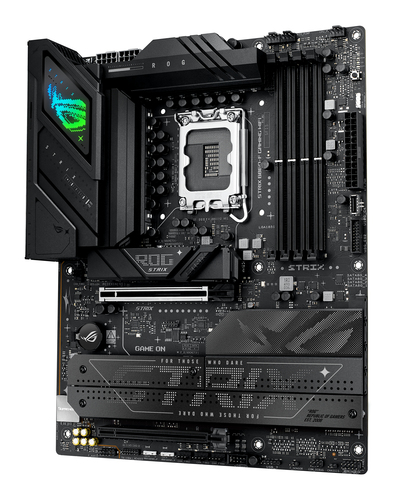

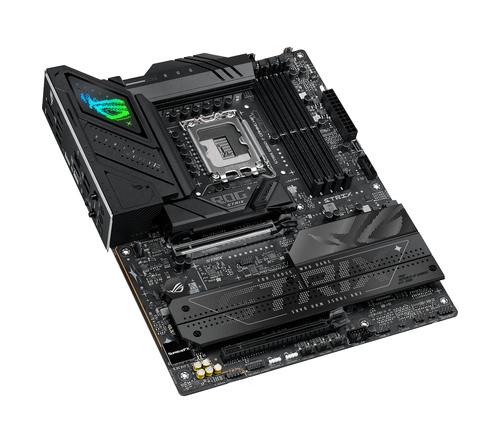

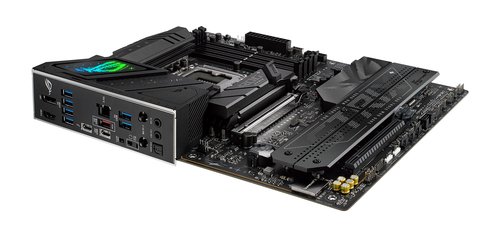

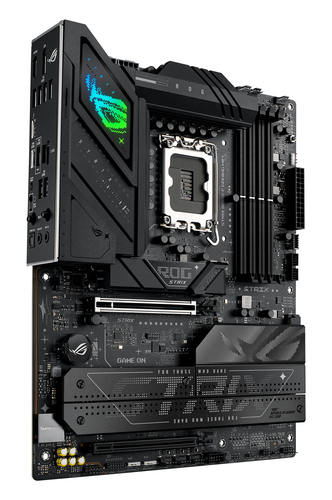

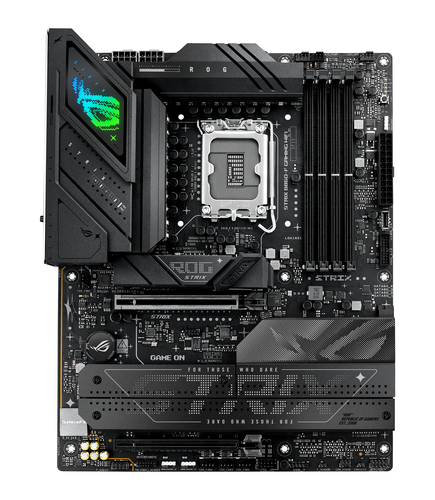

ASUS ROG STRIX B860-F GAMING WIFI

90MB1JG0-M0EAY0 - 4711387806951

ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX

Brand: Asus
Product code: 90MB1JG0-M0EAY0
SKU: BY4MVFLIF3BTZ
EAN/GTIN: 4711387806951

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
PC ATX Intel B860 Realtek ALC4080 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 8
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

€287.21 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

Intel B860, LGA1851, 4 x DIMM slots, max. 256GB, DDR5, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, ATX

ASUS ROG STRIX B860-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

ROG STRIX B860-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.

Specifications

Processor

Processor manufacturer Intel

Processor socket LGA 1851 (Socket V1)

Compatible processor series Intel Core Ultra (Series 2)

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 4

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility Non-ECC

Supported memory clock speed (max) 9066 MHz

Maximum internal memory 256 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 8

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

Number of SATA III connectors 4

Front panel audio connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of CPU fan connectors 1

Number of chassis fan connectors 4

Chassis intrusion connector Yes

EPS power connector (8-pin) Yes

Thunderbolt headers 1

12V power connector Yes

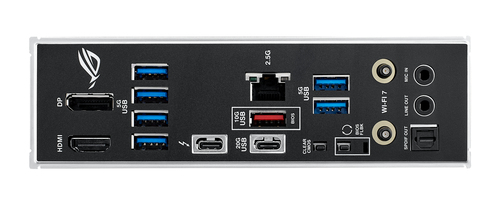

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

DisplayPorts quantity 1

Microphone in Yes

S/PDIF out port Yes

Thunderbolt ports quantity 1

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Bluetooth Yes

Bluetooth version 5.4

Features

Motherboard chipset Intel B860

Audio chip Realtek ALC4080

Audio output channels 7.1 channels

Product colour Multicolour

Component for PC

Motherboard form factor ATX

Motherboard chipset family Intel

Windows operating systems supported Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots 1

Number of M.2 (M) slots 4

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Clear CMOS button Yes

Packaging data

Package width 350 mm

Package depth 265 mm

Package height 71 mm

Package weight 2.29 kg

Weight & dimensions

Width 305 mm

Depth 244 mm

Height 50 mm

Other features

Weight 1.51 kg
