ASUS PRIME B860M-A-CSM
ASUS PRIME B860M-A-CSM Intel B860 LGA 1851 (Socket V1) micro ATX
- Brand
- Asus
- Product code
- 90MB1K00-M0EAYC
- SKU
- S3HG1XML80TB1
- EAN/GTIN
- 4711387819869
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel B860 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet
€164.48
(Inc. VAT)
(Delivery 2-4 working days)
Product Info

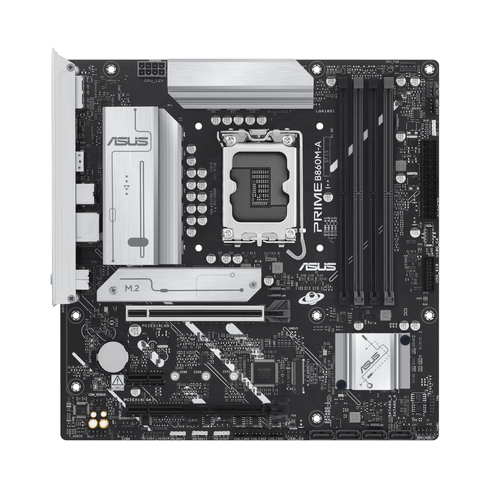

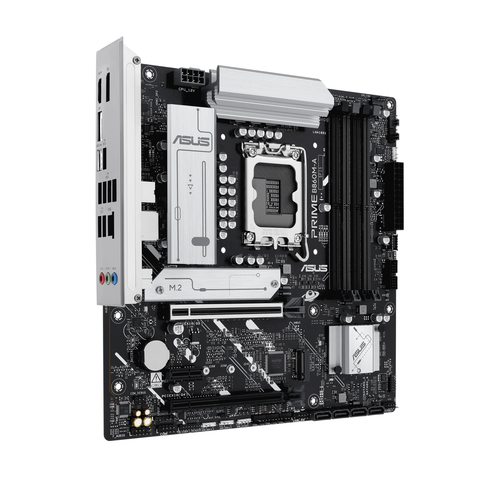

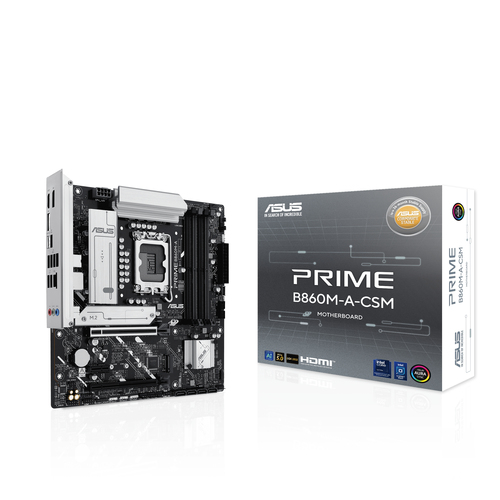

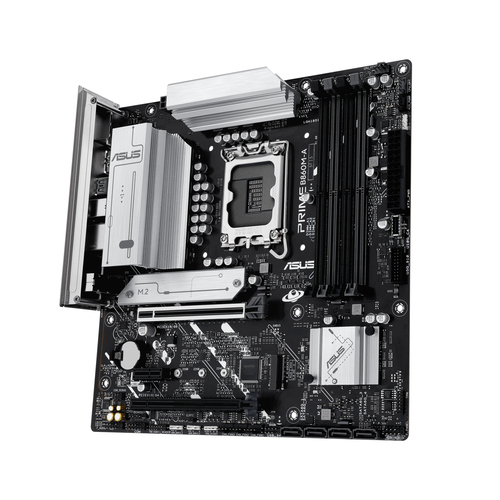

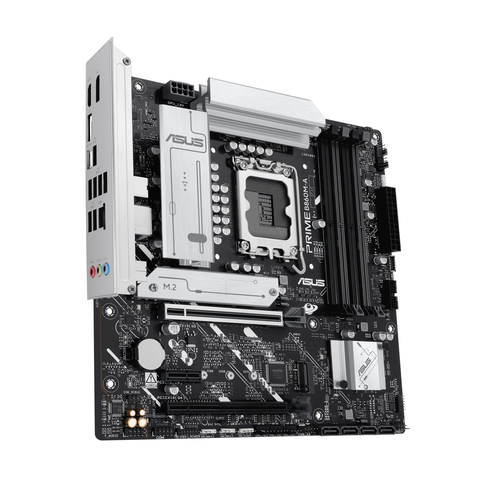

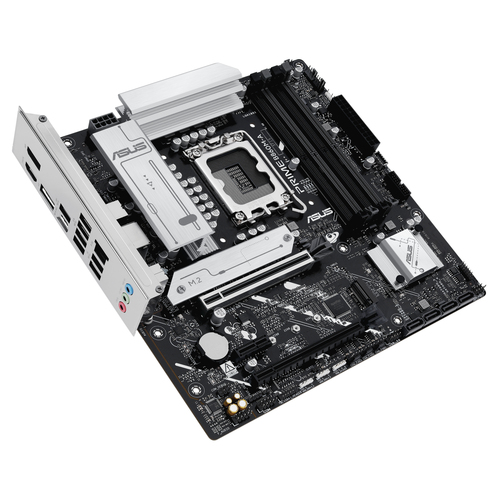

PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8666 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |

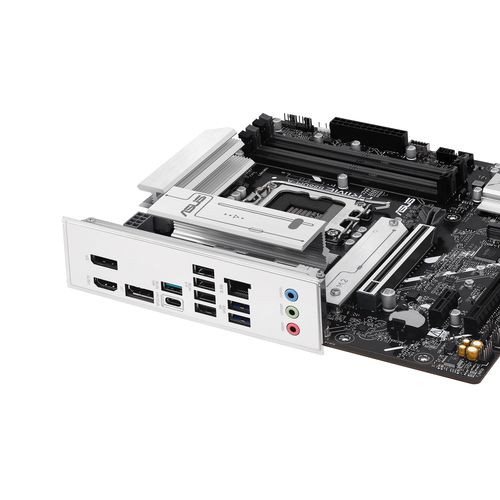

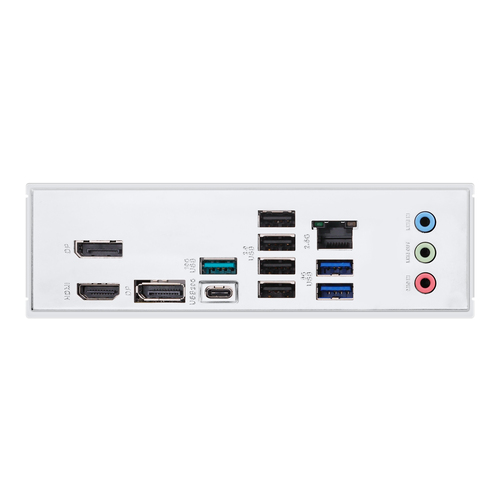

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.36 kg |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Other features | |
| Weight | 815 g |
