iiyama ProLite Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- TF3215MC-B2AG
- SKU
- J37AD2ZQCWZZW
- EAN/GTIN
- 4948570123674
- Touchscreen 80 cm (31.5") LED VA
- Full HD 1920 x 1080 pixels 16:9
- 8 ms 500 cd/m² 3000:1
- F 27 kWh 32 W
Product Info

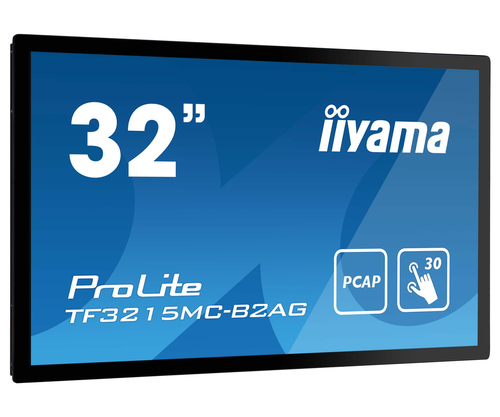

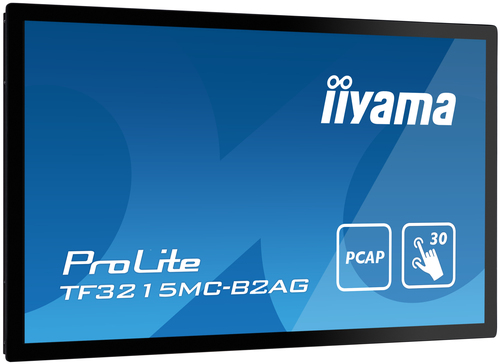

Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

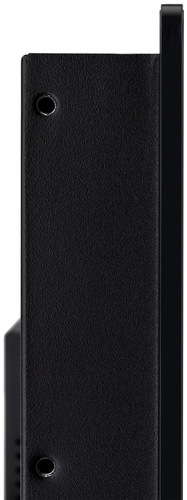

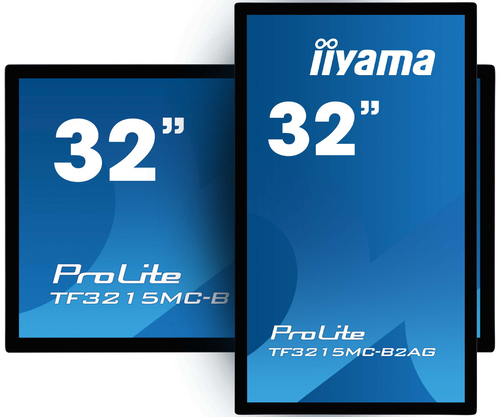

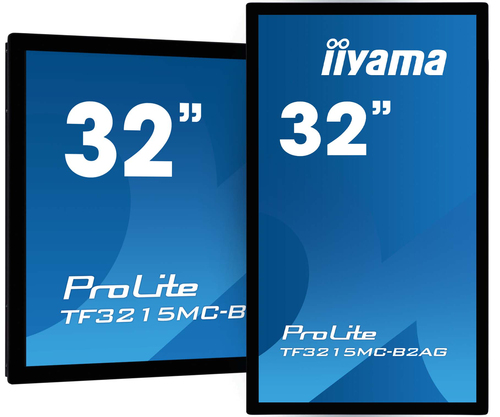

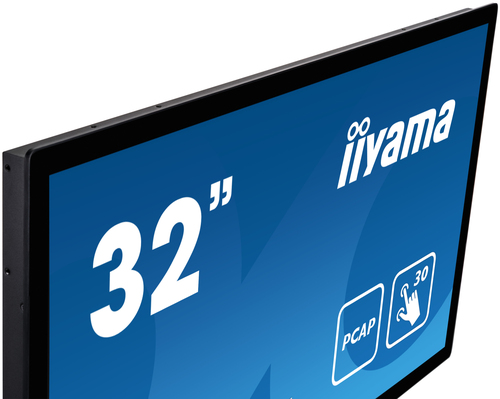

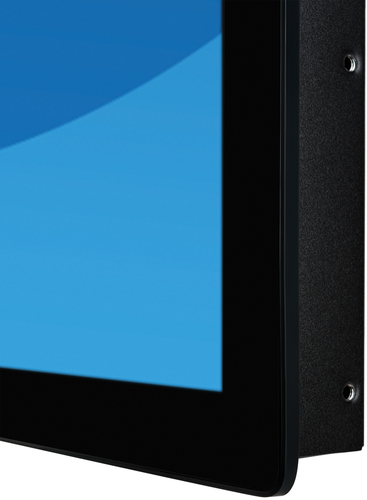

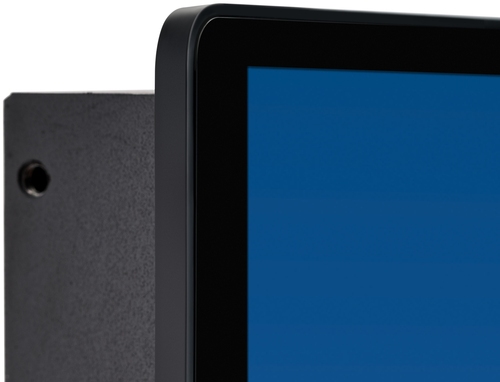

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | VA |
| Touchscreen | Yes |
| Touchscreen type | Kiosk |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 30 |
| Display brightness (typical) | 500 cd/m² |
| Response time | 8 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Digital horizontal frequency | 30 - 68 kHz |
| Display diagonal (metric) | 80 cm |
| Surface hardness | 6H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Housing material | Metal |
| Glass thickness | 6 mm |

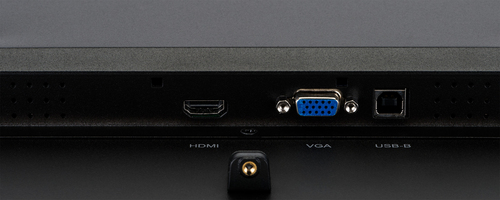

| Ports & interfaces | |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |

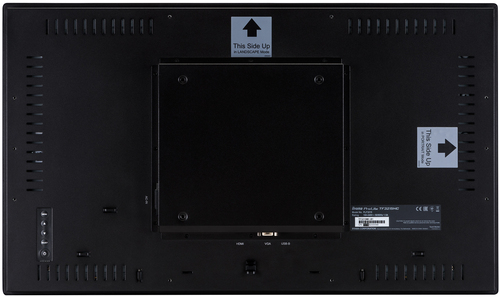

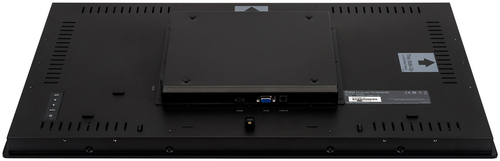

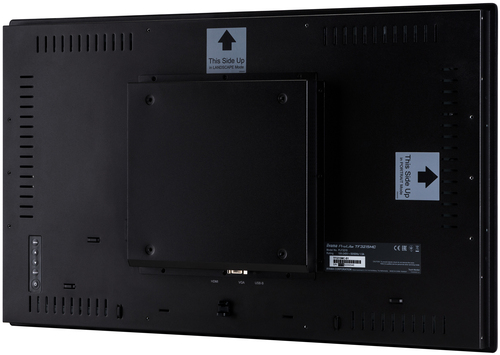

| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |

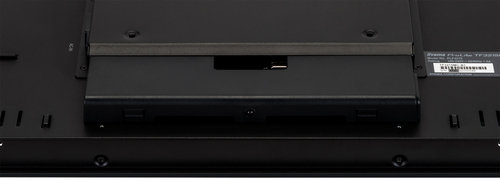

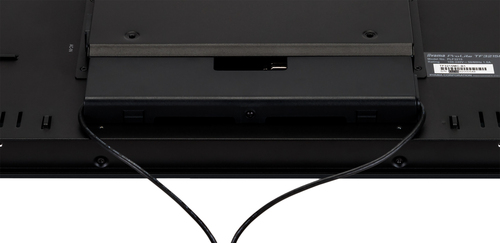

| Cable management | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 27 kWh |
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (without stand) | 745.5 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 437 mm |
| Weight (without stand) | 10 kg |
| Packaging data | |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Packaging content | |

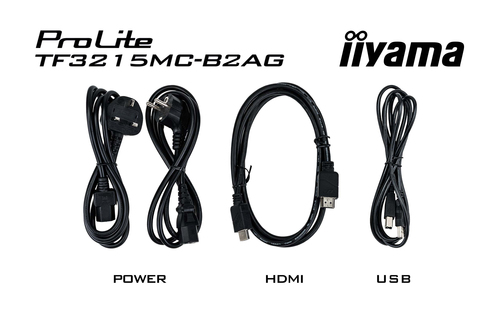

| Cables included | AC, HDMI, USB |
| Quick start guide | Yes |
| Other features | |
| International Protection (IP) code | IP65 |
| IK code | IK07 |
| Compliance certificates | REACH |
