iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
- Brand
- Iiyama
- Product code
- TF1015MC-B3
- SKU
- RK6SC5EVCHPXS
- EAN/GTIN
- 4948570124107
- Indoor Interactive flat panel Black
- 25.6 cm (10.1") 1280 x 800 pixels LED 500 cd/m²
- Touchscreen 29 ms
- Ethernet LAN
Product Info

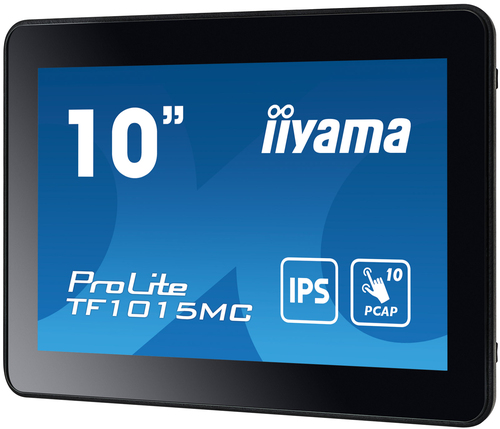

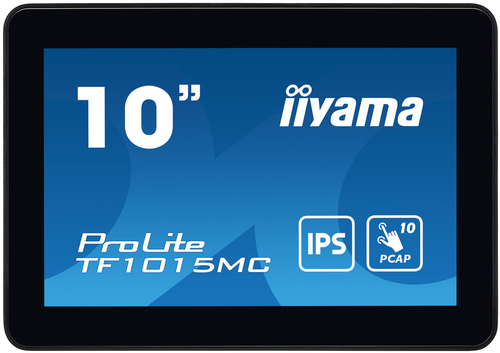

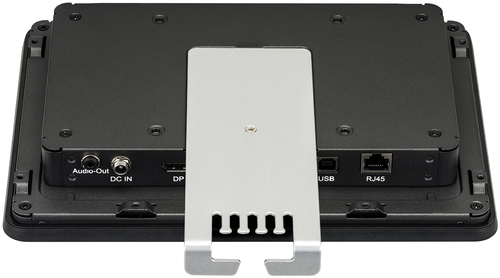

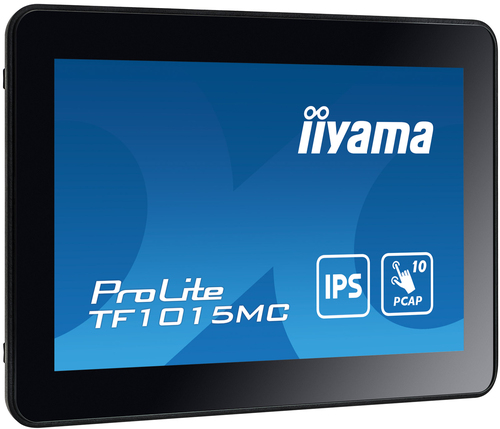

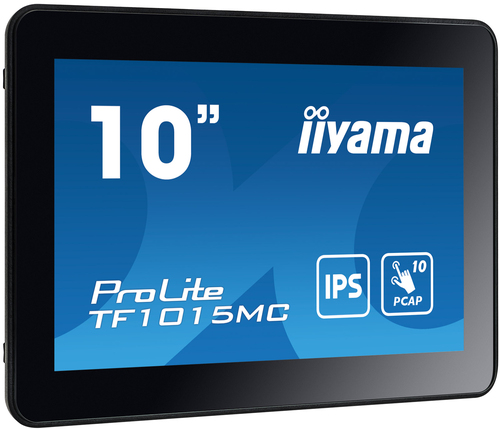

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
| Display | |
|---|---|
| Panel type | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display technology | LED |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 500 cd/m² |
| HD type | HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:10 |
| Response time | 29 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1695 x 0.1695 mm |
| Active display area (W x H) | 216.96 x 135.6 mm |
| Display diagonal (metric) | 25.7 cm |
| Maximum frame rate | 75 fps |
| Horizontal scan range | 30 - 49.7 kHz |
| Surface hardness | 7H |
| Glass thickness | 3.3 mm |

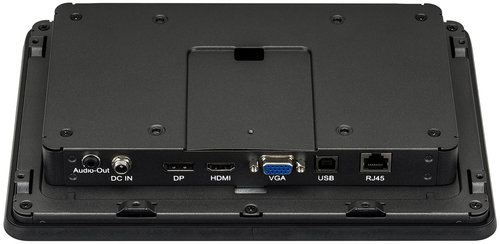

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| HDCP | Yes |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 6 kWh |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
| Display width | 260.5 mm |
| Display depth | 39.5 mm |
| Display height | 183.5 mm |
| Display weight | 1.4 kg |
| Packaging data | |
| Package width | 310 mm |
| Package depth | 370 mm |
| Package height | 160 mm |
| Package weight | 2.7 kg |
| Packaging content | |
| Remote control included | Yes |

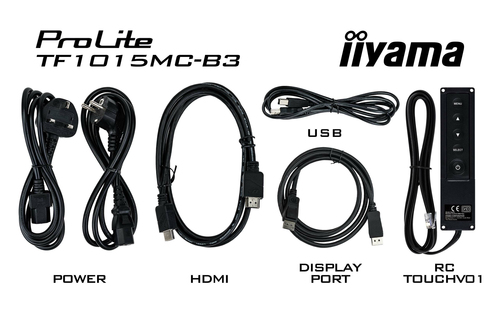

| Cables included | AC, DisplayPort, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 378636 |
| Features | |
| Wall mountable | Yes |
| Technical details | |
| Audio out (mini jack) | 1 |
| Other features | |
| Quick start guide | Yes |
| Plug and Play | Yes |
