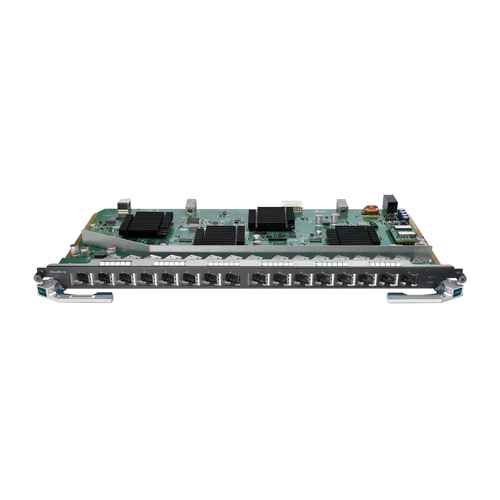

TP-Link DeltaStream DS-LGPA-16 optical line terminal (OLT)

DS-LGPA-16 - 1210002607605

Brand: TP-Link
Product Family: DeltaStream
Product code: DS-LGPA-16
SKU: KZXQUPQEFTUZQ
EAN/GTIN: 1210002607605

16× GPON Ports: Delivers high-speed transition rate up to 2.488 Gbps downstream and 1.244 Gbps upstream (per port).*
High Scalability: Supports 1:128 splitting ratio for GPON services (per port)
Flexible Deployment: Comaptible with TP-Link's Chassis optical line terminals and supports hot swapping for seamless upgrading
L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs
Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI

€2562.01 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

16× GPON Ports, 2.488 / 1.25 Gbps, 1:128 splitting ratio, L2/L3, 56.2W

TP-Link DeltaStream DS-LGPA-16. Switch layer: L2/L3, GPON split ratio (max): 1:128, Maximum operating distance (GPON): 20000 m. Networking standards: IEEE 802.1p, IEEE 802.1x. DC voltage range: -38.4 - -57.6 V, Power consumption (max): 56.2 W. Compliance certificates: CE, Federal Communications Commission (FCC). Width: 390.8 mm, Depth: 257.5 mm, Height: 22.5 mm

Specifications

Features

Switch layer L2/L3

Static route Yes

DHCP server Yes

DHCP relay Yes

IGMP snooping Yes

Multicast Listener Discovery (MLD) snooping Yes

Quality of Service (QoS) support Yes

Voice VLAN Yes

GPON split ratio (max) 1:128

Maximum operating distance (GPON) 20000 m

Access Control List (ACL) Yes

Ports & interfaces

Networking standards IEEE 802.1p, IEEE 802.1x

Ethernet LAN (RJ-45) ports 16

GPON ports quantity 16

Power

DC voltage range -38.4 - -57.6 V

Power consumption (max) 56.2 W

Sustainability

Sustainability compliance Yes

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Certificates

Compliance certificates CE, Federal Communications Commission (FCC)

Weight & dimensions

Width 390.8 mm

Depth 257.5 mm

Height 22.5 mm
