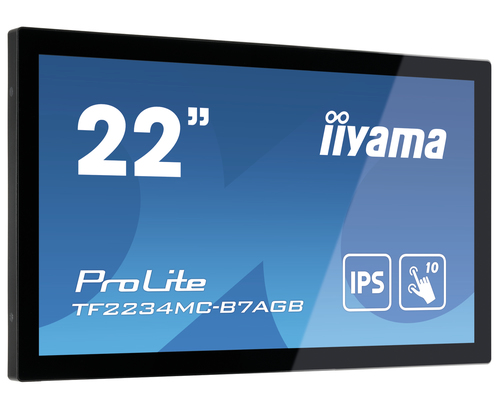

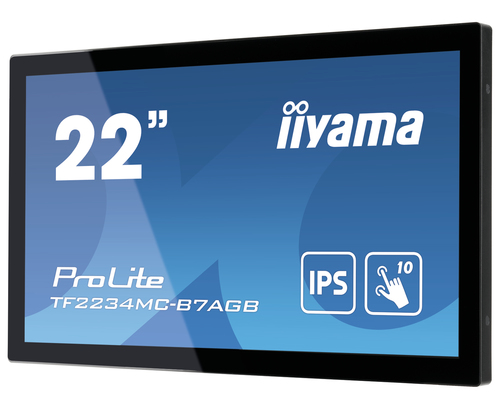

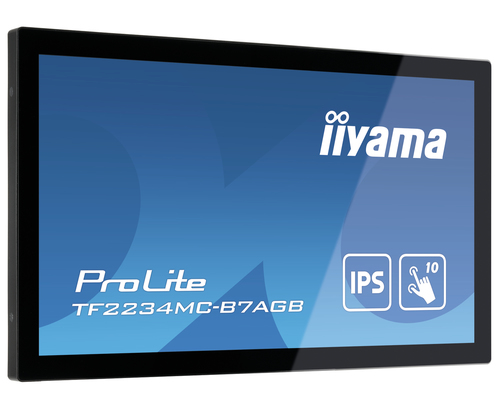

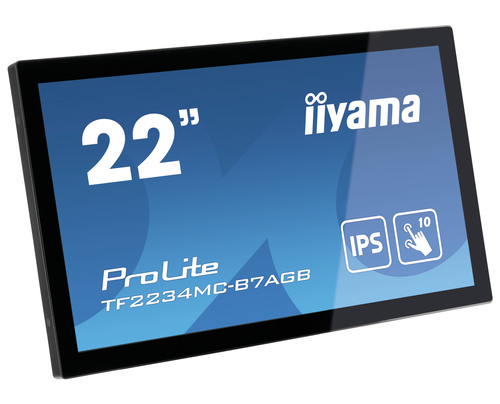

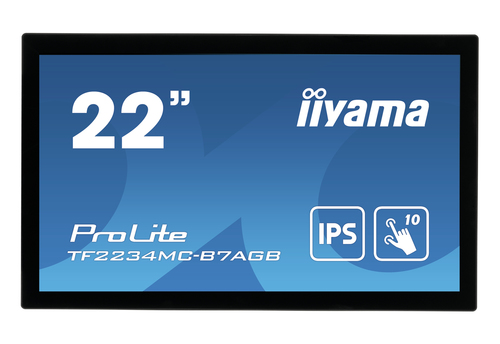

iiyama ProLite 10pt touch open frame monitor with Anti-Glare Glass and high brightness
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- TF2234MC-B7AGB
- SKU
- 0VLDFFK29DBRZ
- EAN/GTIN
- 4948570118373
- Touchscreen 54.6 cm (21.5") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 8 ms 1000:1
- F 19 kWh 18 W
Product Info
10pt touch open frame monitor with Anti-Glare Glass and high brightness
The ProLite TF2234MC-B7AGB uses PCAP Touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare Glass helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC-B7AGB is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 350 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Display diagonal (metric) | 56.4 cm |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Glass thickness | 1.5 mm |
| Ports & interfaces | |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |

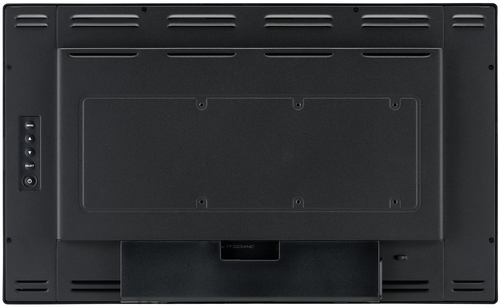

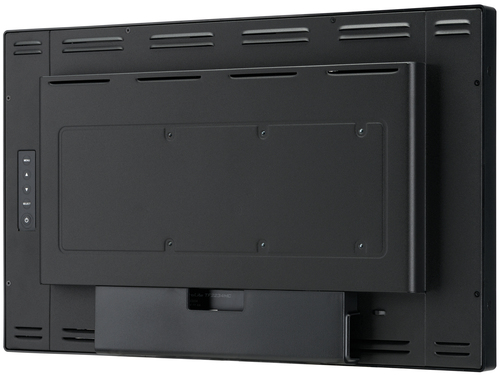

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |

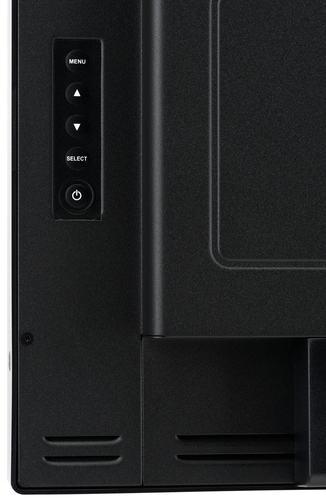

| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages | 9 |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | DC |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 388782 |
| Weight & dimensions | |
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| Other features | |
| International Protection (IP) code | IP65 |
| Display viewable area (HxV) | 476 x 267.7 mm |

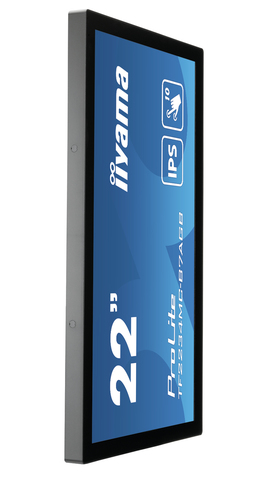

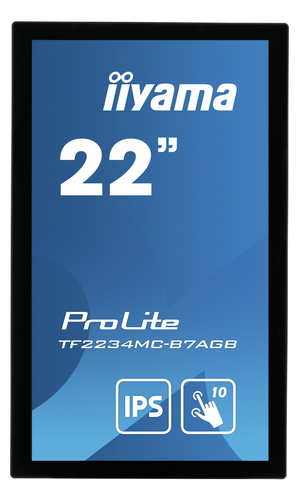

| Placement supported | Horizontal/Vertical |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
