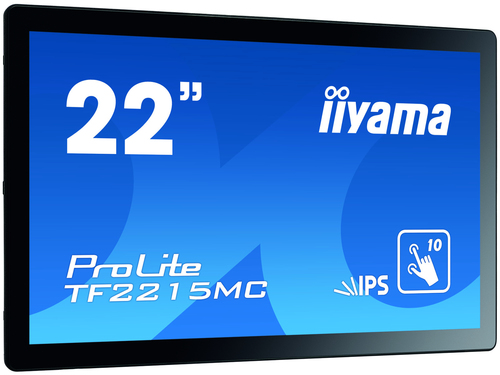

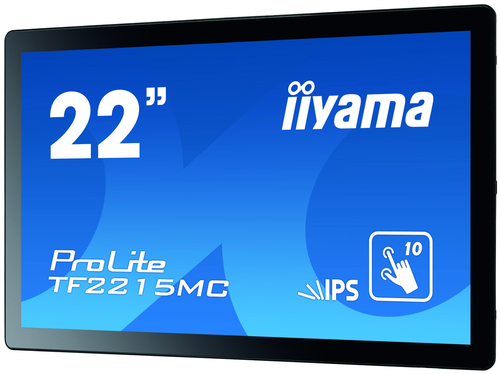

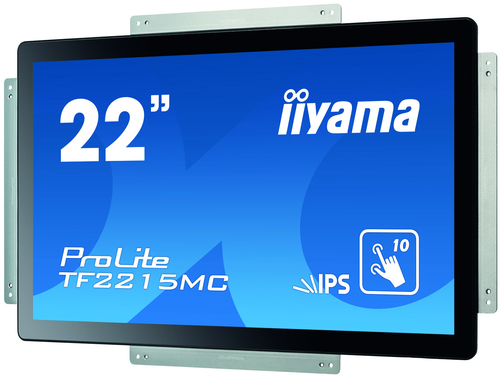

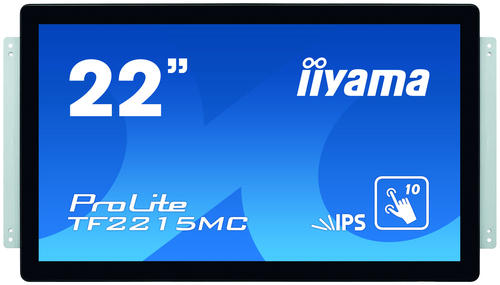

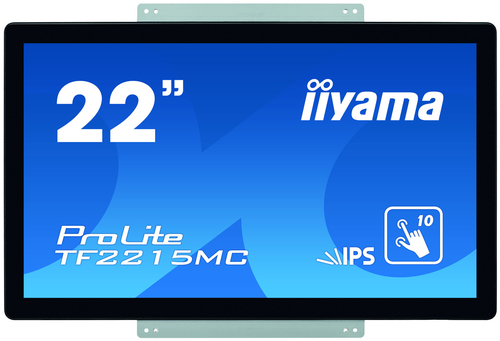

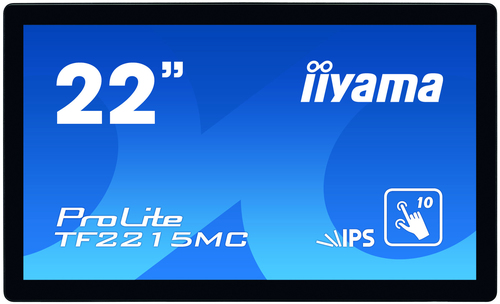

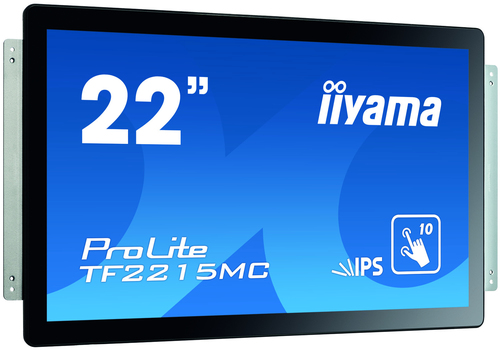

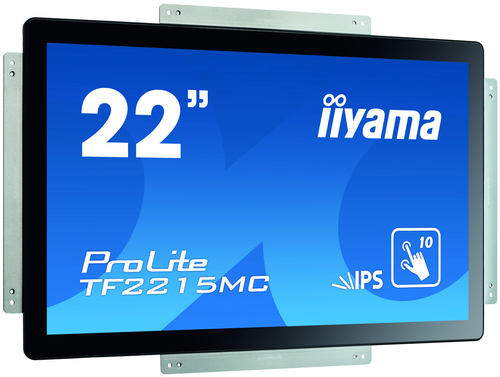

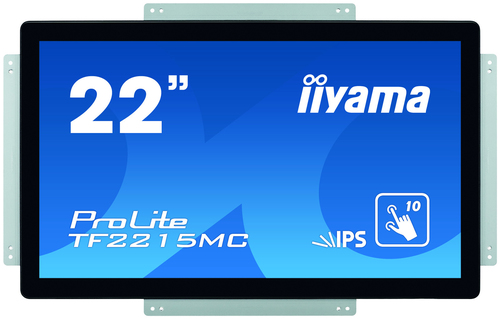

iiyama ProLite 10pt touch Open Frame monitor with IPS panel and touch through glass function
- Brand
- Iiyama
- Product Family
- ProLite
- Product code
- TF2215MC-B2
- SKU
- DHP1C0O4YRUW6
- EAN/GTIN
- 4948570116768
- Touchscreen 54.6 cm (21.5") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 14 ms 1000:1
- F 19 kWh 19 W
Product Info
The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

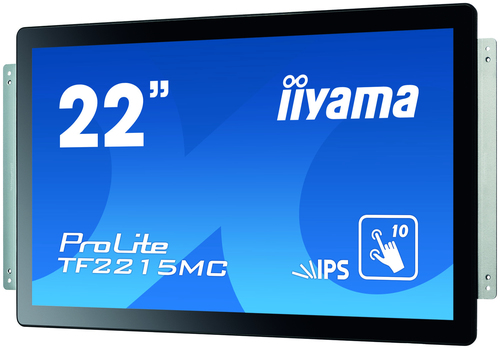

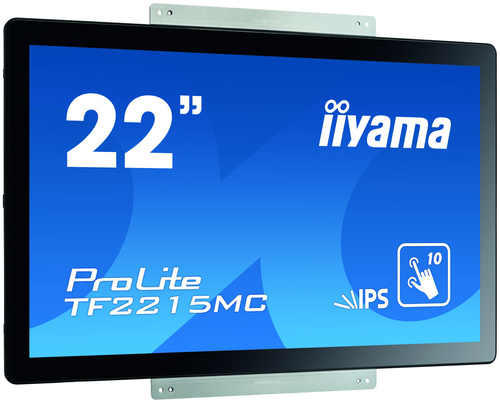

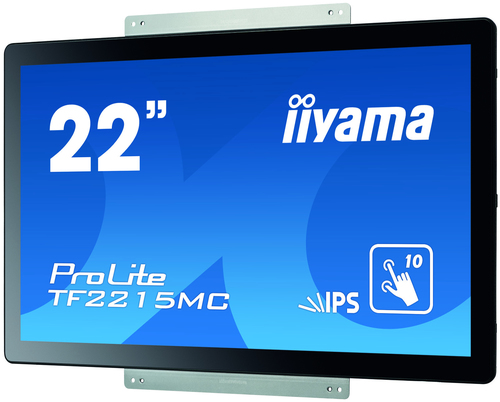

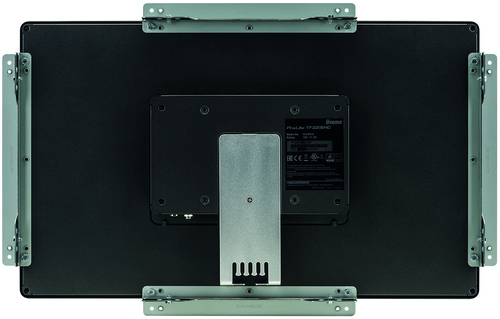

OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 315 cd/m² |
| Response time | 14 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.24795 x 0.24795 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Display diagonal (metric) | 54.6 cm |
| Separate H/V sync | Yes |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| OmniTapps Multitouch compatibility | No |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |

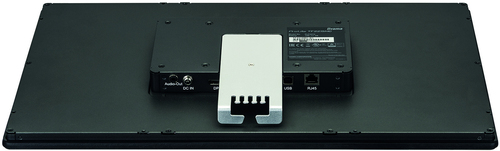

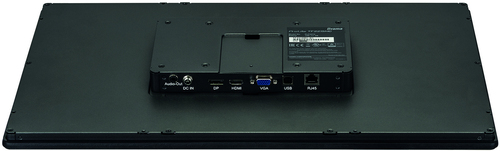

| Ports & interfaces | |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDCP | Yes |
| Ergonomics | |

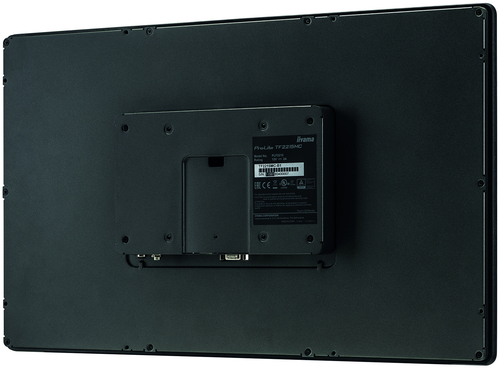

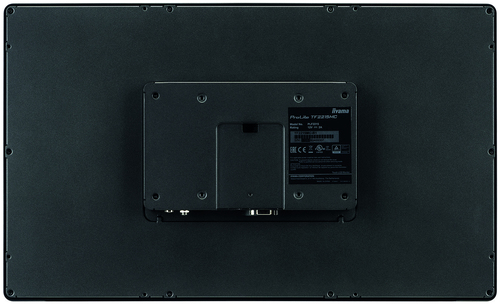

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 6 |
| Plug and Play | Yes |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Power supply type | DC |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 378611 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (without stand) | 520 mm |
| Depth (without stand) | 42.5 mm |
| Height (without stand) | 315 mm |
| Weight (without stand) | 4.4 kg |
| Packaging content | |

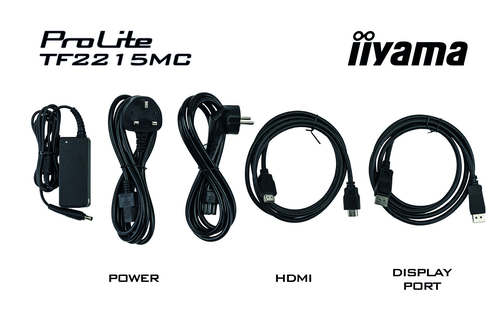

| Cables included | AC, DisplayPort, HDMI, USB |
| Quick start guide | Yes |
| Other features | |
| International Protection (IP) code | IP65 |
| AC adapter included | Yes |
| Display viewable area (HxV) | 476.064 x 267.786 mm |
| Placement supported | Horizontal/Vertical |
| Full HD | Yes |
| Certification | CB, CE, TÜV-Bauart, CU, cULus, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
