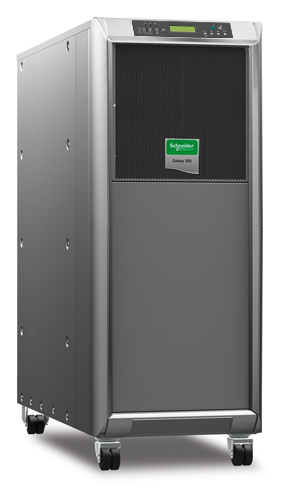

APC G3HT30KHB1S uninterruptible power supply (UPS)

G3HT30KHB1S - 0731304285823

APC G3HT30KHB1S uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 24000 W

Brand: APC
Product code: G3HT30KHB1S
SKU: 7HYDAG7YB4JWX
EAN/GTIN: 0731304285823

Double-conversion (Online)
30 kVA 24000 W
Waveform: Sine
Sealed Lead Acid (VRLA) 192 V
Tower Black

€8445.93 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

30000VA, 24000W, 380-415V, 45/65Hz, 5% THD, 54.5dB, VRLA, 5 years, 500x950x1300mm, 446kg, Black

APC G3HT30KHB1S. UPS topology: Double-conversion (Online), Output power capacity: 30 kVA, Output power: 24000 W. AC outlet types: Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 192 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Display type: LCD. Compliance certificates: RoHS, Certification: CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

MGE Galaxy 300 30kVA 400V 3:3 with 10min Battery, Start-up 5x8

Effective three phase power protection against downtime and data loss for mission critical applications. Ruggedized version including dust filter and conformance coated boards for harsh environments.

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 30 kVA

Output power 24000 W

Waveform Sine

Input operation voltage (min) 323 V

Input operation voltage (max) 477 V

Input frequency 45/65 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 65 A

Input power factor 0.99

Crest factor 2.5:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 5%

Input current Total Harmonic Distortion (THD) 5%

Noise level 54.5 dB

Power protection features Overload

Web-based management Yes

Ports & interfaces

AC outlet types Hard Wire 5-wire (3PH + N + G)

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 192 V

Battery life (max) 5 year(s)

Design

Form factor Tower

Product colour Black

Display type LCD

International Protection (IP) code IP20

Operational conditions

Operating temperature (T-T) 0 - 35 °C

Storage temperature (T-T) -10 - 60 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 9000 m

Certificates

Compliance certificates RoHS

Certification CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

Packaging content

Manual Yes

Quick installation guide Yes

Weight & dimensions

Width 500 mm

Depth 950 mm

Height 1300 mm

Weight 446 kg

Packaging data

Software CD Yes

Package width 800 mm

Package depth 965 mm

Package height 1440 mm

Package weight 472 kg
