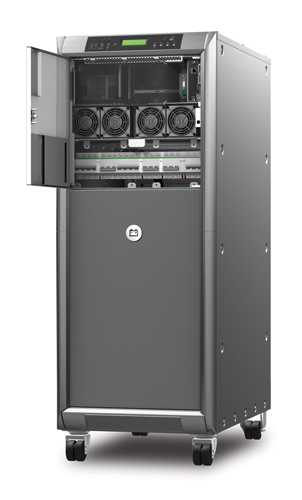

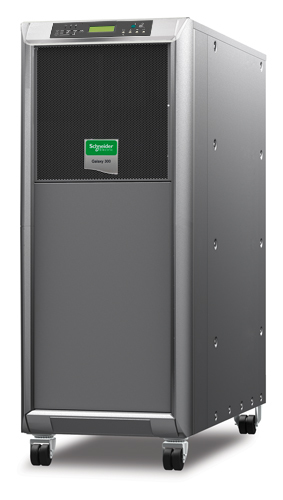

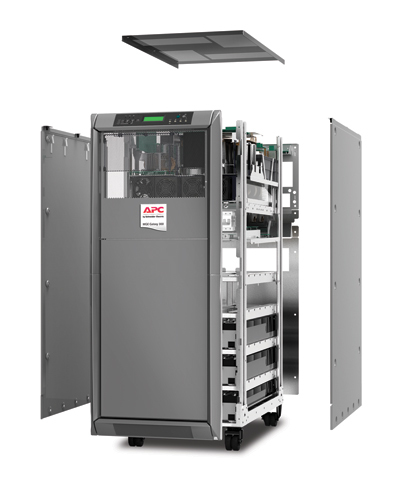

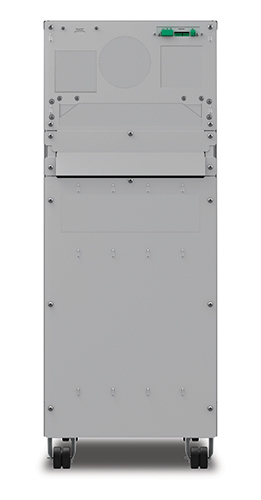

APC G3HT40KHLS uninterruptible power supply (UPS)

G3HT40KHLS - 0731304285885

APC G3HT40KHLS uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 32000 W 1 AC outlet(s)

Brand: APC
Product code: G3HT40KHLS
SKU: 70M5RT2GL8LV5
EAN/GTIN: 0731304285885

Double-conversion (Online)
40 kVA 32000 W
Waveform: Sine
1 AC outlet(s)
192 V
Tower Black, Grey

€8194.59 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC G3HT40KHLS. UPS topology: Double-conversion (Online), Output power capacity: 40 kVA, Output power: 32000 W. AC outlet types: Hard Wire 5-wire (3PH + N + G), Power plug: Terminal, AC outlets quantity: 1 AC outlet(s). Battery voltage: 192 V, Typical backup time at half load: 1 min, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Grey, Display type: LCD. Compliance certificates: RoHS, Certification: CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 40 kVA

Output power 32000 W

Waveform Sine

Input operation voltage (min) 380 V

Input operation voltage (max) 415 V

Input frequency 45/65 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 87 A

Input power factor 0.99

Crest factor 2.5:1

Emergency Power Off (EPO) Yes

Output voltage Total Harmonic Distortion (THD) 3%

Input current Total Harmonic Distortion (THD) 5%

Noise level 53.6 dB

Ports & interfaces

AC outlet types Hard Wire 5-wire (3PH + N + G)

Power plug Terminal

AC outlets quantity 1 AC outlet(s)

SmartSlot Yes

Battery

Battery voltage 192 V

Typical backup time at half load 1 min

Battery life (max) 5 year(s)

Battery recharge time 1 h

Design

Form factor Tower

Product colour Black, Grey

Display type LCD

International Protection (IP) code IP20

Operational conditions

Operating temperature (T-T) 0 - 35 °C

Storage temperature (T-T) -10 - 60 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 9000 m

Certificates

Compliance certificates RoHS

Certification CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

Weight & dimensions

Width 500 mm

Depth 950 mm

Height 1300 mm

Weight 200 kg

Packaging data

Package width 800 mm

Package depth 965 mm

Package height 1440 mm

Package weight 226 kg
