TP-Link TL-MR100-OUTDOOR wireless router Fast Ethernet Single-band (2.4 GHz) 4G White
- Brand
- TP-Link
- Product code
- TL-MR100-OUTDOOR
- SKU
- TLNHNIN5H7JXV
- EAN/GTIN
- 1210002601658
- 4G LTE and Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*
- Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection§
- Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use
- PoE/DC Power Supply: Supports 802.3af and passive PoE, enabling easy deployment
- Plug and Play: Plug in a SIM card to get instant internet access anywhere
- Simplified Setup: Easily set up and manage your network with the Tether app
Product Info
Dependable 4G Wi-Fi Internet Connectivity
The TL-MR100-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with fast Wi-Fi speeds of up to 300 Mbps, enabling seamless networking experience.
Durable Outdoor Design for Stable Performance
Engineered for extreme environments, TL-MR100-Outdoor features IP65 waterproofing, operates from -30°C to 60°C, and 6kV lightning & 15kV ESD protection. Maintains uninterrupted connectivity in harsh weather conditions, delivering stable outdoor network performance.

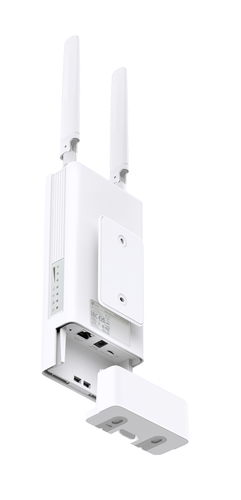

Versatile Installation for Diverse Environments
The TL-MR100-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.
PoE/DC Power Support: Simplified Outdoor Setup
The TL-MR100-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments.
Easy Setup and Management
Set up TL-MR100-Outdoor in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Receiver sensitivity | 11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm |
| Mobile network | |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 700,800,850,900,1800,2100,2600 MHz |
| 3G bands supported | 850,900,2100 MHz |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | No |
| DC-in jack | Yes |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| Security | |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | White |
| Wall mountable | Yes |
| International Protection (IP) code | IP65 |
| On/off switch | Yes |
| Certificates | |
| Certification | CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| PoE injector included | Yes |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 2 |
| Features | |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | DC, PoE |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 226.6 mm |
| Depth | 100 mm |
| Height | 54.7 mm |
