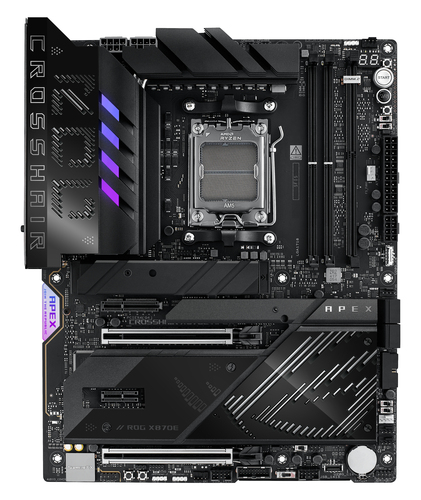

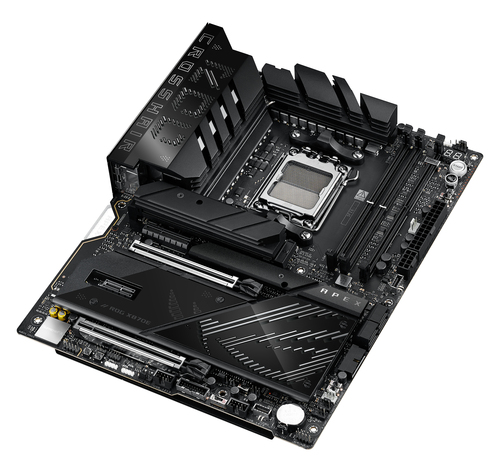

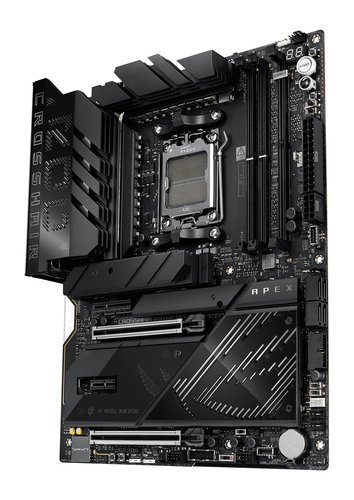

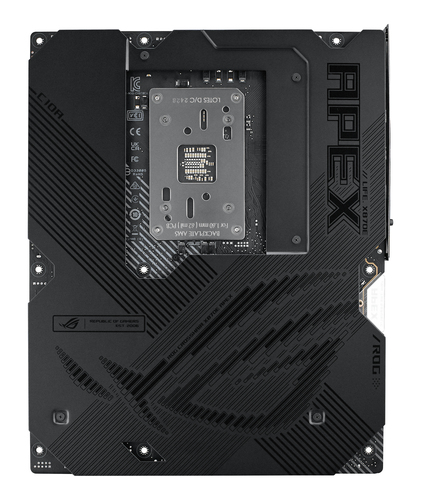

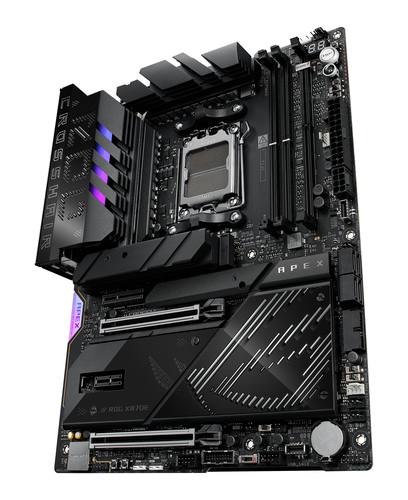

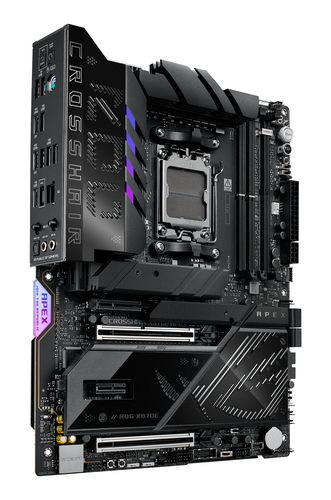

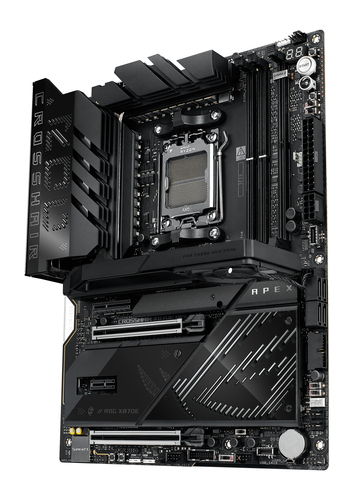

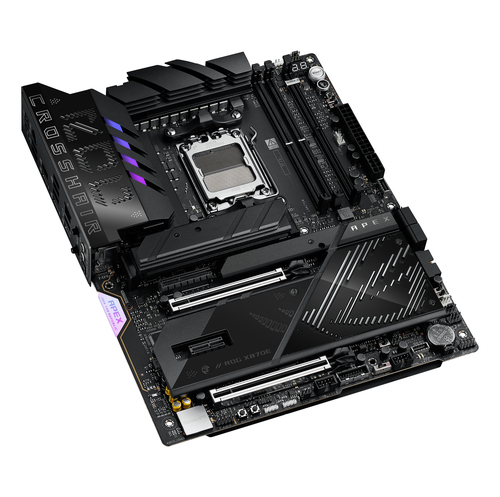

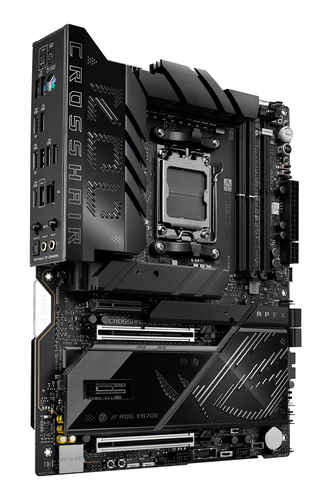

ASUS ROG CROSSHAIR X870E APEX

90MB1KR0-M0EAY0 - 4711387890240

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

Brand: Asus
Product code: 90MB1KR0-M0EAY0
SKU: QR2KCF5MTIV5Z
EAN/GTIN: 4711387890240

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD X870E 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
BIOS type: UEFI AMI 512 Mbit
5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

€679.97 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

ROG CROSSHAIR X870E APEX Gaming AMD AM5 (Ryzen 9000, ATX, PCIe 5.0, DDR 5, WiFi 7, AI Overclocking, PCIe Q-Release, Aura Sync)

ASUS ROG CROSSHAIR X870E APEX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

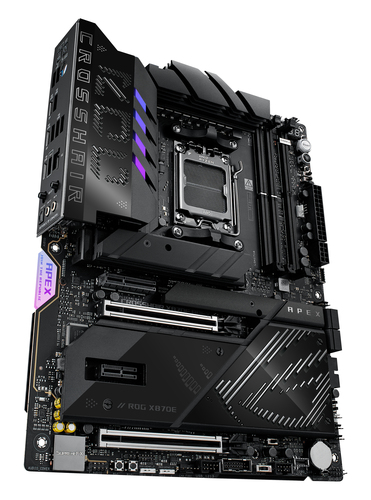

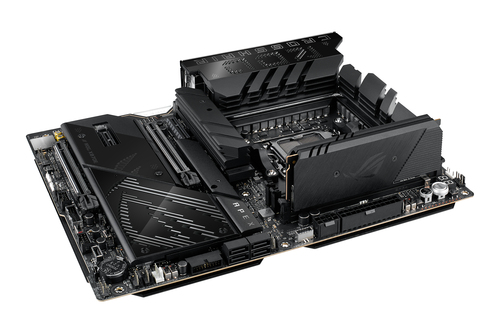

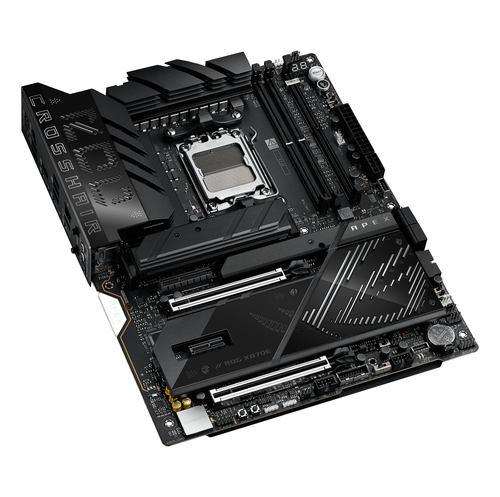

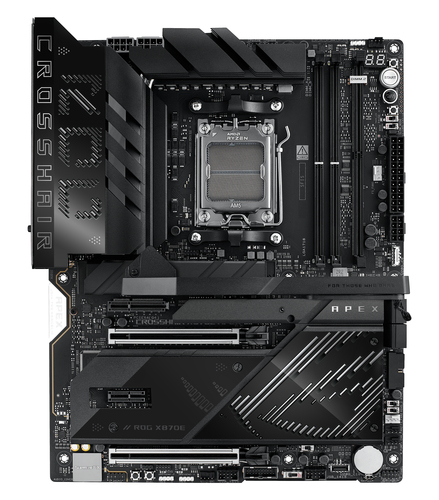

ROG Crosshair X870E APEX

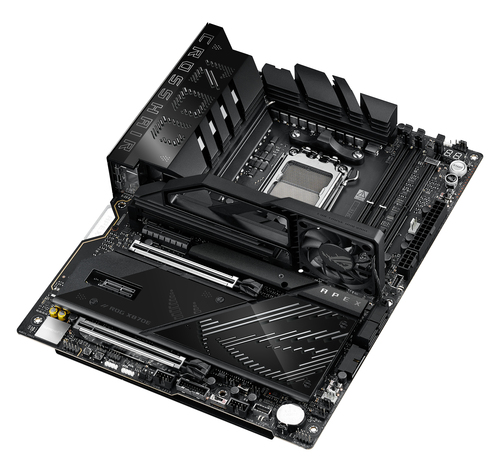

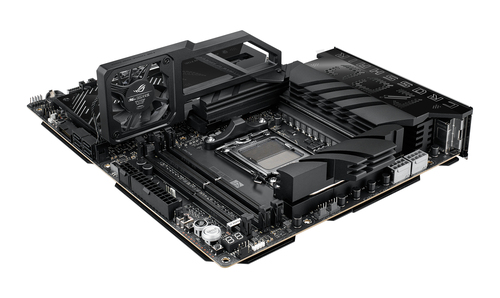

The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets Socket AM5

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 2

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility ECC & Non-ECC

Maximum internal memory 128 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 9

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 2x2 connectors 2

Number of SATA III connectors 4

Front panel audio connector Yes

Front panel connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of chassis fan connectors 2

EPS power connector (8-pin) Yes

12V power connector Yes

RGB LED pin header Yes

Number of RGB LED pin headers 3

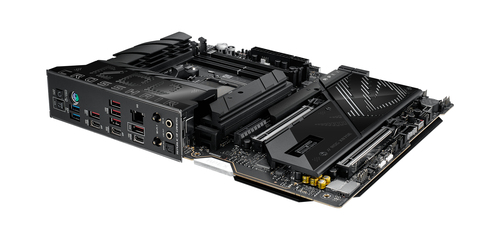

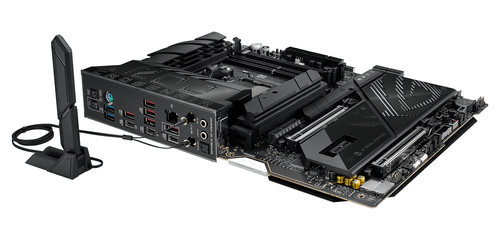

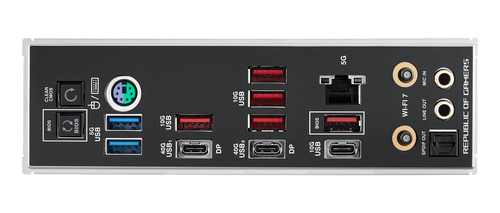

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB4 Gen 3x2 ports quantity 2

Ethernet LAN (RJ-45) ports 1

PS/2 ports quantity 1

S/PDIF out port Yes

WiFi-AP antenna jack 1

Network

Ethernet LAN Yes

Ethernet interface type 5 Gigabit Ethernet

Wi-Fi Yes

Top Wi-Fi standard Wi-Fi 7 (802.11be)

Wi-Fi standards Wi-Fi 7 (802.11be)

Bluetooth Yes

Bluetooth version 5.4

Features

Motherboard chipset AMD X870E

Audio output channels 7.1 channels

Component for PC

Motherboard form factor ATX

Motherboard chipset family AMD

Windows operating systems supported Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots 1

PCI Express x4 (Gen 4.x) slots 1

PCI Express x16 (Gen 4.x) slots 2

PCI Express x16 (Gen 5.x) slots 2

Number of M.2 (M) slots 5

1st M.2 largest key size 2280

1st M.2 highest PCI Express generation 5.0

2nd M.2 largest key size 2280

2nd M.2 highest PCI Express generation 5.0

3rd M.2 largest key size 2280

3rd M.2 highest PCI Express generation 5.0

4th M.2 largest key size 22110

4th M.2 highest PCI Express generation 4.0

5th M.2 largest key size 22110

5th M.2 highest PCI Express generation 4.0

BIOS

BIOS type UEFI AMI

BIOS memory size 512 Mbit

Packaging data

Package width 370 mm

Package depth 312 mm

Package height 108 mm

Package weight 4.16 kg

Weight & dimensions

Width 305 mm

Depth 244 mm

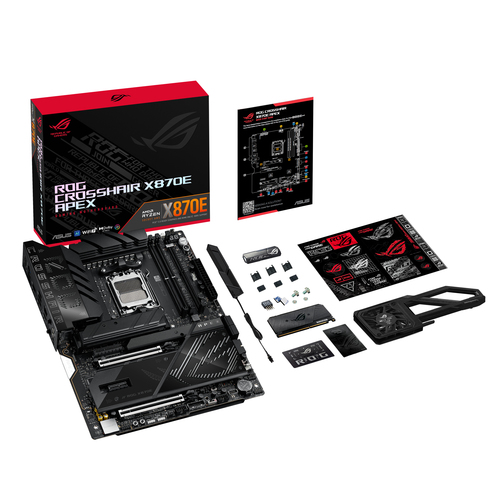

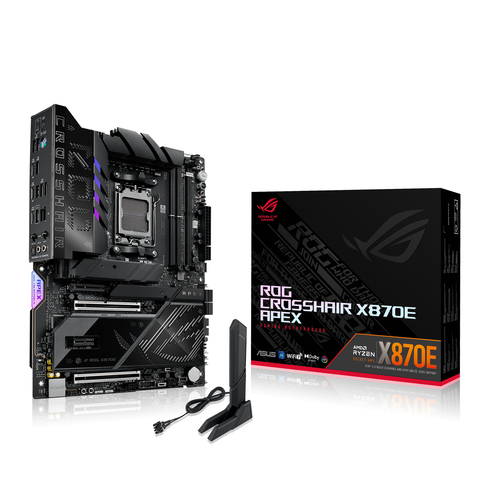

Packaging content

Cables included SATA

Antenna included Yes

Screws included Yes

Drivers included Yes
