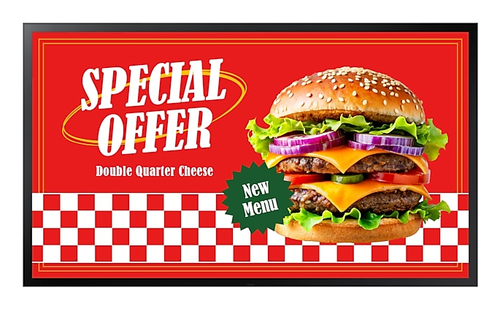

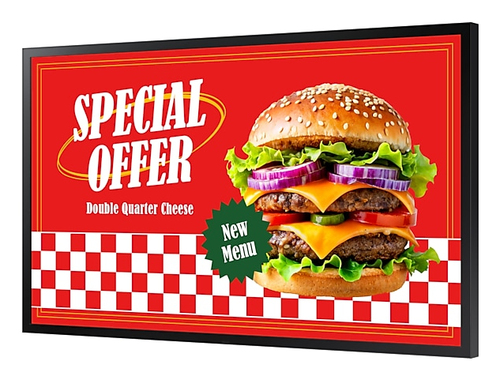

Samsung OHDX
Samsung OH55DX Digital signage flat panel 139.7 cm (55") LCD Wi-Fi 3500 cd/m² Full HD Black Tizen 24/7
- Brand
- Samsung
- Product code
- LH55OHDEBGBXEN
- SKU
- 9090B2IJKYVSY
- Outdoor Black
- 139.7 cm (55") 1920 x 1080 pixels 3500 cd/m²
- 6 ms
- Ethernet LAN Wi-Fi
€5465.03
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| Display | |
|---|---|
| Panel type | VA |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 3500 cd/m² |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 6 ms |
| Contrast ratio (typical) | 6000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.63 x 0.63 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 75 Hz |
| Haze rate | 0% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 72% |

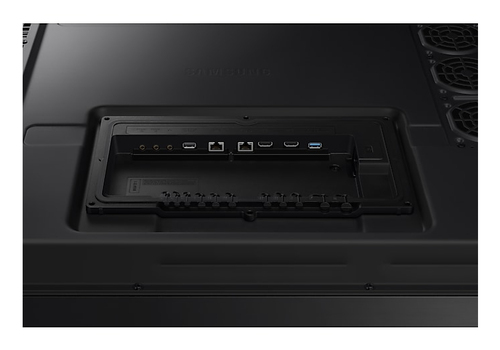

| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| RS-232 interface | Yes |
| HDBaseT input ports | 1 |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Placement supported | Outdoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 1186 x 560 mm |
| Bezel width (bottom) | 2.49 cm |
| Bezel width (side) | 2.49 cm |
| Bezel width (top) | 2.49 cm |
| Bezel colour | Slate Black |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP56 |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) | 580 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system | No |
| Built-in processor | No |
| Operating system installed | Tizen |
| Operating system version | 8.0 |
| Weight & dimensions | |
| Display width | 1260.6 mm |
| Display depth | 69 mm |
| Display height | 731.4 mm |
| Display weight | 36.7 kg |
| Packaging data | |
| Package width | 1398 mm |
| Package depth | 191 mm |
| Package height | 844 mm |
| Package weight | 47.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Technical details | |
| Audio out (mini jack) | 1 |
| Compliance certificates | Electromagnetic Compatibility (EMC) |
| Other features | |
| Display brightness (peak) | 4000 cd/m² |
| Bluetooth | Yes |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
