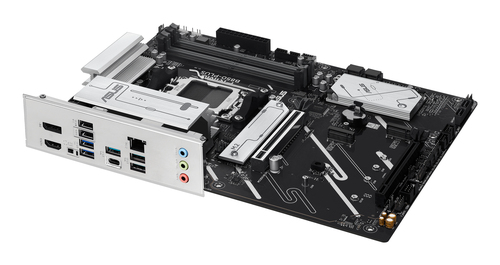

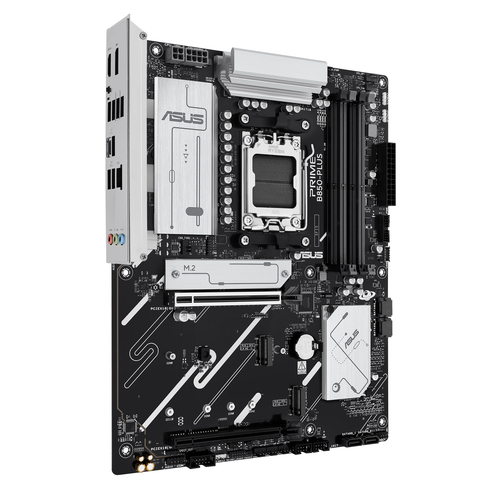

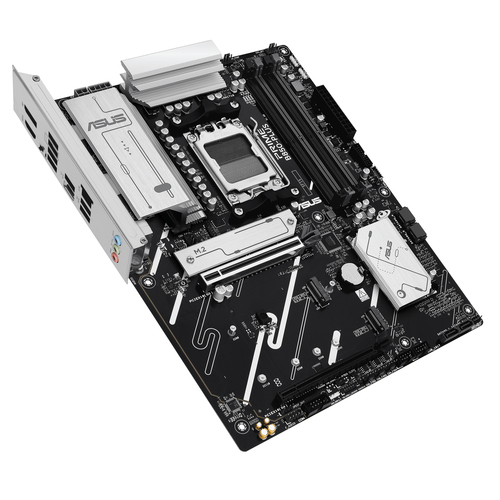

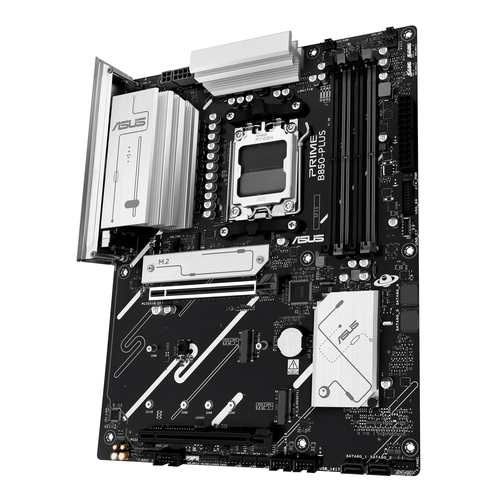

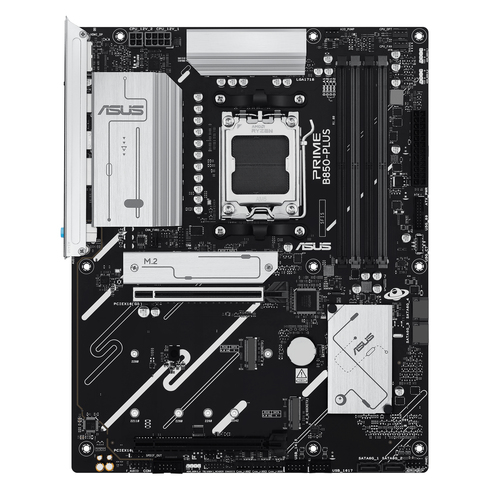

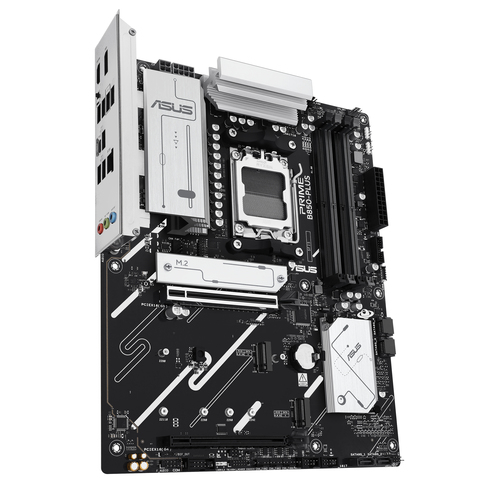

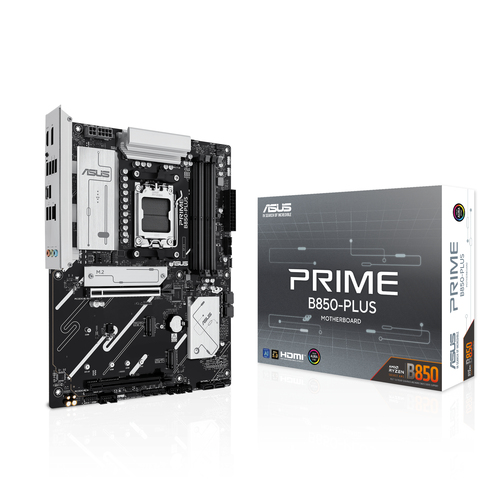

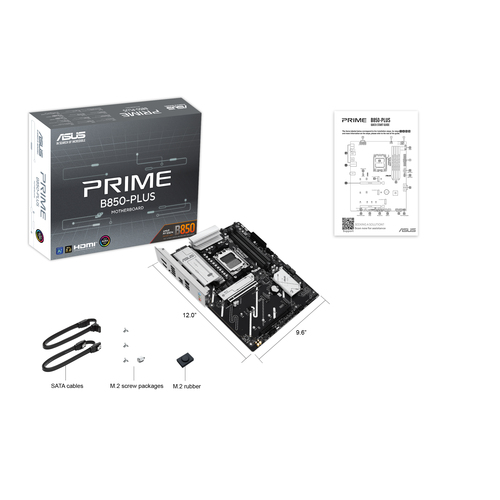

ASUS PRIME B850-PLUS-CSM

90MB1LC0-M0EAYC - 4711387982037

ASUS PRIME B850-PLUS-CSM AMD B850 Socket AM5 ATX

Brand: Asus
Product code: 90MB1LC0-M0EAYC
SKU: XQH5NIVVHZDQF
EAN/GTIN: 4711387982037

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD B850 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet

€208.15 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

AMD B850, AM5, 4 x DIMM slots, max. 256GB DDR5, 256Mb Flash ROM, UEFI AMI BIOS, Realtek 2.5Gb Ethernet, ATX

ASUS PRIME B850-PLUS-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet

Prime B850-PLUS-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Processor

Processor manufacturer AMD

Processor socket Socket AM5

Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types DDR5-SDRAM

Number of memory slots 4

Memory slots type DIMM

Memory channels Dual-channel

ECC сompatibility ECC & Non-ECC

Maximum internal memory 256 GB

Unbuffered memory Yes

Storage controllers

Supported storage drive types HDD & SSD

Supported storage drive interfaces M.2, SATA III

Number of HDDs supported 4

Number of storage drives supported 7

RAID support Yes

RAID levels 0, 1, 5, 10

Graphics

Parallel processing technology support Not supported

Internal I/O

USB 2.0 connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

Number of SATA III connectors 4

S/PDIF out connector Yes

Front panel audio connector Yes

ATX Power connector (24-pin) Yes

CPU fan connector Yes

Number of CPU fan connectors 1

Number of chassis fan connectors 4

Chassis intrusion connector Yes

EPS power connector (8-pin) Yes

Number of COM connectors 1

Thunderbolt headers 1

12V power connector Yes

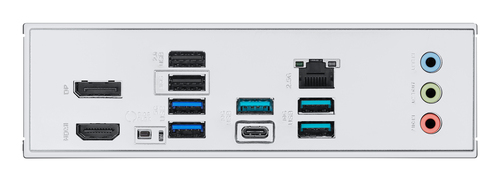

Rear panel I/O ports

USB 2.0 ports quantity 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

Ethernet LAN (RJ-45) ports 1

HDMI ports quantity 1

DisplayPorts quantity 1

Line-in Yes

Microphone in Yes

USB connector type USB Type-A, USB Type-C

Network

Ethernet LAN Yes

Ethernet interface type 2.5 Gigabit Ethernet

Wi-Fi No

Features

Motherboard chipset AMD B850

Audio output channels 7.1 channels

Product colour Multicolour

Component for PC

Motherboard form factor ATX

Motherboard chipset family AMD

Windows operating systems supported Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots 1

Number of M.2 (M) slots 3

BIOS

BIOS type UEFI AMI

BIOS memory size 256 Mbit

Packaging data

Package width 353 mm

Package depth 273 mm

Package height 68 mm

Package weight 1.24 kg

Weight & dimensions

Width 305 mm

Depth 244 mm

Height 48 mm

Other features

Weight 1.03 kg
