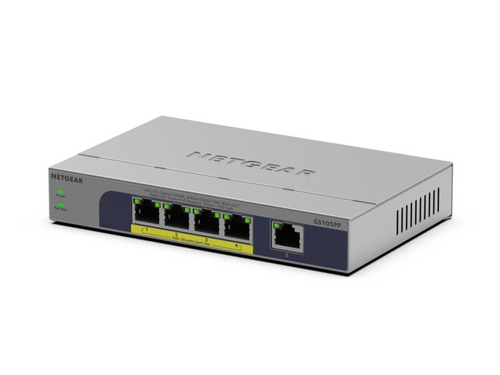

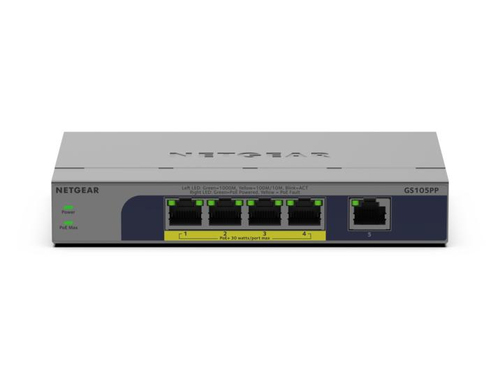

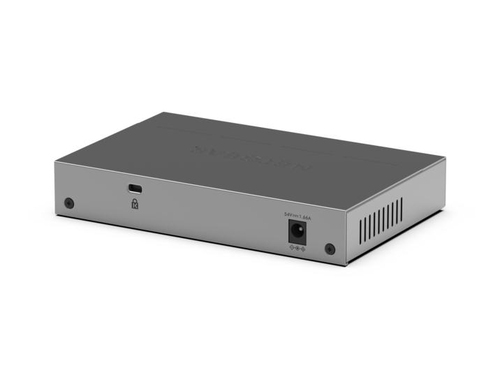

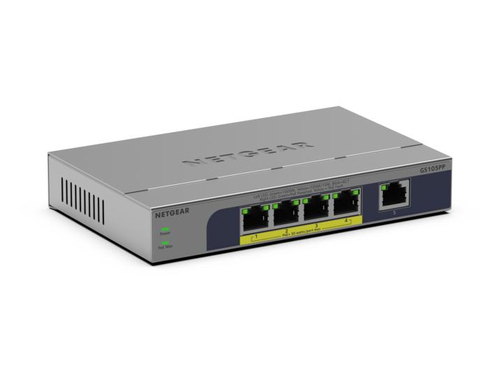

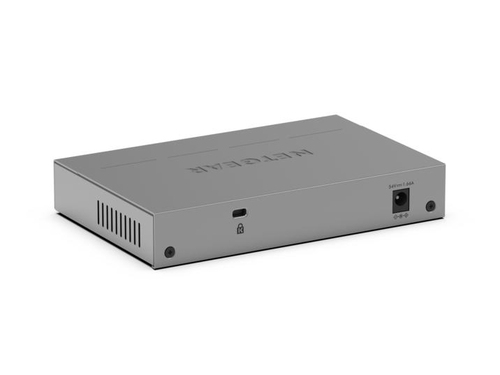

NETGEAR GS105PP
NETGEAR GS105PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Grey
- Brand
- Netgear
- Product code
- GS105PP-300EUS
- SKU
- O8ATFB0XRSXTP
- EAN/GTIN
- 606449174717
- 5 x Gigabit Ethernet ports with PoE+
- Plug and play switch, no management required
- Energy Efficient Ethernet for maximum power savings
- Fanless and silent
- Desktop or wall-mount
€120.12
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
POWER-OVER-ETHERNET
4 PoE+ ports delivering up to 30W per port with a 83W total power budget for wireless APs, IP Cameras, IP Phones and much more.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 4113947 h |
| Power | |
| Power source | AC/DC |
| Power supply included | No |
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (max) | 67.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 83 W |
| Other features | |
| Bandwidth | 10 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 3.24 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 400 g |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC) |
| Certification | CB, CE LVD, CSA |
